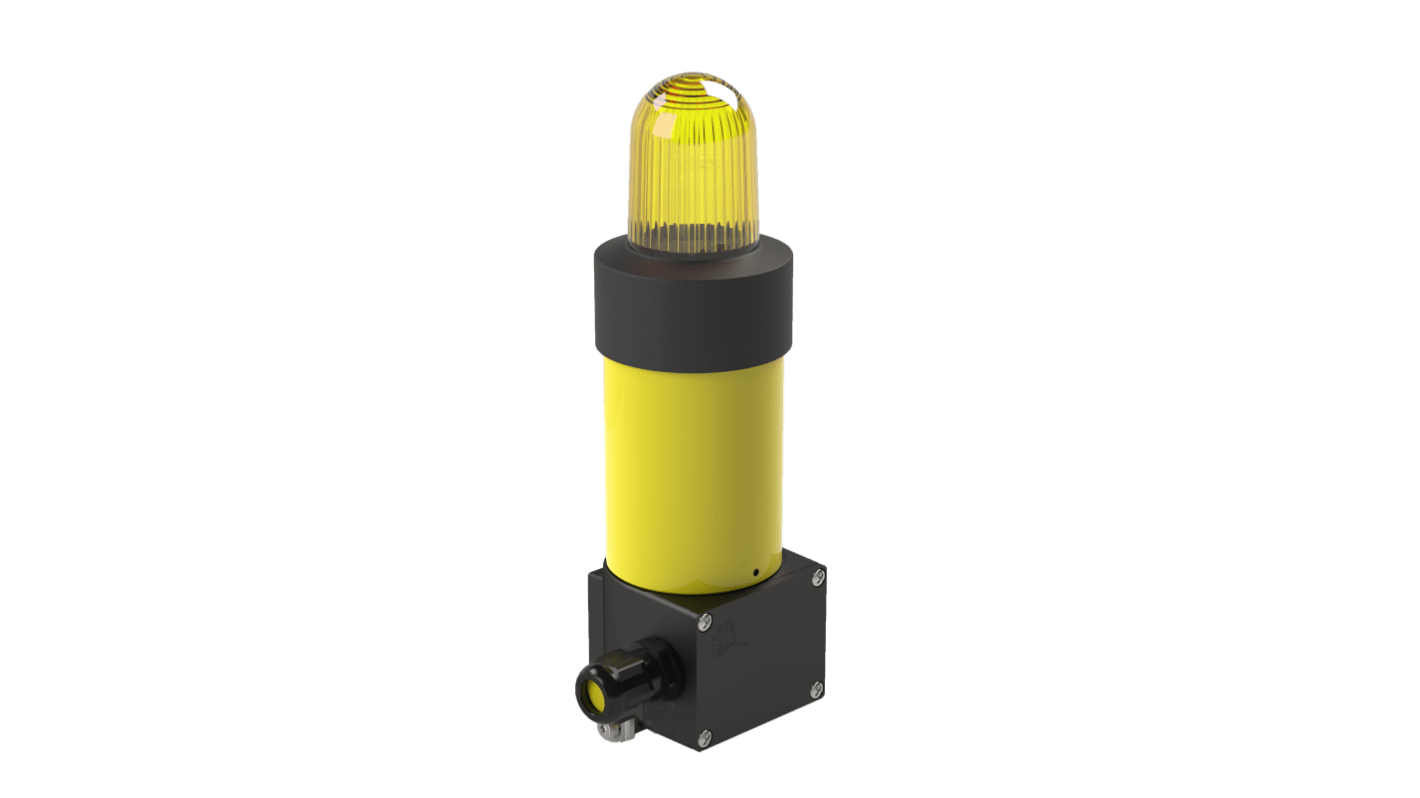

Pfannenberg CWB-ATEX Series Yellow Flashing Effect Signal Tower for Use with BR50, 12 → 48 V ac/dc, 24 →

모든 Signal Tower Components 열람하기

Subtotal (1 unit)*

₩1,861,745.20

Add to Basket
수량 선택 또는 입력
일시적 품절
  • 2026년 2월 02일 부터 배송
더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.
수량
한팩당
1 +₩1,861,745.20

* 참고 가격: 실제 구매가격과 다를 수 있습니다

RS 제품 번호:
461-068
제조사 부품 번호:
31006903000
제조업체:
Pfannenberg
제품 정보를 선택해 유사 제품을 찾기
모두 선택

브랜드

Pfannenberg

Range

Visual Signaling Devices

Series

CWB-ATEX

Component Type

Flashing Light Module

Multifunction

No

Current Type

AC/DC

Light Effect

Flashing

Lens Colour

Yellow

Bulb Type

Xenon

Supply Voltage

12 → 48 V ac/dc, 24 → 42 V ac/dc

For Use With

BR50

IP Rating

IP66

COO (Country of Origin):
DE
The Pfannenberg Flashing lights are explosion-protected equipment, designed to serve as visual alarms in potentially explosive workplaces. The housing is made of aluminum, making it suitable for use in chemical and petrochemical plants, as well as offshore installations.

Explosion-protected flashing light with yellow lens as visual alarm in potentially explosive workplaces in zones 1, 2, 21 and 22
Housing made of aluminium, that means it can be used in all chemical and petrochemical plants as well as offshore plants
The flash tube additionally secured by steel clamp, making it resistant to vibrations and shock
High protection system and stable mechanical construction mean it can be used under the toughest operating conditions.
6 lens colours can be selected: clear, yellow, amber, red, green, blue
Ignition protection type: 'd' pressurized encapsulation for light housing: 'e' increased safety for connection box.
Service life: after 8 million flashes, still 70% light emission
Maximum visibility: 172 m
Dimensions LxWxH: 91 x 82 x 260 mm
Operating temperature (T5): -40C+50C, (T6): -40C+40C
GL approval as standard
Options/accessories: Pipe clamps, fixing brackets, mounting plate, angle bracket stainless-steel
