Festo Shock Absorber, DYSS-12-12-Y1F, 69.5 mm Body Length, 82.5 mm Body Length, 24 mm Body Length, 12 mm Thread Size
- RS 제품 번호:
- 204-0001
- 제조사 부품 번호:
- DYSS-12-12-Y1F
- 제조업체:
- Festo
Subtotal (1 unit)*
₩164,080.00
재고있음
- 추가로 2026년 10월 12일 부터 16 개 단위 배송
- 추가로 2026년 11월 06일 부터 11 개 단위 배송
더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.
수량 | 한팩당 |
|---|---|
| 1 + | ₩164,080.00 |
* 참고 가격: 실제 구매가격과 다를 수 있습니다
- RS 제품 번호:
- 204-0001
- 제조사 부품 번호:
- DYSS-12-12-Y1F
- 제조업체:
- Festo
사양
참조 문서
제정법과 컴플라이언스
제품 세부 사항
제품 정보를 선택해 유사 제품을 찾기
모두 선택 | 제품 정보 | 값 |
|---|---|---|
| 브랜드 | Festo | |
| Thread Size | 12 mm | |
| Product Type | Shock Absorber | |
| Overall Length | 82.5mm | |
| Stroke Length | 24mm | |
| Length | 69.5mm | |
| Series | DYSS | |
| Maximum Energy Capacity Per Hour | 36000J | |
| Maximum Energy Capacity Per Cycle | 10J | |
| Minimum Operating Temperature | -5°C | |
| Standards/Approvals | RoHS | |
| Maximum Operating Temperature | 80°C | |
| Model Number | 8069004 | |
| 모두 선택 | ||
|---|---|---|
브랜드 Festo | ||
Thread Size 12 mm | ||
Product Type Shock Absorber | ||
Overall Length 82.5mm | ||
Stroke Length 24mm | ||
Length 69.5mm | ||
Series DYSS | ||
Maximum Energy Capacity Per Hour 36000J | ||
Maximum Energy Capacity Per Cycle 10J | ||
Minimum Operating Temperature -5°C | ||
Standards/Approvals RoHS | ||
Maximum Operating Temperature 80°C | ||
Model Number 8069004 | ||
- COO (Country of Origin):
- JP

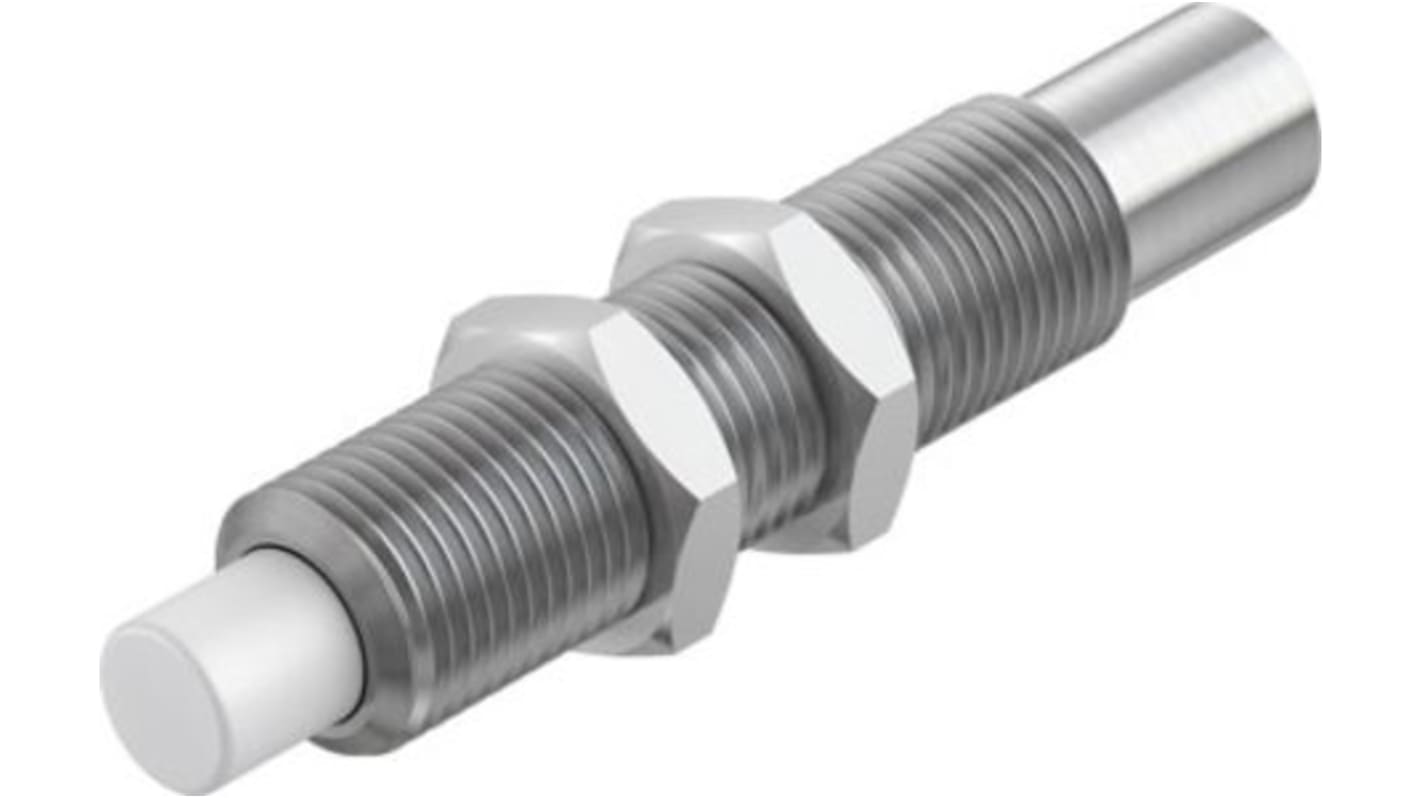

Festo Shock Absorber, 0.05J Maximum Residual Energy, 82g Weight - DYSS-12-12-Y1F
Want to safeguard your machinery from impact and vibration? This shock absorber from Festo softens the blow by slowly and safely stopping a moving load. As the unit's housing and piston rod are made from high alloy steel, it's resistant to corrosion and impact, so you can be sure of its long service life. Thanks to self-adjusting cushioning, it absorbs pressure and friction, resulting in reduced shock and noise. An operating temperature range between -5°C to +80°C means you can rest assured that this trusty piece of kit is suitable for challenging industrial environments.
Features & Benefits
• Quick and easy mounting with lock nut
• Can be assembled in any position for convenient setup
• Short reset time of 0.2 seconds boosts productivity and reduces downtime
• Maximum impact speed of 1.5m/s for reduced wear and tear
Applications
• Suspension systems
• Automation control
• Dispensing and vending machines
• Hydraulic and pneumatic cylinders
What's this shock absorber's maximum stop force?
This device features a maximum stop force of 1000N, so it's suitable for heavy-duty applications.
How much does this device weigh?
This device weighs 82g, so it puts minimum strain on your setup.
