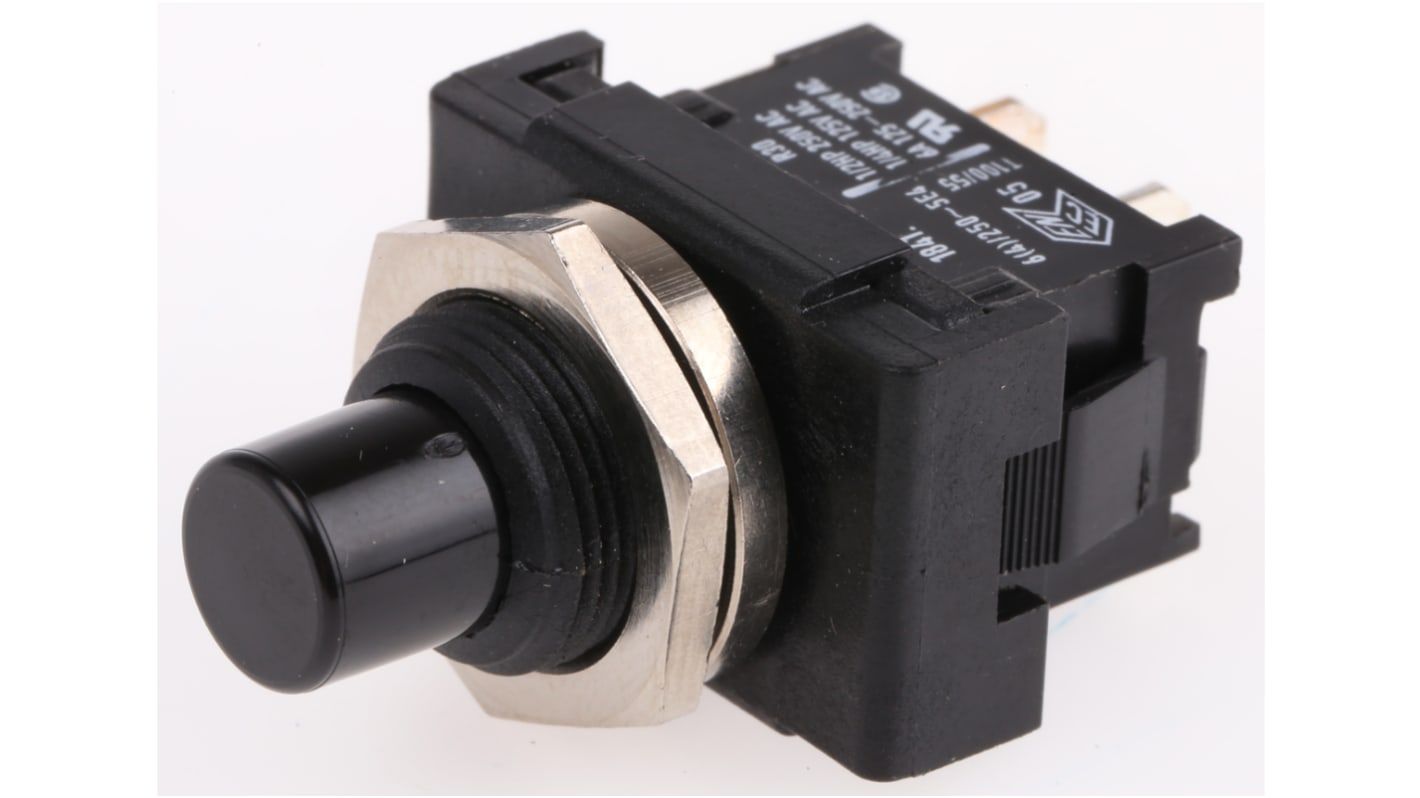

Marquardt Push Button Switch, Latching, Panel, 16.6 x 23.9 mm Cutout, SPST, IP40, 12 V dc 250 V ac
- RS 제품 번호:
- 622-3754
- Distrelec 제품 번호:
- 135-03-726
- 제조사 부품 번호:
- 1841.1101
- 제조업체:
- Marquardt
대량 구매 할인 기용 가능
Subtotal (1 unit)*
₩8,554.00
재고있음
- 추가로 2026년 2월 16일 부터 183 개 단위 배송
더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.
수량 | 한팩당 |
|---|---|
| 1 - 24 | ₩8,554.00 |
| 25 - 99 | ₩8,441.20 |
| 100 - 249 | ₩8,328.40 |
| 250 + | ₩8,272.00 |
* 참고 가격: 실제 구매가격과 다를 수 있습니다
- RS 제품 번호:
- 622-3754
- Distrelec 제품 번호:
- 135-03-726
- 제조사 부품 번호:
- 1841.1101
- 제조업체:
- Marquardt
사양
참조 문서
제정법과 컴플라이언스
제품 세부 사항
제품 정보를 선택해 유사 제품을 찾기
모두 선택 | 제품 정보 | 값 |
|---|---|---|
| 브랜드 | Marquardt | |
| Switch Operation | Latching | |
| Product Type | Push Button Switch | |
| Actuator Colour | Black | |
| Illuminated | No | |
| Panel Cutout Size | 16.6 x 23.9 mm | |
| Mount Type | Panel | |
| Contact Configuration | SPST | |
| Terminal Type | Tab | |
| IP Rating | IP40 | |
| Minimum Operating Temperature | -20°C | |
| Contact DC Voltage | 12V dc | |
| Contact AC Voltage | 250V ac | |
| Actuator Style | Button | |
| Switch Configuration | On-Off | |
| Maximum Operating Temperature | 120°C | |
| Switch Contact Current | 6 A | |
| Standards/Approvals | UL, CSA | |
| 모두 선택 | ||
|---|---|---|
브랜드 Marquardt | ||
Switch Operation Latching | ||
Product Type Push Button Switch | ||
Actuator Colour Black | ||
Illuminated No | ||
Panel Cutout Size 16.6 x 23.9 mm | ||
Mount Type Panel | ||
Contact Configuration SPST | ||
Terminal Type Tab | ||
IP Rating IP40 | ||
Minimum Operating Temperature -20°C | ||
Contact DC Voltage 12V dc | ||
Contact AC Voltage 250V ac | ||
Actuator Style Button | ||
Switch Configuration On-Off | ||
Maximum Operating Temperature 120°C | ||
Switch Contact Current 6 A | ||
Standards/Approvals UL, CSA | ||
- COO (Country of Origin):
- TN
Marquardt 1840 Series Push Button Switches
Marquardt 1840 series single pole push button switches are suitable for use in Class II appliances. The 1840 series of push button switches have silver contacts with SPNC, SPNO, SPST and SPDT switching formats which have high switching capabilities of up to 6A. These Marquardt 1840 push button switches feature 4.8mm Faston/Quick Connect style terminals.
M12x0.75 threaded bush
Contact distance ≥3mm
UL 94 V-2 flammability
Mechanical life 100,000 operations
Marquardt Push Button Switches
Note
The current rating and life expectancy figures quoted are nominal, please see datasheet for further ratings.
Approvals
UL; CSA; ENEC
