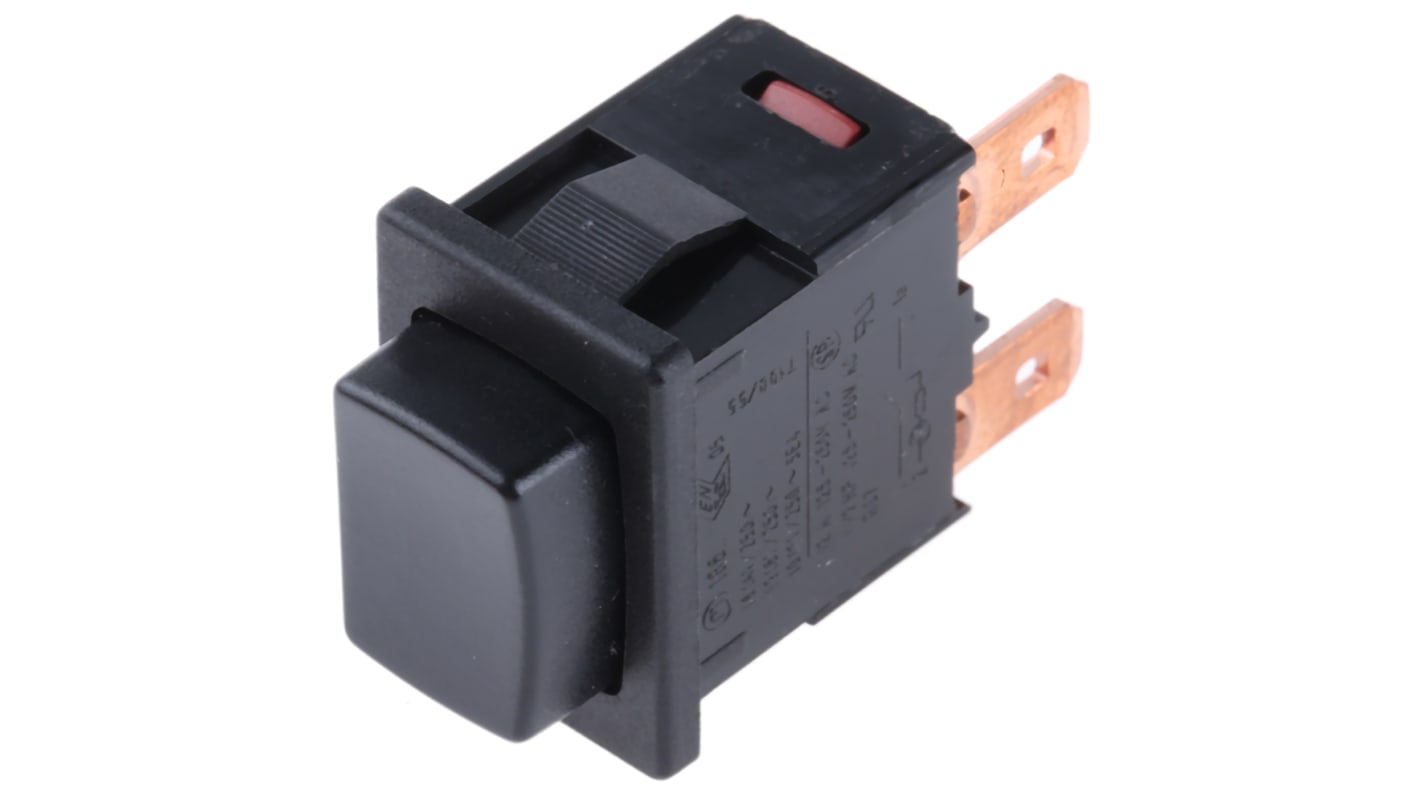

Marquardt Push Button Switch, Panel Mount, SPST, IP40

모든 Push Button Switches 열람하기

Subtotal (1 unit)*

₩5,132.40

Add to Basket
수량 선택 또는 입력
재고있음
  • 25 개 단위 배송 준비 완료
더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.
수량
한팩당
1 +₩5,132.40

* 참고 가격: 실제 구매가격과 다를 수 있습니다

RS 제품 번호:
741-0808
Distrelec 제품 번호:
300-17-039
제조사 부품 번호:
1683.1201
제조업체:
Marquardt
제품 정보를 선택해 유사 제품을 찾기
모두 선택

브랜드

Marquardt

Illuminated

No

Mounting Type

Panel Mount

Push Button Colour

Black

Contact Configuration

Single Pole Single Throw (SPST)

Push Button Style

Rectangular

IP Rating

IP40

Contact Current Rating

16 A @ 250 V ac

Contact Material

Silver

Manufacturer Part No.

1683.1201

Terminal Type

Tab

Panel Cut Out Height

12.9mm

Panel Cut Out Width

19.8mm

COO (Country of Origin):
TN

Marquardt 1683 Series Push Button Switches


Marquardt 1683 series single and double pole push button switches. The 1683 push button switches are suitable for use in Class II appliances and are available with non illuminated or illuminated (red or green) 230Vac neon actuators. The Marquardt 1683 push button switches have silver contacts with SPNO, SPST, DPST and DPNO switching formats which have high switching capabilities of up to 16A. These Marquardt push button switches feature 4.8mm Faston/Quick Connect style terminals.

High current rating, up to 16A
UL 94 flammability (actuator: V-0, socket: V-1, housing: V-2)
Mechanical life 100,000 operations

Note

The current rating and life expectancy figures quoted are nominal, please see datasheet for further ratings.

Approvals

UL; CSA; ENEC
