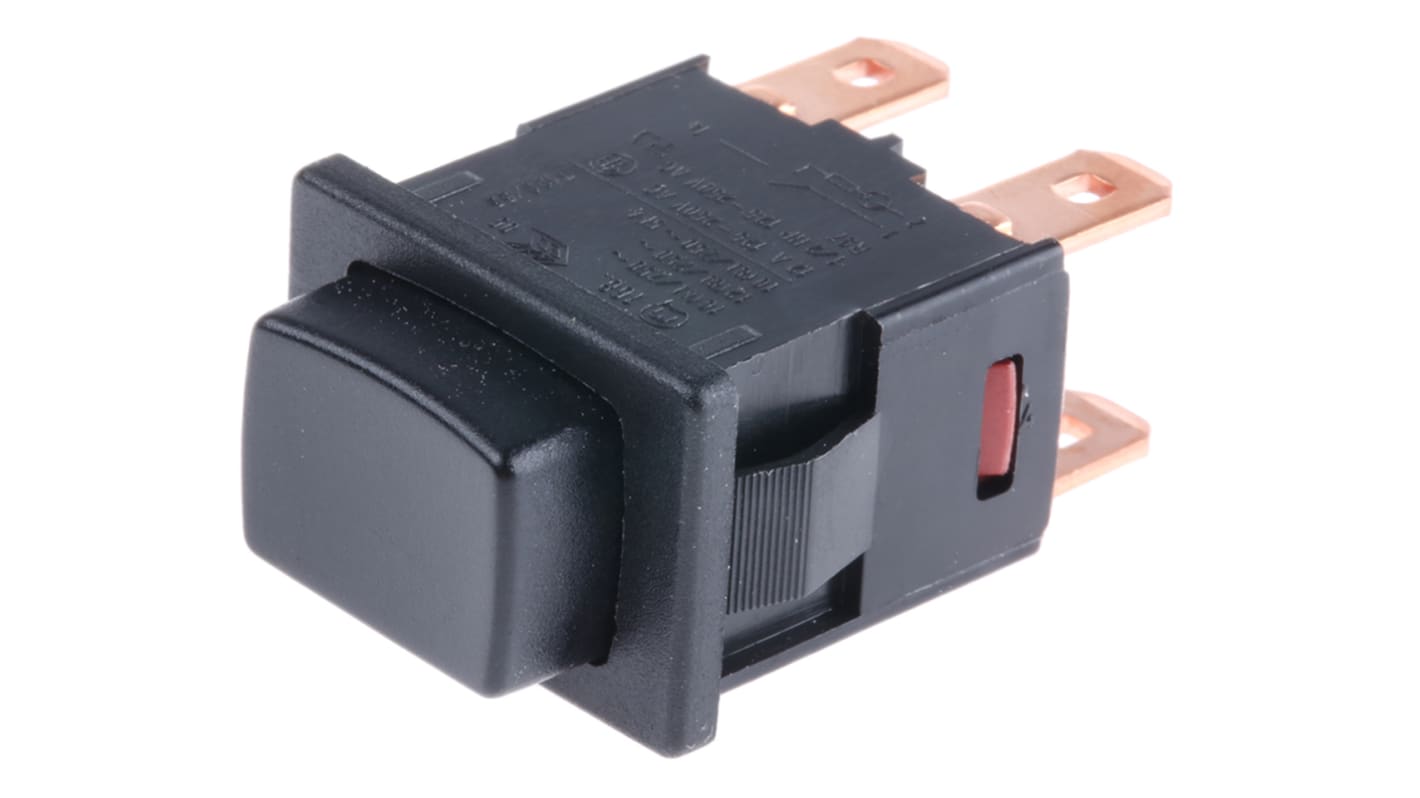

Marquardt 1683 Series Push Button Switch, Latching, Panel, 12.9 x 19.2 mm Cutout, DPDT, IP67 250 V ac
- RS 제품 번호:
- 472-1818
- 제조사 부품 번호:
- 1684.1101
- 제조업체:
- Marquardt
대량 구매 할인 기용 가능
Subtotal (1 unit)*
₩7,313.20
재고있음
- 407 개 단위 배송 준비 완료
더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.
수량 | 한팩당 |
|---|---|
| 1 - 24 | ₩7,313.20 |
| 25 - 99 | ₩7,087.60 |
| 100 - 249 | ₩6,880.80 |
| 250 + | ₩6,655.20 |
* 참고 가격: 실제 구매가격과 다를 수 있습니다
- RS 제품 번호:
- 472-1818
- 제조사 부품 번호:
- 1684.1101
- 제조업체:
- Marquardt
사양
참조 문서
제정법과 컴플라이언스
제품 세부 사항
제품 정보를 선택해 유사 제품을 찾기
모두 선택 | 제품 정보 | 값 |
|---|---|---|
| 브랜드 | Marquardt | |
| Switch Operation | Latching | |
| Actuator Colour | Black | |
| Product Type | Push Button Switch | |
| Illuminated | No | |
| Series | 1683 | |
| Panel Cutout Size | 12.9 x 19.2 mm | |
| Mount Type | Panel | |
| Contact Configuration | DPDT | |
| Terminal Type | Tab | |
| IP Rating | IP67 | |
| Contact AC Voltage | 250V ac | |
| Actuator Style | Button | |
| Minimum Operating Temperature | -20°C | |
| Maximum Operating Temperature | 120°C | |
| Switch Configuration | On-Off | |
| Standards/Approvals | UL, CSA | |
| Switch Contact Current | 16 A | |
| Width | 12.9 mm | |
| 모두 선택 | ||
|---|---|---|
브랜드 Marquardt | ||
Switch Operation Latching | ||
Actuator Colour Black | ||
Product Type Push Button Switch | ||
Illuminated No | ||
Series 1683 | ||
Panel Cutout Size 12.9 x 19.2 mm | ||
Mount Type Panel | ||
Contact Configuration DPDT | ||
Terminal Type Tab | ||
IP Rating IP67 | ||
Contact AC Voltage 250V ac | ||
Actuator Style Button | ||
Minimum Operating Temperature -20°C | ||
Maximum Operating Temperature 120°C | ||
Switch Configuration On-Off | ||
Standards/Approvals UL, CSA | ||
Switch Contact Current 16 A | ||
Width 12.9 mm | ||
- COO (Country of Origin):
- TN
Marquardt 1683 Series Push Button Switches
Marquardt 1683 series single and double pole push button switches. The 1683 push button switches are suitable for use in Class II appliances and are available with non illuminated or illuminated (red or green) 230Vac neon actuators. The Marquardt 1683 push button switches have silver contacts with SPNO, SPST, DPST and DPNO switching formats which have high switching capabilities of up to 16A. These Marquardt push button switches feature 4.8mm Faston/Quick Connect style terminals.
High current rating, up to 16A
UL 94 flammability (actuator: V-0, socket: V-1, housing: V-2)
Mechanical life 100,000 operations
Marquardt Push Button Switches
Note
The current rating and life expectancy figures quoted are nominal, please see datasheet for further ratings.
Approvals
UL; CSA; ENEC
