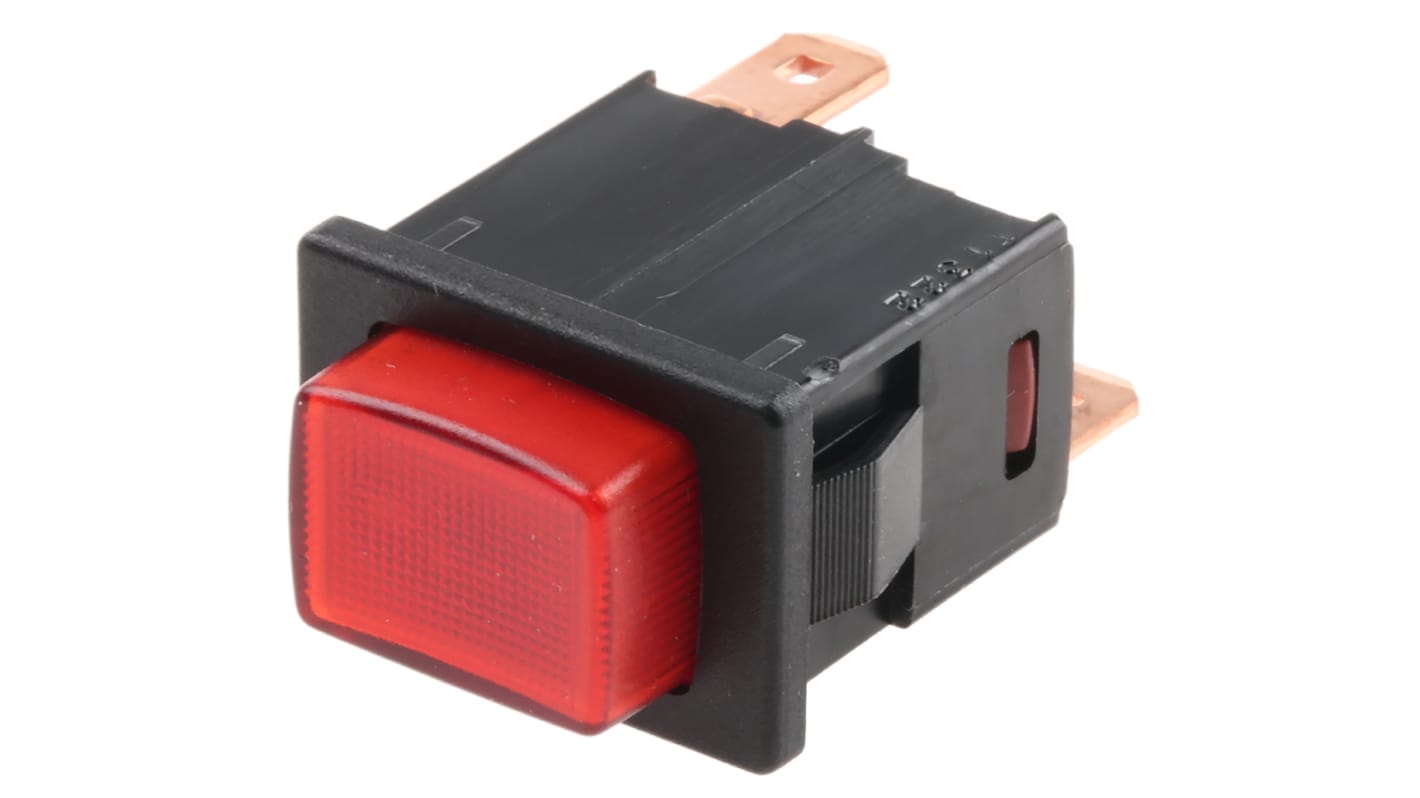

Marquardt Illuminated Push Button Switch, Latching, Panel Mount, SPST, 250V ac
- RS 제품 번호:
- 607-7337
- 제조사 부품 번호:
- 1686.1101
- 제조업체:
- Marquardt
대량 구매 할인 기용 가능
Subtotal (1 unit)*
₩6,805.60
재고있음
- 79 개 단위 배송 준비 완료
- 추가로 2025년 12월 17일 부터 1 개 단위 배송
더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.
수량 | 한팩당 |
|---|---|
| 1 - 49 | ₩6,805.60 |
| 50 - 99 | ₩6,598.80 |
| 100 - 249 | ₩6,392.00 |
| 250 + | ₩6,204.00 |
* 참고 가격: 실제 구매가격과 다를 수 있습니다
- RS 제품 번호:
- 607-7337
- 제조사 부품 번호:
- 1686.1101
- 제조업체:
- Marquardt
사양
참조 문서
제정법과 컴플라이언스
제품 세부 사항
제품 정보를 선택해 유사 제품을 찾기
모두 선택 | 제품 정보 | 값 |
|---|---|---|
| 브랜드 | Marquardt | |
| Switch Operation | Latching | |
| Illuminated | Yes | |
| Mounting Type | Panel Mount | |
| Push Button Colour | Red | |
| Contact Configuration | Single Pole Single Throw (SPST) | |
| Voltage Rating | 250V ac | |
| Push Button Style | Rectangular | |
| Contact Current Rating | 16 A @ 250 V ac | |
| Manufacturer Part No. | 1686.1101 | |
| Terminal Type | Tab | |
| 모두 선택 | ||
|---|---|---|
브랜드 Marquardt | ||
Switch Operation Latching | ||
Illuminated Yes | ||
Mounting Type Panel Mount | ||
Push Button Colour Red | ||
Contact Configuration Single Pole Single Throw (SPST) | ||
Voltage Rating 250V ac | ||
Push Button Style Rectangular | ||
Contact Current Rating 16 A @ 250 V ac | ||
Manufacturer Part No. 1686.1101 | ||
Terminal Type Tab | ||
- COO (Country of Origin):
- TN
Marquardt 1683 Series Push Button Switches
Marquardt 1683 series single and double pole push button switches. The 1683 push button switches are suitable for use in Class II appliances and are available with non illuminated or illuminated (red or green) 230Vac neon actuators. The Marquardt 1683 push button switches have silver contacts with SPNO, SPST, DPST and DPNO switching formats which have high switching capabilities of up to 16A. These Marquardt push button switches feature 4.8mm Faston/Quick Connect style terminals.
High current rating, up to 16A
UL 94 flammability (actuator: V-0, socket: V-1, housing: V-2)
Mechanical life 100,000 operations
UL 94 flammability (actuator: V-0, socket: V-1, housing: V-2)
Mechanical life 100,000 operations
Note
The current rating and life expectancy figures quoted are nominal, please see datasheet for further ratings.
Approvals
UL; CSA; ENEC
Marquardt Push Button Switches
