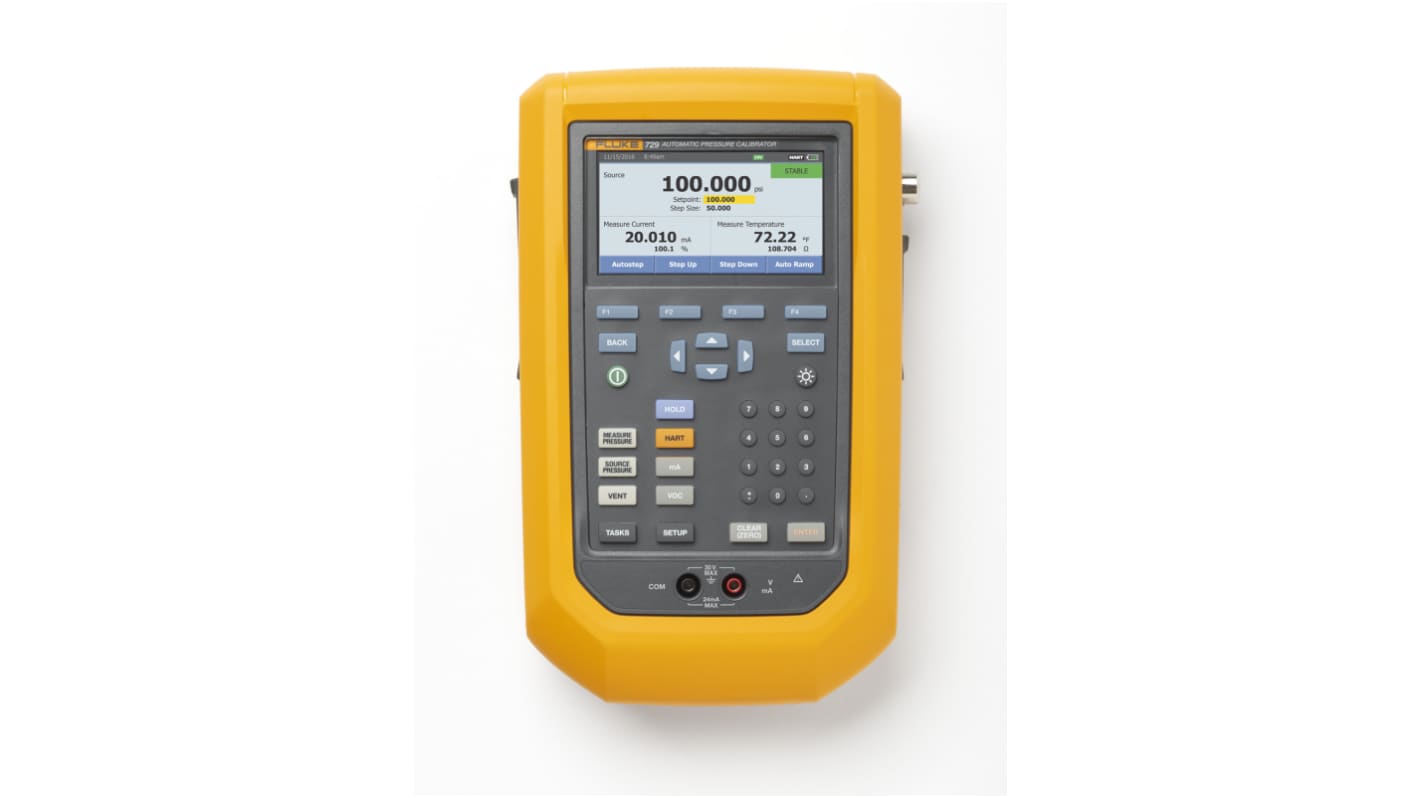

Fluke 0 psi to 30 psi Pressure Indicator

RS 제품 번호:: 533-896
제조사 부품 번호:: FLK-PMM-200KA
제조업체:: Fluke

Fluke 0 psi to 30 psi Pressure Indicator

본 이미지는 참조용이오니 재확인이 필요하시면 문의해주세요.

Subtotal (1 unit)*

₩4,748,700.00

1 개 단위 배송 준비 완료

더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.

수량	한팩당
1 +	₩4,748,700.00

* 참고 가격: 실제 구매가격과 다를 수 있습니다

RS 제품 번호:: 533-896
제조사 부품 번호:: FLK-PMM-200KA
제조업체:: Fluke

참조 문서

제정법과 컴플라이언스

제품 세부 사항

제품 정보를 선택해 유사 제품을 찾기

모두 선택	제품 정보	값
	브랜드	Fluke
	Product Type	Pressure Indicator
	Maximum Pressure Measurement	30psi
	Battery Type	Rechargeable Lithium-ion
	Minimum Pressure Measurement	0psi
	Resolution	0.01 psi
	Pressure Port Type	Absolute
	Data Logging	No
	Current Loop Measurement	Yes
	Display Type	Graphic Colour
	Leak Testing	Yes
	Power Source	Lithium-ion Battery
	Weight	4.9kg
	Minimum Operating Temperature	-10°C
	Maximum Operating Temperature	50°C
	Height	290mm
	Standards/Approvals	UN 38.3, General IEC 610101, Pollution degree 2, Lithium battery IEC 62133
	Length	10mm
	Width	215mm
	Hazardous Area Certification	IEC 62133
	Plug Type	Type A

	모두 선택
	브랜드 Fluke
	Product Type Pressure Indicator
	Maximum Pressure Measurement 30psi
	Battery Type Rechargeable Lithium-ion
	Minimum Pressure Measurement 0psi
	Resolution 0.01 psi
	Pressure Port Type Absolute
	Data Logging No
	Current Loop Measurement Yes
	Display Type Graphic Colour
	Leak Testing Yes
	Power Source Lithium-ion Battery
	Weight 4.9kg
	Minimum Operating Temperature -10°C
	Maximum Operating Temperature 50°C
	Height 290mm
	Standards/Approvals UN 38.3, General IEC 610101, Pollution degree 2, Lithium battery IEC 62133
	Length 10mm
	Width 215mm
	Hazardous Area Certification IEC 62133
	Plug Type Type A

Datasheet - FLK-PMM-200KA

COO (Country of Origin):: CN

Fluke Pressure Module, 30 psi Maximum Pressure, 0.0001 psi Resolution - FLK-PMM-200KA

This pressure module is a portable absolute pressure tester designed to measure low-pressure systems up to 30 psi in field and workshop environments. It combines a colour graphic display with rechargeable battery power to support leak testing and current loop pressure measurement, facilitating on-site verification and diagnostics where mobility and precision are required.

Features and Benefits:

• Resolution 0.0001 psi for detecting very small pressure changes
• Rechargeable lithium-ion pressure tester for extended field use
• Absolute pressure module Fluke design supports true-zero referencing
• Portable leak testing module 30 psi enables rapid leak checks
• Current loop pressure measurement module offers transmitter compatibility
• IEC62133 lithium battery certified pressure device for battery safety

Applications

• Suitable for servicing pneumatic control systems requiring absolute readings
• Ideal for performing routine leak detection on compressed-air installations
• Used with pressure transmitters for current loop calibration and checks
• Can be used for mobile diagnostics in maintenance and calibration tasks
• Used for pressure verification in laboratory test setups under 30 psi

What transport approvals apply for shipping this device?

It meets UN38.3 requirements for lithium battery transport, allowing compliant shipment.

How does the display assist in field measurements?

The graphic colour display provides clear visualisation of pressure readings and status information for rapid interpretation.

What environmental range can I expect during operation?

The unit operates between -10 °C and 50 °C to accommodate typical field temperature conditions.

What is the device mass for handling and portability considerations?

It weighs 4.9 kg, enabling handheld use while remaining stable during connection to test points.
