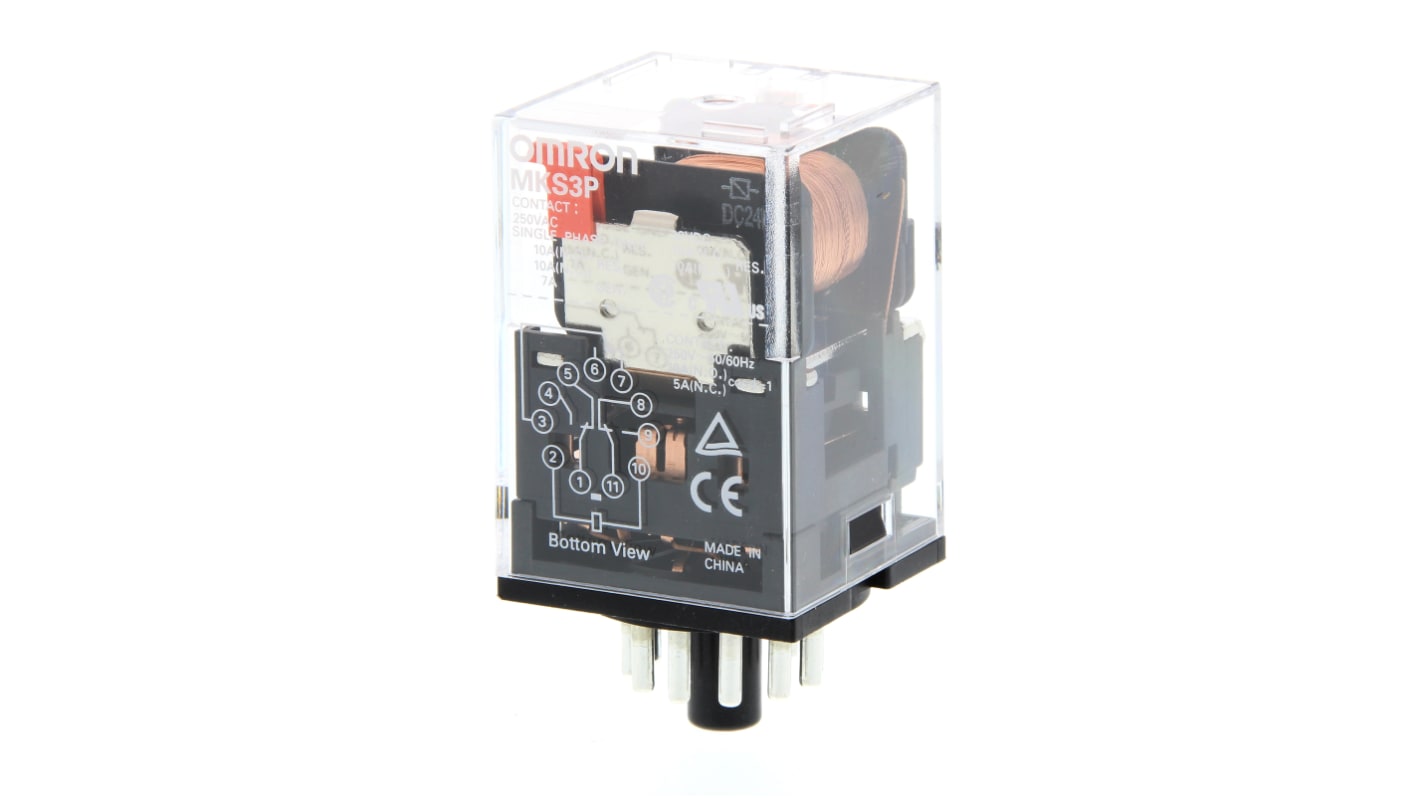

Omron Relay, 24V dc Coil, 10A Switching Current, 3PDT

RS 제품 번호:: 214-7237
제조사 부품 번호:: MKS3P 24VDC
제조업체:: Omron

Omron Relay, 24V dc Coil, 10A Switching Current, 3PDT

Subtotal (1 unit)*

₩33,760.00

일시적 품절

2026년 9월 01일 부터 35 개 단위 배송

더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.

수량	한팩당
1 +	₩33,760.00

* 참고 가격: 실제 구매가격과 다를 수 있습니다

RS 제품 번호:: 214-7237
제조사 부품 번호:: MKS3P 24VDC
제조업체:: Omron

참조 문서

제정법과 컴플라이언스

제품 세부 사항

제품 정보를 선택해 유사 제품을 찾기

모두 선택	제품 정보	값
	브랜드	Omron
	Product Type	Relay
	Coil Voltage	24V dc
	Contact Configuration	3PDT
	Series	MKS3
	Terminal Type	Plug-In
	Switching Current	10A
	Switching AC Voltage	250V ac
	Switching Power	150W
	Switching DC Voltage	250V dc
	Minimum Operating Temperature	-40°C
	Maximum Operating Temperature	60°C
	Coil Resistance	430Ω
	Width	34.5mm
	Standards/Approvals	UL, RoHS, IEC
	Length	52.5mm
	Height	34.5mm
	Coil Power	2.3W
	Contact Material	Silver Alloy
	Contact Resistance	100mΩ

	모두 선택
	브랜드 Omron
	Product Type Relay
	Coil Voltage 24V dc
	Contact Configuration 3PDT
	Series MKS3
	Terminal Type Plug-In
	Switching Current 10A
	Switching AC Voltage 250V ac
	Switching Power 150W
	Switching DC Voltage 250V dc
	Minimum Operating Temperature -40°C
	Maximum Operating Temperature 60°C
	Coil Resistance 430Ω
	Width 34.5mm
	Standards/Approvals UL, RoHS, IEC
	Length 52.5mm
	Height 34.5mm
	Coil Power 2.3W
	Contact Material Silver Alloy
	Contact Resistance 100mΩ

Datasheet-MKS3P 24VDC

Omron MKS3 Series Relay, 3PDT Contact Configuration, 24V DC Coil Voltage - MKS3P DC24

This relay is a plug-in device designed for general-purpose applications within automation and control systems. With a 3PDT contact configuration, it operates on a coil voltage of 24V dc. The compact design facilitates installation across various setups, ensuring efficient signal control and switching.

Features & Benefits

• Mechanical indicator enhances visibility of contact operation

• Dual operating modes support effective circuit checks

• Composed of RoHS compliant materials for safe installation

• Certified by UL and IEC for assured performance

• Functions optimally in temperatures from -40 to +60°C

• Coil resistance of 430Ω optimises energy consumption

Applications

• Suitable for automation systems requiring efficient circuit control

• Ideal for electrical panel needing dependable switching

• Applicable in machinery and industrial equipment

• Effective in sequential relay operations for safety systems

Can it operate in extreme temperatures?

Yes, it operates effectively between -40°C and +60°C.

Will it provide reliable circuit operation?

Yes, it includes a mechanical indicator for visibility.

Is it suitable for use in industrial applications?

Yes, it is designed for various general-purpose industrial uses.

Can it handle different contact configurations?

Yes, it utilises a 3PDT contact configuration for flexibility.

Is it easy to install in existing systems?

Yes, its plug-in design simplifies installation and integration.
