STMicroelectronics LSM6DSO32X Adapter Board for a Standard DIL 24 socket for X-NUCLEO-IKS02A1 Expansion Boards for
- RS 제품 번호:
- 225-0004
- 제조사 부품 번호:
- STEVAL-MKI221V1
- 제조업체:
- STMicroelectronics
대량 구매 할인 기용 가능
View bulk pricing optionsSubtotal (1 unit)*
₩40,920.00
일시적 품절
- 9 개 단위 배송 준비 완료
더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.
수량 | 한팩당 |
|---|---|
| 1 - 4 | ₩40,920.00 |
| 5 - 9 | ₩40,100.00 |
| 10 + | ₩39,300.00 |
* 참고 가격: 실제 구매가격과 다를 수 있습니다
- RS 제품 번호:
- 225-0004
- 제조사 부품 번호:
- STEVAL-MKI221V1
- 제조업체:
- STMicroelectronics
사양
참조 문서
제정법과 컴플라이언스
제품 세부 사항
제품 정보를 선택해 유사 제품을 찾기
모두 선택 | 제품 정보 | 값 |
|---|---|---|
| 브랜드 | STMicroelectronics | |
| Product Type | Evaluation Board | |
| For Use With | X-NUCLEO-IKS01A2, X-NUCLEOIKS01A3 and X-NUCLEO-IKS02A1 Expansion Boards | |
| Kit Classification | Adapter Board | |
| Featured Device | X-NUCLEO-IKS02A1 Expansion Boards | |
| Kit Name | LSM6DSO32X Adapter Board for a Standard DIL 24 socket | |
| Standards/Approvals | RoHS | |
| 모두 선택 | ||
|---|---|---|
브랜드 STMicroelectronics | ||
Product Type Evaluation Board | ||
For Use With X-NUCLEO-IKS01A2, X-NUCLEOIKS01A3 and X-NUCLEO-IKS02A1 Expansion Boards | ||
Kit Classification Adapter Board | ||
Featured Device X-NUCLEO-IKS02A1 Expansion Boards | ||
Kit Name LSM6DSO32X Adapter Board for a Standard DIL 24 socket | ||
Standards/Approvals RoHS | ||

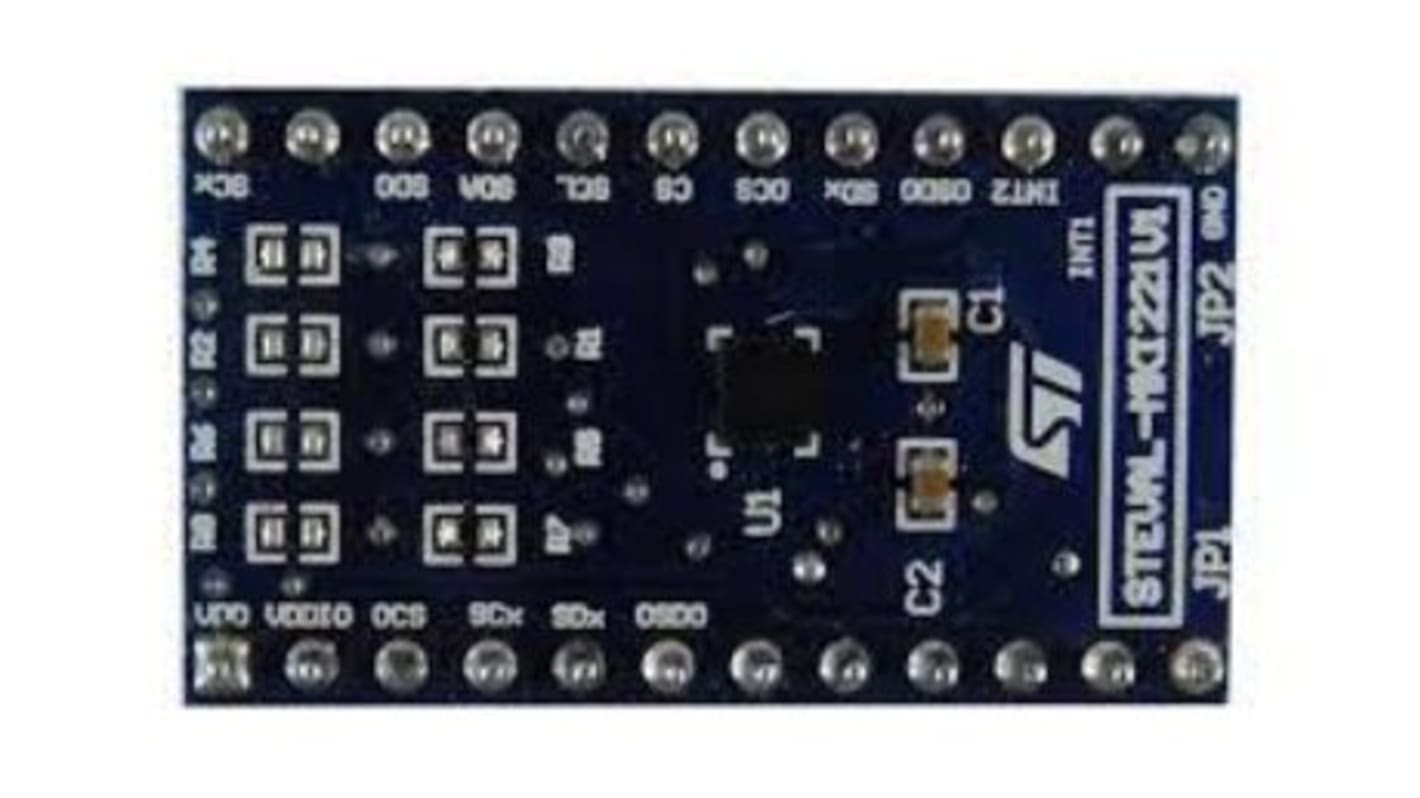

The STMicroelectronics STEVAL-MKI221V1 is an adapter board which allows evaluation of MEMS devices inside the LSM6DSO32X product family. The board offers an effective solution for fast system prototyping and device evaluation directly within the user’s application. The STEVAL-MKI221V1 can be plugged into a standard DIL 24 socket. The adapter provides the complete LSM6DSO32X pin-out and comes ready-to-use with the required decoupling capacitors on the VDD power supply line. This adapter is supported by the STEVAL-MKI109V3 motherboard.
Complete LSM6DSO32X pin-out for a standard DIL 24 socket
Fully compatible with STEVAL-MKI109V3 motherboard
Compatible with STEVAL-MKI109V2 by changing resistor settings
RoHS compliant
