Festo MS series 5 μm 1/2 in 20 bar Pneumatic Filter 3200L/min max with Manual drain
- RS 제품 번호:
- 202-3322
- 제조사 부품 번호:
- MS6-LF-1/2-CRM
- 제조업체:
- Festo
Subtotal (1 unit)*
₩95,880.00
재고있음
- 8 개 단위 배송 준비 완료
- 추가로 2026년 10월 30일 부터 8 개 단위 배송
더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.
수량 | 한팩당 |
|---|---|
| 1 + | ₩95,880.00 |
* 참고 가격: 실제 구매가격과 다를 수 있습니다
- RS 제품 번호:
- 202-3322
- 제조사 부품 번호:
- MS6-LF-1/2-CRM
- 제조업체:
- Festo
사양
참조 문서
제정법과 컴플라이언스
제품 세부 사항
제품 정보를 선택해 유사 제품을 찾기
모두 선택 | 제품 정보 | 값 |
|---|---|---|
| 브랜드 | Festo | |
| Product Type | Pneumatic Filter | |
| Filtration Size | 5μm | |
| Port Size | 1/2 in | |
| Drain Type | Manual | |
| Series | MS | |
| Seal Material | Nitrile Rubber (NBR) | |
| Maximum Flow Rate | 3200L/min | |
| Maximum Operating Pressure | 20 bar | |
| Minimum Operating Temperature | -10°C | |
| Maximum Operating Temperature | 60°C | |
| Standards/Approvals | ISO 8573-1:2010 (6:8:4), RoHS | |
| Filter Type | Air Filter | |
| Model Number | 529607 | |
| Bowl Material | Plastic | |
| 모두 선택 | ||
|---|---|---|
브랜드 Festo | ||
Product Type Pneumatic Filter | ||
Filtration Size 5μm | ||
Port Size 1/2 in | ||
Drain Type Manual | ||
Series MS | ||
Seal Material Nitrile Rubber (NBR) | ||
Maximum Flow Rate 3200L/min | ||
Maximum Operating Pressure 20 bar | ||
Minimum Operating Temperature -10°C | ||
Maximum Operating Temperature 60°C | ||
Standards/Approvals ISO 8573-1:2010 (6:8:4), RoHS | ||
Filter Type Air Filter | ||
Model Number 529607 | ||
Bowl Material Plastic | ||
- COO (Country of Origin):
- HU

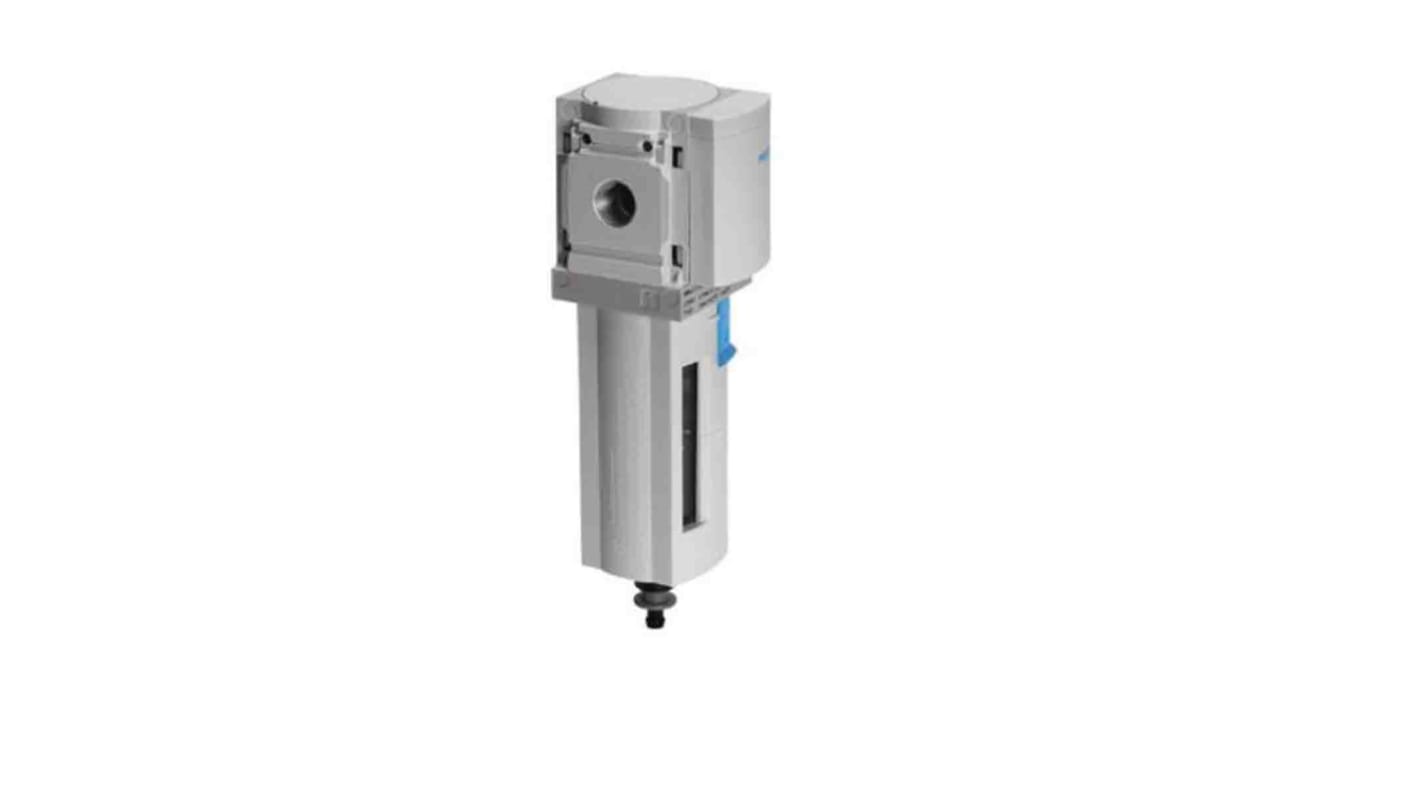

Festo Pneumatic Filter, G1/2 Port Connection, Size 6 - MS6-LF-1/2-CRM
Clean up the air in your pneumatic machinery using this pneumatic filter from Festo. With a filtration grade of 5μm, it traps even the tiniest particles, leaving your flow clear. An integrated bowl is on hand to capture any condensate and stop it from clogging up tubes. Robust NBR seals stop leaks, meaning you can rest assured your system will continue functioning well even in demanding conditions.
Features & Benefits
• Maximum condensate volume of 38cm³, so it can hold a lot of moisture
• Ambient operating temperature range between -10°C and +60°C to withstand harsh environments
• Strong aluminium die-cast housing resists impacts for durability
• Maximum flow rate of 3,200L/min for use with high-capacity systems
Applications
• Medical technology
• Marine engineering
• Oil and gas industry
How do I mount this pneumatic filter?
You mount this filter by fixing the threaded end to your port in a vertical position. For flexibility, you can adjust it by up to +/-5°.
What's the operating pressure of this filter?
This filter has a broad operating pressure range between 0 and 20 bar, so it's safe to use in a wide variety of industrial applications.
