Idec FT1A Series PLC CPU, Transistor Output, 30-Input, Sink, Source Input
- RS 제품 번호:
- 812-9843
- 제조사 부품 번호:
- FT1A-H48SC
- 제조업체:
- Idec
현재 이용 불가
이 품목의 재입고 여부는 알 수 없으며 제조업체에서 단종되고 있습니다.
- RS 제품 번호:
- 812-9843
- 제조사 부품 번호:
- FT1A-H48SC
- 제조업체:
- Idec
사양
참조 문서
제정법과 컴플라이언스
제품 세부 사항
제품 정보를 선택해 유사 제품을 찾기
모두 선택 | 제품 정보 | 값 |
|---|---|---|
| 브랜드 | Idec | |
| Manufacturer Series | FT1A | |
| Number of Inputs | 30 | |
| Output Type | Transistor | |
| Input Type | Sink, Source | |
| Voltage Category | 100 → 240 V ac | |
| Number of Outputs | 18 | |
| Network Type | Ethernet | |
| Battery Backup | Yes | |
| Length | 90mm | |
| Width | 160mm | |
| Mounting Type | DIN Rail | |
| Number of Communication Ports | 1 | |
| Maximum Operating Temperature | +55°C | |
| Dimensions | 90 x 160 x 78 mm | |
| Program Capacity | 48 kB | |
| Depth | 78mm | |
| Output Current | 300 mA | |
| Minimum Operating Temperature | 0°C | |
| 모두 선택 | ||
|---|---|---|
브랜드 Idec | ||
Manufacturer Series FT1A | ||
Number of Inputs 30 | ||
Output Type Transistor | ||
Input Type Sink, Source | ||
Voltage Category 100 → 240 V ac | ||
Number of Outputs 18 | ||
Network Type Ethernet | ||
Battery Backup Yes | ||
Length 90mm | ||
Width 160mm | ||
Mounting Type DIN Rail | ||
Number of Communication Ports 1 | ||
Maximum Operating Temperature +55°C | ||
Dimensions 90 x 160 x 78 mm | ||
Program Capacity 48 kB | ||
Depth 78mm | ||
Output Current 300 mA | ||
Minimum Operating Temperature 0°C | ||
- COO (Country of Origin):
- CN

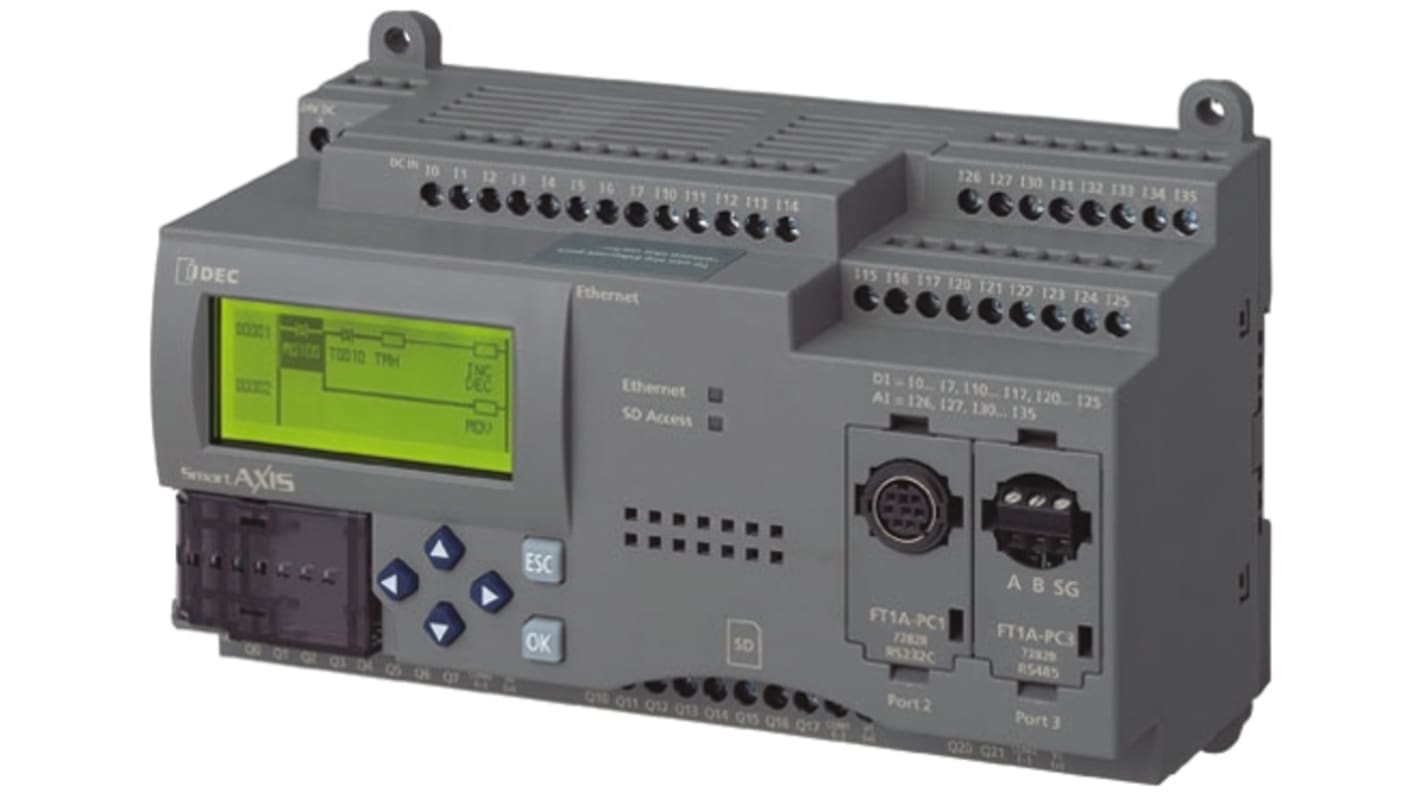

SmartAXIS Pro 48 I/O CPU
SmartAXIS Pro PLC CPU provides the user with a comprehensive variety of customisation options allowing for installation into a large range of applications. Supplied with an embedded battery backup which can offer up to 30 days power and self diagnostic functions
"Features of the SmartAXIS Pro CPU
Compatible with IDEC's WindLDR programming software
Supports Modbus TCP and RTU
Mini USB type B port for programming
Embedded Ethernet port
100kHz high-speed outputs
Backlit LCD option available
Embedded 8-pt analog inputs for 0-10V DC, 10-bit & DC power
Integrated 4x 100kHz high-speed counters
Lithium backup battery which can supply for up to 30 days (typical) at 25°C once fully charged
Self-Diagnostic function provides the user with indications for "Keep Data", "Timer/Counter preset value change" & System/Memory Card transfer error" plus many more
Equipped with 2 expansion communication ports for optional expansion
Optional RS232C/RS485 adaptor available
SD Card slot for data logging and program storage for ease of installation & data export
Compatible with IDEC's WindLDR programming software
Supports Modbus TCP and RTU
Mini USB type B port for programming
Embedded Ethernet port
100kHz high-speed outputs
Backlit LCD option available
Embedded 8-pt analog inputs for 0-10V DC, 10-bit & DC power
Integrated 4x 100kHz high-speed counters
Lithium backup battery which can supply for up to 30 days (typical) at 25°C once fully charged
Self-Diagnostic function provides the user with indications for "Keep Data", "Timer/Counter preset value change" & System/Memory Card transfer error" plus many more
Equipped with 2 expansion communication ports for optional expansion
Optional RS232C/RS485 adaptor available
SD Card slot for data logging and program storage for ease of installation & data export
IDEC SmartAXIS Pro
