Idec FT1A Series PLC CPU, Relay Output, 8-Input, Contact Input

본 제품군 열람하기

Subtotal (1 unit)*

₩770,988.00

Add to Basket
수량 선택 또는 입력
현재 액세스할 수 없는 재고 정보
수량
한팩당
1 +₩770,988.00

* 참고 가격: 실제 구매가격과 다를 수 있습니다

RS 제품 번호:
812-9774
제조사 부품 번호:
FT1A-B12RC
제조업체:
Idec
제품 정보를 선택해 유사 제품을 찾기
모두 선택

브랜드

Idec

Manufacturer Series

FT1A

Number of Inputs

8

Output Type

Relay

Input Type

Contact

Voltage Category

100 → 240 V ac

Number of Outputs

4

Maximum Operating Temperature

+55°C

Mounting Type

DIN Rail

Width

76mm

Dimensions

90 x 76 x 60 mm

Battery Backup

Yes

Length

90mm

Minimum Operating Temperature

0°C

Depth

60mm

Program Capacity

12 kB

COO (Country of Origin):
CN

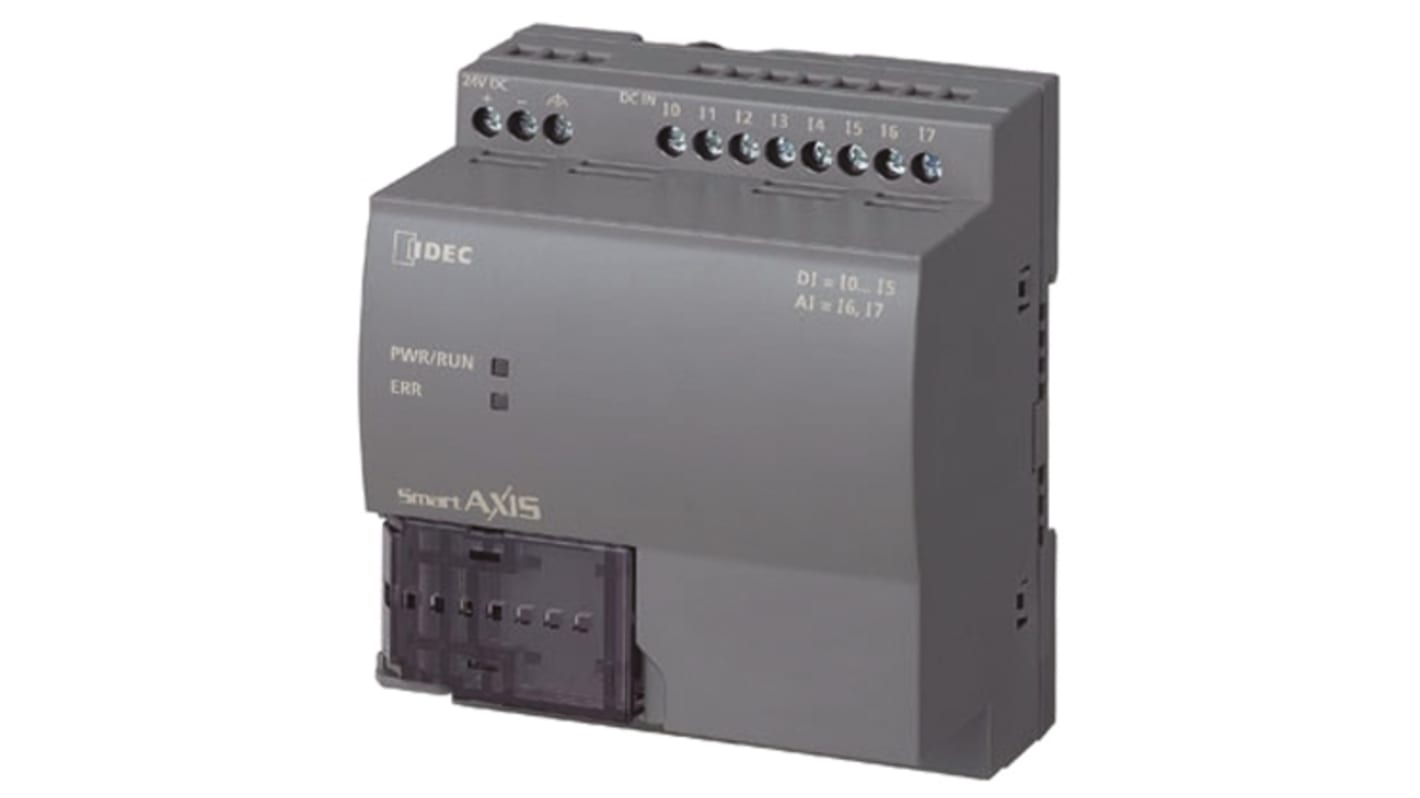

SmartAXIS Lite 12 I/O CPU


SmartAXIS Lite PLC CPU provides the user with a comprehensive variety of customisation options allowing for installation into a large range of applications. Supplied with an embedded battery backup which can offer up to 30 days power and self diagnostic functions

Features of the SmartAXIS Lite CPU
Compatible with IDEC's WindLDR programming software
10A SPST relay contact
Mini USB type B port for programming
Embedded real time clock
Backlit LCD option available
Integrated 4x 100kHz high-speed counters
Lithium backup battery which can supply for up to 30 days (typical) at 25°C once fully charged
Self-Diagnostic function provides the user with indications for "Keep Data", "Timer/Counter preset value change" & System/Memory Card transfer error" plus many more

Standards

CE, UL


IDEC SmartAXIS Lite
