Idec FT1A Series PLC CPU, Transistor Output, 30-Input, Sink, Source Input

본 제품군 열람하기

Subtotal (1 unit)*

₩1,454,845.52

Add to Basket
수량 선택 또는 입력
현재 액세스할 수 없는 재고 정보
수량
한팩당
1 +₩1,454,845.52

* 참고 가격: 실제 구매가격과 다를 수 있습니다

RS 제품 번호:
812-9803
제조사 부품 번호:
FT1A-B48SC
제조업체:
Idec
제품 정보를 선택해 유사 제품을 찾기
모두 선택

브랜드

Idec

Manufacturer Series

FT1A

Number of Inputs

30

Output Type

Transistor

Input Type

Sink, Source

Number of Outputs

18

Voltage Category

100 → 240 V ac

Network Type

Ethernet

Maximum Operating Temperature

+55°C

Minimum Operating Temperature

0°C

Output Current

300 mA

Number of Communication Ports

1

Mounting Type

DIN Rail

Battery Backup

Yes

Dimensions

90 x 160 x 78 mm

Program Capacity

48 kB

Depth

78mm

Length

90mm

Width

160mm

COO (Country of Origin):
CN

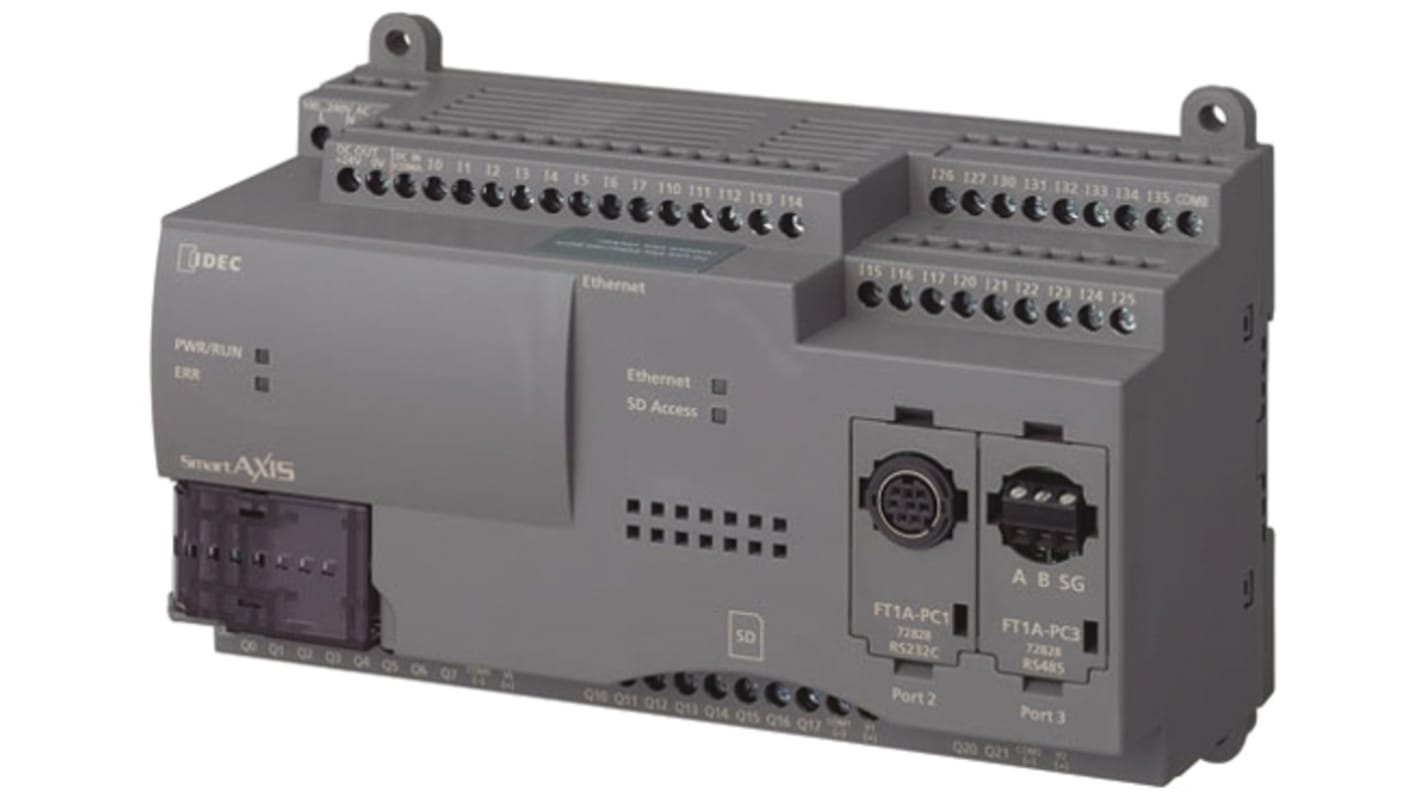

SmartAXIS Lite 48 I/O CPU


SmartAXIS Lite PLC CPU provides the user with a comprehensive variety of customisation options allowing for installation into a large range of applications. Supplied with an embedded battery backup which can offer up to 30 days power and self diagnostic functions

Features of the SmartAXIS Lite CPU
Compatible with IDEC's WindLDR programming software
Supports Modbus TCP and RTU
Mini USB type B port for programming
Embedded Ethernet port
100kHz high-speed outputs
Backlit LCD option available
Embedded 8-pt analog inputs for 0-10V DC, 10-bit & DC power
Integrated 4x 100kHz high-speed counters
Lithium backup battery which can supply for up to 30 days (typical) at 25°C once fully charged
Self-Diagnostic function provides the user with indications for "Keep Data", "Timer/Counter preset value change" & System/Memory Card transfer error" plus many more
Equipped with 2 expansion communication ports for optional expansion
Optional RS232C/RS485 adaptor available
SD Card slot for data logging and program storage for ease of installation & data export


IDEC SmartAXIS Lite
