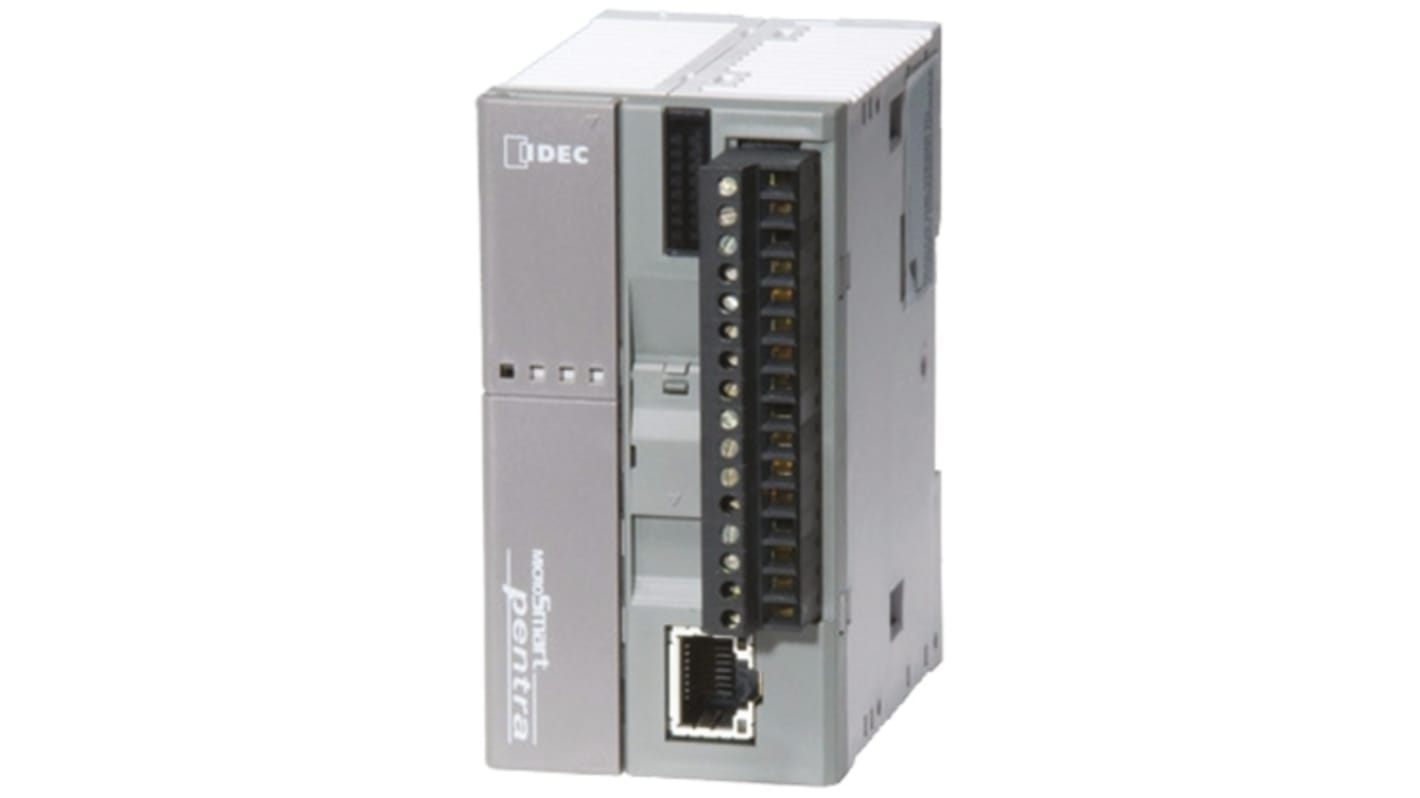

Idec FC5A Series PLC CPU, Transistor Output, 8-Input
- RS 제품 번호:
- 812-9702
- 제조사 부품 번호:
- FC5A-D12S1E
- 제조업체:
- Idec
현재 이용 불가
이 품목의 재입고 여부는 알 수 없으며 제조업체에서 단종되고 있습니다.
- RS 제품 번호:
- 812-9702
- 제조사 부품 번호:
- FC5A-D12S1E
- 제조업체:
- Idec
사양
참조 문서
제정법과 컴플라이언스
제품 세부 사항
제품 정보를 선택해 유사 제품을 찾기
모두 선택 | 제품 정보 | 값 |
|---|---|---|
| 브랜드 | Idec | |
| Manufacturer Series | FC5A | |
| Number of Inputs | 8 | |
| Output Type | Transistor | |
| Voltage Category | 24 V dc | |
| Number of Outputs | 4 | |
| Network Type | Ethernet | |
| Length | 90mm | |
| Depth | 84.6mm | |
| Communication Port Type | RJ45 | |
| Dimensions | 90 x 47.5 x 84.6 mm | |
| Battery Backup | Yes | |
| Maximum Operating Temperature | +55°C | |
| Width | 47.5mm | |
| Minimum Operating Temperature | 0°C | |
| Number of Communication Ports | 2 | |
| Mounting Type | DIN Rail | |
| 모두 선택 | ||
|---|---|---|
브랜드 Idec | ||
Manufacturer Series FC5A | ||
Number of Inputs 8 | ||
Output Type Transistor | ||
Voltage Category 24 V dc | ||
Number of Outputs 4 | ||
Network Type Ethernet | ||
Length 90mm | ||
Depth 84.6mm | ||
Communication Port Type RJ45 | ||
Dimensions 90 x 47.5 x 84.6 mm | ||
Battery Backup Yes | ||
Maximum Operating Temperature +55°C | ||
Width 47.5mm | ||
Minimum Operating Temperature 0°C | ||
Number of Communication Ports 2 | ||
Mounting Type DIN Rail | ||
- COO (Country of Origin):
- JP
MicroSmart CPU
MicroSmart Pentra PLCs provide the perfect blend of advanced networking capabilities, seamless connectivity coupled with unparalleled power. Thanks to the highly adaptive structure of the Pentra PLC you can expand your system with up to 15 modules for added flexibility. Slim "Book" modules easily snap together without tools making for simple installation and customisation
Features of the MicroSmart Pentra
Online simulation & edit modes
Supports up to 512 I/Os
Accommodates up to 7 communication ports
Integrated Modbus master and slave
Embedded 100kHz HSC & pulse outputs
Firmware can be field-upgraded
Fast processing speed allowing for 32-bit data compatibility
Embedded Ethernet functionality provides real-time updates via SMS or email and can also offer remote-logging & web server functions
Online simulation & edit modes
Supports up to 512 I/Os
Accommodates up to 7 communication ports
Integrated Modbus master and slave
Embedded 100kHz HSC & pulse outputs
Firmware can be field-upgraded
Fast processing speed allowing for 32-bit data compatibility
Embedded Ethernet functionality provides real-time updates via SMS or email and can also offer remote-logging & web server functions
Supplied in an All-in-One "Brick" or slim "Book" model with logic engine
Available in 12, 16 & 32 I/O options as standard, supporting Ethernet & RS232/485 with both digital & analog I/O expansion modules for added flexibility
Available in 12, 16 & 32 I/O options as standard, supporting Ethernet & RS232/485 with both digital & analog I/O expansion modules for added flexibility
Note
Analog and communication modules must be mounted on the right-hand expansion bus
Standards
UL listed for Class 1 Div. 2 Hazardous Locations
IDEC MicroSmart
