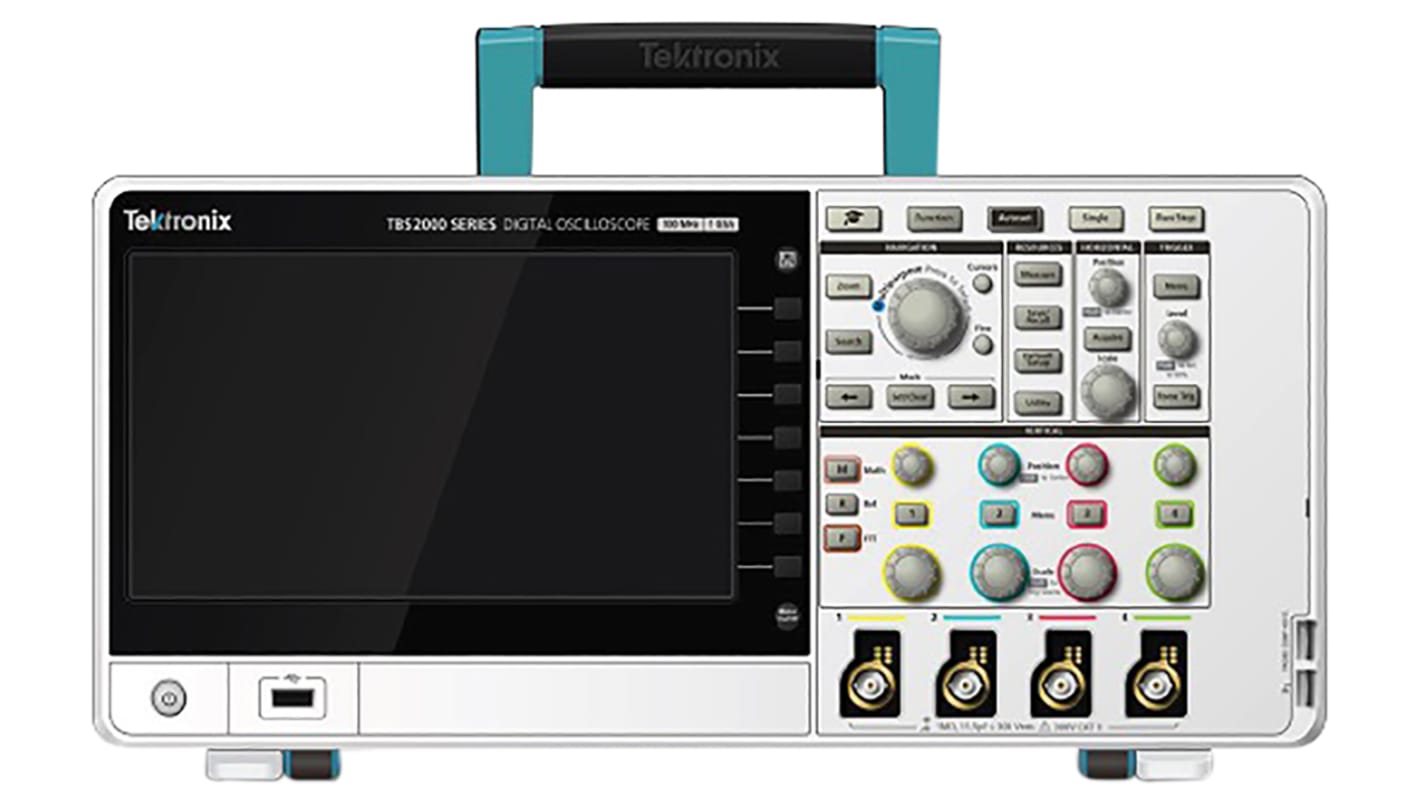

Tektronix TBS2000 Series TBS2102 Oscilloscope, Digital Storage, 2 Channels, 100MHz

  • RS 제품 번호 122-4799
  • 제조사 부품 번호 TBS2102
  • 제조업체 Tektronix
참조 문서
제정법과 컴플라이언스
해당 안됨
COO (Country of Origin): CN
제품 세부 사항

Tektronix TBS2000 Series Digital Storage Oscilloscopes

Tektronix TBS2000 Series digital storage oscilloscopes capture and display significantly more signal. This is because many oscilloscopes provide 8 vertical divisions and 10 horizontal divisions, while the TBS2000 offers 10 vertical divisions and 15 horizontal divisions. Dedicated controls provide quick access to important settings. More signal plus quicker access means better, faster design evaluation. Signals analysis is enhanced with new on-waveform cursor readouts and 32 automated measurements, each with informative tips to help choose the right one quickly. TBS2000 features include a 9-inch WVGA display, 20 million point record length and 1 GS/s sample rate. The TBS2000 Series is designed for easy operation and quick hands-on learning. Its display offers more room for measurement results and menu information. The instrument's TekVPI probe interface works with traditional BNC connections but also enables wide application coverage with the latest active voltage probes and current probes.

Features and Benefits

Up to 1 GS/s sampling rate
20 M record length on all channels
9-inch WVGA colour display
15 horizontal grids show 50% more signal
TekVPI probe interface supports active, differential and current probes with automatic scaling and units
32 automated measurements and FFT function for thorough waveform analysis
HelpEverywhere provides helpful on-screen tips
Built-in Scope Intro handbook provides operating instructions and oscilloscope fundamentals
USB 2.0 host port on front panel for quick and easy data storage
Wi-Fi interface provides wireless communications capability support
USB 2.0 device port on rear panel for easy connection to a PC
LXI compliant 10/100BASE-T Ethernet port for remote control over LAN
Courseware function presents lab exercise guidance on the display
Fully compatible with TekSmartLab lab management software for education

Areas of Application

Testing signal voltage in circuit debugging
Testing in manufacturing
Designing
Testing of signals voltage in radio broadcasting equipment
Research & Development
Audio and video recording equipment

Note

The Tektronix five-year warranty covers all parts and labour, excluding probes. TBS2000 Series oscilloscopes are supplied with one 100 MHz, 10x passive probe TPP0100 per analog channel. Replacement TPP0100 probes are available separately ( 726-0035 ). Other compatible probes available separately include high-voltage passive probe P5100A ( 734-5013 ), differential voltage probe TDP0500 ( 661-3292 ), high-voltage differential probes THDP0200 ( 752-7357 ) & THDP0100 ( 752-7353 ), active voltage probe TAP1500 ( 661-3286 ) and current probes TCP0020 ( 796-2696 ), TCP0030A ( 781-0807 ), TCP0150 ( 661-3283 ) & TCP2020 ( 796-6705 ). Other accessories available separately include the TekVPI to TekProbe BNC adapter TPA-BNC ( 697-8814 ), soft transit case ACD2000 ( 575-589 ) & GPIB-to-USB adapter TEK-USB-488 ( 113-143 ).

Supplied with

100 MHz 10x passive probe TPP0100 (1 per analog channel), documentation CD, installation and safety manual, programmer manual (on the documentation CD and on Tek Web), power cord, calibration certificate documenting traceability to National Metrology Institute(s) and ISO9001 quality system registration

Tektronix Oscilloscope

The Tektronix TBS2000 series oscilloscope has a bandwidth of 100MHz. It is a 2-channel digital storage oscilloscope which offers 32 automated measurements and FFT analysis for simplified waveform analysis. Unlike other oscilloscopes, the TBS2000 provides 10 vertical divisions and 15 horizontal divisions. More signal plus quicker access means better, faster design evaluation. Its display has more room for measurement results and menu information. The instrument's TekVPI probe interface works with traditional BNC connections but also enables wide application coverage with the latest active voltage probes and current probes.
Note:
The Tektronix five-year warranty covers all parts and labour, excluding probes. TBS2000 Series oscilloscopes are supplied with one 100 MHz, 10x passive probe TPP0100 per analogue channel. Replacement TPP0100 probes are available separately ( 726-0035 ). Other compatible probes available separately include high-voltage passive probe P5100A ( 734-5013 ), differential voltage probe TDP0500 ( 661-3292 ), high-voltage differential probes THDP0200 ( 752-7357 ) & THDP0100 ( 752-7353 ), active voltage probe TAP1500 ( 661-3286 ) and current probes TCP0020 ( 796-2696 ), TCP0030A ( 781-0807 ), TCP0150 ( 661-3283 ) & TCP2020 ( 796-6705 ). Other accessories available separately include the TekVPI to TekProbe BNC adapter TPA-BNC ( 697-8814 ), soft transit case ACD2000 ( 575-589 ) & GPIB-to-USB adapter TEK-USB-488 ( 113-143 ).
Supplied with:
100 MHz 10x passive probe TPP0100 (1 per analogue channel), documentation CD, installation and safety manual, programmer manual (on the documentation CD and Tek Web), power cord, calibration certificate documenting traceability to National Metrology Institute(s) and ISO9001 quality system registration

Features and Benefits

• Sample rate is 1GSa/s
• 2M points record length on all channels
• Input impedance of 1Mohm
• 9in WVGA colour display
• Help provide helpful on-screen tips
• Built-in scope intro handbook provides operating instructions and oscilloscope fundamentals
• 2-channel models are highly-portable at 2.62kg (5.8lbs)
• USB 2.0 host port on front panel for quick and easy data storage
• Wi-Fi interface provides wireless communications capability support
• USB 2.0 device port on rear panel for easy connection to a PC
• LXI compliant 10/100BASE-T Ethernet port for remote control over LAN
• Courseware function presents lab exercise guidance on the display
• Fully compatible with TekSmartLab lab management software for education

Applications

• Testing signal voltage in circuit debugging
• Testing in manufacturing
• Designing
• Testing of signals voltage in radio broadcasting equipment
• Research and development
• Audio and video recording equipment

Certifications

• EC Council Directive 2004/108/EC compatible
• Safety UL61010-1:2004 approved
• CAN/CSA-C22.2 No. 61010.1: 2004 approved
• EN61010-1:2001

Tektronix TBS2000 Series Digital Storage Oscilloscopes

사양
속성
Number of Channels 2
Bandwidth 100MHz
Oscilloscope Type Digital Storage
Series TBS2000
Power Source Mains
Interface USB
Display Type TFT LCD
Minimum Vertical Sensitivity 2mV/div
Maximum Vertical Sensitivity 5V/div
Minimum Time Base 2ns/div
Screen Size 9in
Sample Rate Random 1 Gsps
Model Number p TBS2102
Vertical Resolution 8 bit
Plug Type Type C - European Plug, Type G - British 3-pin, Type J - Swiss 3-pin
단종
