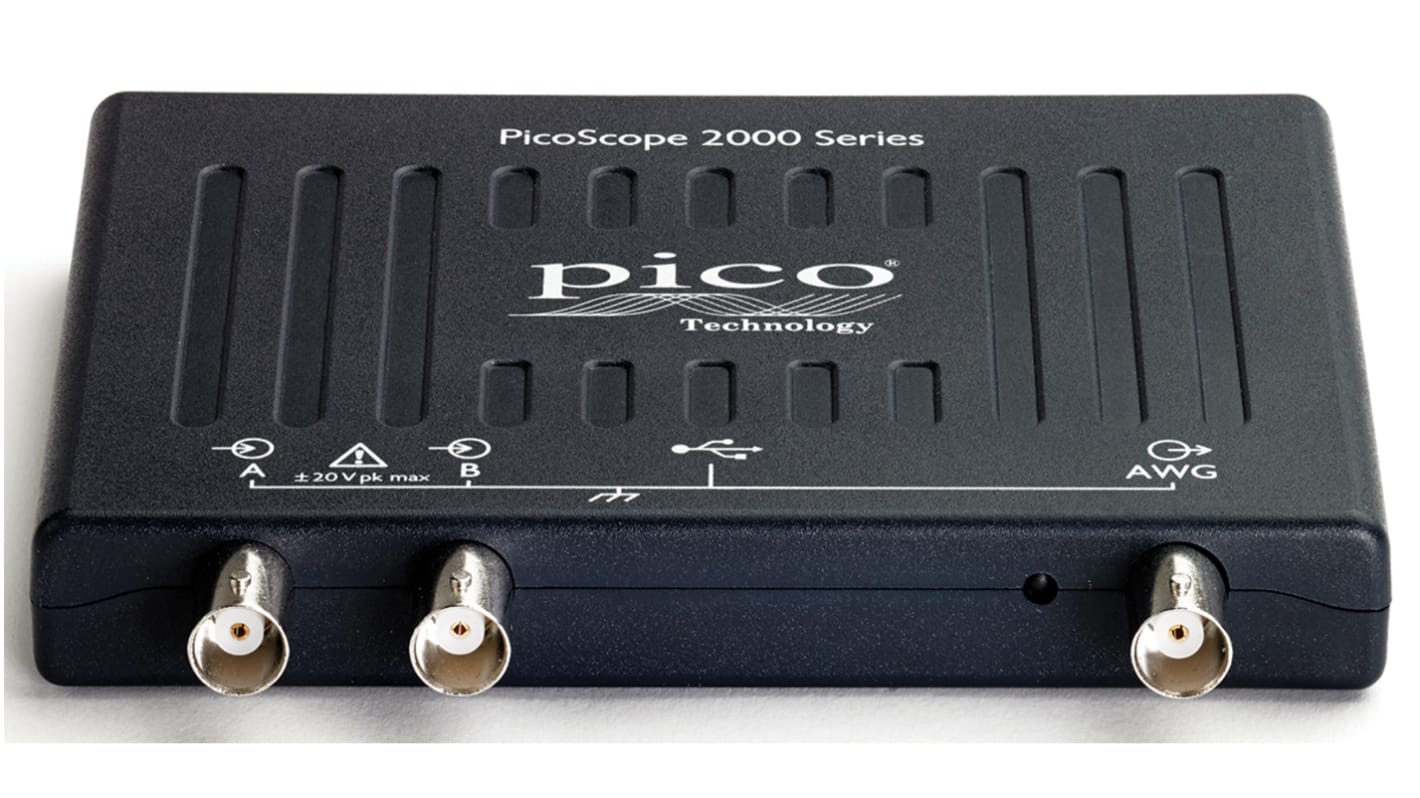

PicoScope 2000 Series, 100 MHz PC Based Oscilloscope 2-Channel
- RS 제품 번호:
- 111-6773
- Distrelec 제품 번호:
- 300-73-911
- 제조사 부품 번호:
- PicoScope 2208B
- 제조업체:
- Pico Technology
대량 구매 할인 받기
5개 더 담고 2% 할인 받기
View bulk pricing optionsSubtotal (1 unit)*
₩1,314,740.00
재고있음
- 7 개 단위 배송 준비 완료
더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.
수량 | 한팩당 | 절감 |
|---|---|---|
| 1 - 4 | ₩1,314,740.00 | - |
| 5 + | ₩1,288,420.00 | 2% |
* 참고 가격: 실제 구매가격과 다를 수 있습니다
- RS 제품 번호:
- 111-6773
- Distrelec 제품 번호:
- 300-73-911
- 제조사 부품 번호:
- PicoScope 2208B
- 제조업체:
- Pico Technology
사양
참조 문서
제정법과 컴플라이언스
제품 세부 사항
제품 정보를 선택해 유사 제품을 찾기
모두 선택 | 제품 정보 | 값 |
|---|---|---|
| 브랜드 | Pico Technology | |
| Product Type | Oscilloscope | |
| Bandwidth | 100MHz | |
| Number of Channels | 2 | |
| Model Number | PicoScope 2208B | |
| Oscilloscope Type | PC Based | |
| Interface Type | CAN, IIC, LIN, RS232, SPI, UART, USB | |
| Series | PicoScope 2000 | |
| Standards/Approvals | REACH, RoHS, WEEE | |
| Length | 130mm | |
| Height | 18.80mm | |
| Width | 104mm | |
| Vertical Resolution | 8 bit | |
| Minimum Vertical Sensitivity | 4mV/div | |
| Maximum Time Base | 5000s/div | |
| Rise Time | 3.5ns | |
| Maximum Vertical Sensitivity | 4V/div | |
| Minimum Time Base | 1ns/div | |
| Power Source | USB | |
| 모두 선택 | ||
|---|---|---|
브랜드 Pico Technology | ||
Product Type Oscilloscope | ||
Bandwidth 100MHz | ||
Number of Channels 2 | ||
Model Number PicoScope 2208B | ||
Oscilloscope Type PC Based | ||
Interface Type CAN, IIC, LIN, RS232, SPI, UART, USB | ||
Series PicoScope 2000 | ||
Standards/Approvals REACH, RoHS, WEEE | ||
Length 130mm | ||
Height 18.80mm | ||
Width 104mm | ||
Vertical Resolution 8 bit | ||
Minimum Vertical Sensitivity 4mV/div | ||
Maximum Time Base 5000s/div | ||
Rise Time 3.5ns | ||
Maximum Vertical Sensitivity 4V/div | ||
Minimum Time Base 1ns/div | ||
Power Source USB | ||
- COO (Country of Origin):
- GB
PicoScope 2000 Series Oscilloscope, 100MHz Bandwidth, 2 Channels - PicoScope 2208B
This oscilloscope is a Compact PC-connected instrument designed for waveform capture and analysis via a USB power interface. It provides time-domain measurements with a fast minimum timebase and moderate vertical resolution, suitable for engineers and technicians who require portable signal inspection. Multiple serial bus interfaces enable direct decoding of common vehicle and embedded communication standards for troubleshooting and verification tasks.
Features and Benefits:
• 100MHz bandwidth improves frequency capture and signal fidelity
• 1ns/div minimum timebase enables fine timing measurements
• 3.5ns rise time supports detection of fast edges
• 8-bit vertical resolution balances detail and data throughput
• 4mV/div sensitivity reveals low-amplitude signal detail
• 1ns/div minimum timebase enables fine timing measurements
• 3.5ns rise time supports detection of fast edges
• 8-bit vertical resolution balances detail and data throughput
• 4mV/div sensitivity reveals low-amplitude signal detail
Applications
• Suitable for automotive network diagnostics using CAN and LIN
• Ideal for embedded system validation with I2C and SPI buses
• Used with serial device testing over UART and RS232
• Can be used for portable field measurements via USB power
• Used for education and laboratory work requiring PC-based analysis
• Ideal for embedded system validation with I2C and SPI buses
• Used with serial device testing over UART and RS232
• Can be used for portable field measurements via USB power
• Used for education and laboratory work requiring PC-based analysis
How is the unit powered during field use?
It draws power directly from a USB connection enabling operation without an external mains supply.
Which serial buses can be analysed for protocol decoding?
It supports CAN, I2C, LIN, SPI, UART and RS232 interfaces for direct bus-level inspection.
What is the maximum selectable time division for long-duration captures?
The scope offers a maximum timebase of 5000s/div for extended observation intervals.
What are the physical dimensions for portability considerations?
The instrument measures 130mm in length, 104mm in width and 18.80mm in height.
