Fluke LinkIQ DUO Cable+Wi-Fi+Network Network Tester USB, Internal Antenna, LC Fibre, RJ45

RS 제품 번호:: 434-379
제조사 부품 번호:: LIQ-DUO-KIT-FMC-H6UK
제조업체:: Fluke

Fluke LinkIQ DUO Cable+Wi-Fi+Network Network Tester USB, Internal Antenna, LC Fibre, RJ45

Subtotal (1 unit)*

₩10,460,096.28

재고있음

5 개 단위 배송 준비 완료

더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.

수량	한팩당
1 +	₩10,460,096.28

* 참고 가격: 실제 구매가격과 다를 수 있습니다

RS 제품 번호:: 434-379
제조사 부품 번호:: LIQ-DUO-KIT-FMC-H6UK
제조업체:: Fluke

참조 문서

제정법과 컴플라이언스

제품 세부 사항

제품 정보를 선택해 유사 제품을 찾기

모두 선택	제품 정보	값
	브랜드	Fluke
	Product Type	Cable Tracer
	Equipment Type	Network Tester
	Connector Type	USB, Internal Antenna, LC Fibre, RJ45
	Tone	Yes
	Model Number	LinkIQ DUO Cable+Wi-Fi+Network
	Power Source	Battery
	Battery Type	Lithium-ion
	Battery Life	8h
	Display Type	Capacitive Touch Display
	Minimum Operating Temperature	0°C
	Maximum Operating Temperature	45°C
	Standards/Approvals	RoHS
	Weight	624g
	Length	220mm
	Height	50mm

	모두 선택
	브랜드 Fluke
	Product Type Cable Tracer
	Equipment Type Network Tester
	Connector Type USB, Internal Antenna, LC Fibre, RJ45
	Tone Yes
	Model Number LinkIQ DUO Cable+Wi-Fi+Network
	Power Source Battery
	Battery Type Lithium-ion
	Battery Life 8h
	Display Type Capacitive Touch Display
	Minimum Operating Temperature 0°C
	Maximum Operating Temperature 45°C
	Standards/Approvals RoHS
	Weight 624g
	Length 220mm
	Height 50mm

COO (Country of Origin):: US

Fluke Cable Tracer, 8h Battery Life, 4.19kg Weight - LIQ-DUO-KIT-FMC-H6UK

This cable tracer is a specialised diagnostic tool that combines cable tracing with network and Fibre port testing for field technicians. It links to Fibre or copper ports via media converters and SFPs to verify Ethernet connectivity, obtain switch and port information, and perform IP ping tests while powered from an integrated battery bank for portable operation.

Features & Benefits

• 8h lithium‑ion runtime for extended field troubleshooting
• Capacitive touch display for quick, intuitive navigation
• LC Fibre and RJ45 connectors enabling both Fibre and copper tests
• USB and internal antenna support for flexible connectivity options
• Operates across 0–45°C for demanding site conditions
• RoHS‑compliant construction meeting environmental restrictions

Applications

• Suitable for verifying 1Gb/s and 10Gb/s Fibre port connectivity
• Ideal for commissioning switches and VLAN validation via ping
• Used with LinkIQ testers to diagnose remote switch identity and port
• Can be used for portable Fibre field testing with included power bank
• Used for multi‑site maintenance where temperature resilience is required

What Fibre standards can it support when paired with media converters?

When connected through the media converters and appropriate SFPs it supports 1000BASE‑SX, 1000BASE‑LX, 10GBASE‑SR and 10GBASE‑LR for multimode and single‑mode links.

How are the media converters powered on site?

A rechargeable lithium‑polymer power bank with 5000mAh capacity supplies both the converters and can be charged via USB‑C or USB‑A ports.

What cabling and accessories are included for immediate testing?

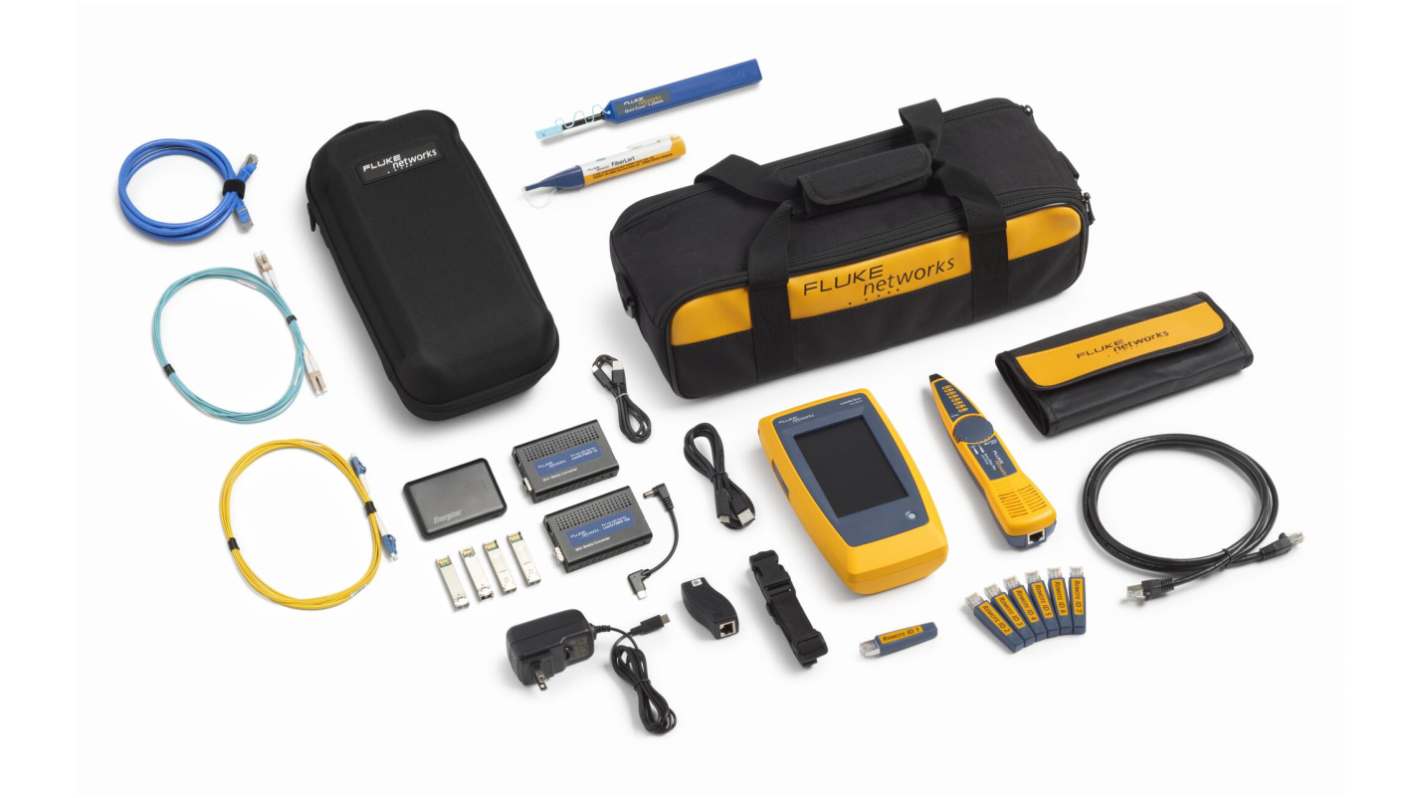

The kit supplies single‑mode and multimode patch cords, CAT6A RJ45 lead, SFPs for 1G/10G, charging and converter power cables, and a single carrying case.

How does the tester report network endpoint information?

The network test returns IPv4/IPv6 ping responses and nearest‑switch diagnostics including IP address, device name and port/VLAN identifiers.

What physical package size and weight should be expected for transport planning?

The carrying case measures 30.8x16.8x12.8cm and the combined kit weight is approximately 4.19kg.
