제조사부품번호

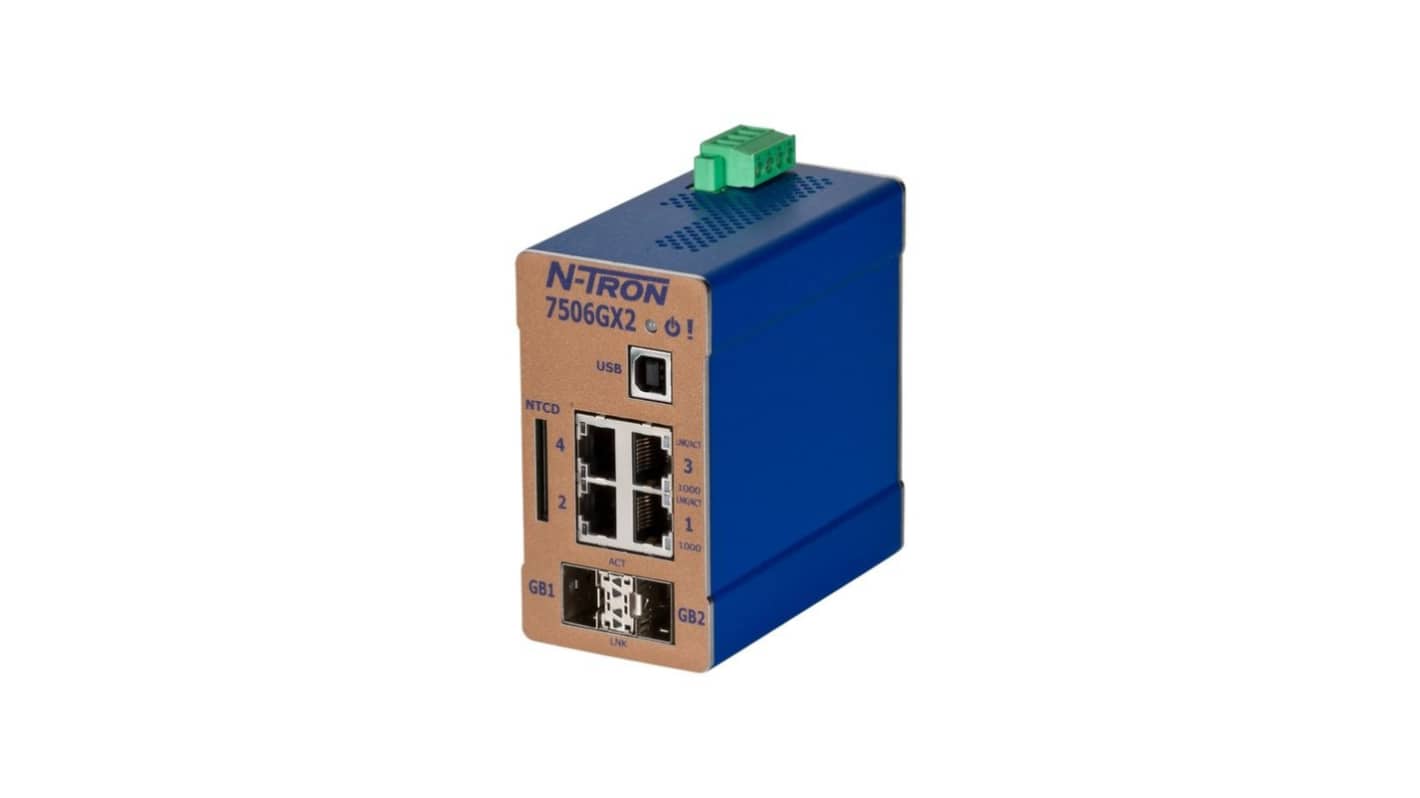

N-Tron GX2 Series DIN Rail Ethernet Switch, 4, 1000Mbps Transmission, 10/49 V dc

RS 제품 번호:: 212-542
Distrelec 제품 번호:: 302-30-234
제조사 부품 번호:: 7506GX2
제조업체:: N-Tron

N-Tron GX2 Series DIN Rail Ethernet Switch, 4, 1000Mbps Transmission, 10/49 V dc

Subtotal (1 unit)*

₩1,770,621.60

재고있음

추가로 2026년 2월 23일 부터 5 개 단위 배송

더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.

수량	한팩당
1 +	₩1,770,621.60

* 참고 가격: 실제 구매가격과 다를 수 있습니다

RS 제품 번호:: 212-542
Distrelec 제품 번호:: 302-30-234
제조사 부품 번호:: 7506GX2
제조업체:: N-Tron

참조 문서

제정법과 컴플라이언스

제품 세부 사항

제품 정보를 선택해 유사 제품을 찾기

모두 선택	제품 정보	값
	브랜드	N-Tron
	Product Type	Ethernet Switch
	Transmission Speed	1000Mbps
	Transmission Length	80km
	Fibre Port Type	LC Duplex
	Nominal Supply Voltage	10/49 V dc
	Mount Type	DIN Rail
	Series	GX2
	For Use With	N-Tron Networking Series
	Minimum Operating Temperature	-40°C
	Number of RJ-45 Ports	4
	Maximum Operating Temperature	80°C
	Weight	0.48kg
	Standards/Approvals	FCC Part 15 Class A, ANSI/ISA 12.12.01-2007, NEMA TS1/TS2 (Traffic Control), ICES-003 Class A, GOST-R, EN61000-4 series, RoHS, CE EN61000-6-2/4, IEEE 1613 (Utility Substations), UL/cUL Class I Div 2 Groups A-D T4
	Depth	3.9in
	Height	3.8in
	Width	2 cm
	Switch Type	Managed
	Number of Ports	6
	Special Features	SNMP/Web/OPC Monitoring, MTBF > 2 Mh, MAC-based Port Security, Jumbo Frame Support, Redundant Power Inputs, Optional SFP Gigabit Ports, surge/ESD Protection, N-Ring With 30 ms Healing, Configuration Backup via SD Card, Onboard Temperature Sensor, Fully Managed
	Protocol Type	v3, LLDP, v2, SNMP v1, Ethernet, 802.1, IGMP, IP, DHCP

	모두 선택
	브랜드 N-Tron
	Product Type Ethernet Switch
	Transmission Speed 1000Mbps
	Transmission Length 80km
	Fibre Port Type LC Duplex
	Nominal Supply Voltage 10/49 V dc
	Mount Type DIN Rail
	Series GX2
	For Use With N-Tron Networking Series
	Minimum Operating Temperature -40°C
	Number of RJ-45 Ports 4
	Maximum Operating Temperature 80°C
	Weight 0.48kg
	Standards/Approvals FCC Part 15 Class A, ANSI/ISA 12.12.01-2007, NEMA TS1/TS2 (Traffic Control), ICES-003 Class A, GOST-R, EN61000-4 series, RoHS, CE EN61000-6-2/4, IEEE 1613 (Utility Substations), UL/cUL Class I Div 2 Groups A-D T4
	Depth 3.9in
	Height 3.8in
	Width 2 cm
	Switch Type Managed
	Number of Ports 6
	Special Features SNMP/Web/OPC Monitoring, MTBF > 2 Mh, MAC-based Port Security, Jumbo Frame Support, Redundant Power Inputs, Optional SFP Gigabit Ports, surge/ESD Protection, N-Ring With 30 ms Healing, Configuration Backup via SD Card, Onboard Temperature Sensor, Fully Managed
	Protocol Type v3, LLDP, v2, SNMP v1, Ethernet, 802.1, IGMP, IP, DHCP

Datasheet - 7506GX2

COO (Country of Origin):: US

The Red Lion Controls Industrial Ethernet Switch offers web browser management and N-View™ OLE for process control server software. The N-TRON N-View software can be combined with popular HMI software packages to add network traffic monitoring, trending, and alarming to any application using N-TRON switches. In addition, SNMP is available for switch link and status monitoring.

Store and forward technology

Rugged industrial DIN rail enclosure

Redundant power inputs

N-Tron GX2 Series DIN Rail Ethernet Switch, 4, 1000Mbps Transmission, 10/49 V dc
