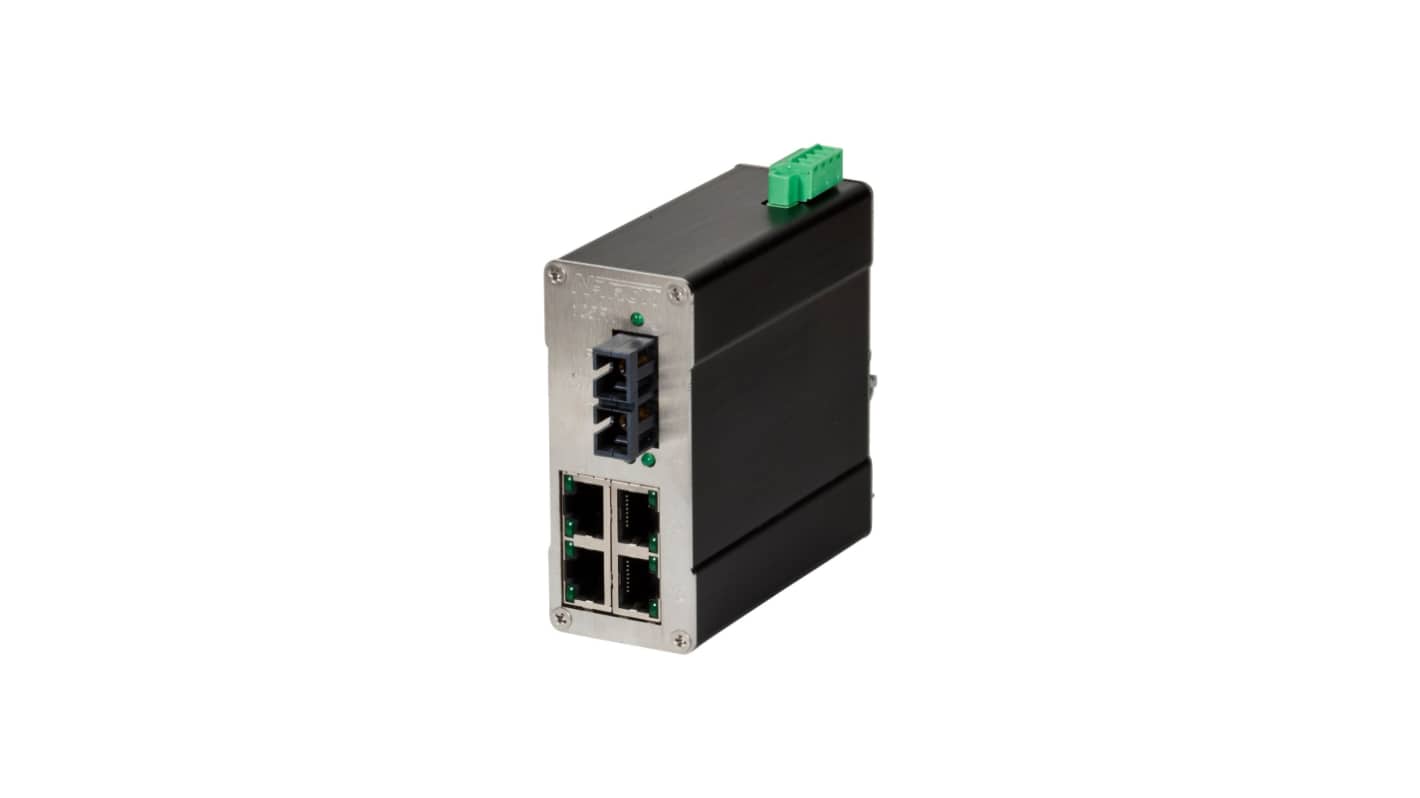

N-Tron 105FX Series DIN Rail Ethernet Switch, 4, 100Mbps Transmission, 10/30 V dc

RS 제품 번호:: 212-529
Distrelec 제품 번호:: 302-30-219
제조사 부품 번호:: 105FX-SC
제조업체:: N-Tron

N-Tron 105FX Series DIN Rail Ethernet Switch, 4, 100Mbps Transmission, 10/30 V dc

Subtotal (1 unit)*

₩582,386.40

재고있음

1 개 단위 배송 준비 완료

더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.

수량	한팩당
1 +	₩582,386.40

* 참고 가격: 실제 구매가격과 다를 수 있습니다

RS 제품 번호:: 212-529
Distrelec 제품 번호:: 302-30-219
제조사 부품 번호:: 105FX-SC
제조업체:: N-Tron

참조 문서

제정법과 컴플라이언스

제품 세부 사항

제품 정보를 선택해 유사 제품을 찾기

모두 선택	제품 정보	값
	브랜드	N-Tron
	Product Type	Ethernet Switch
	Transmission Length	2km
	Transmission Speed	100Mbps
	Nominal Supply Voltage	10/30 V dc
	Fibre Port Type	100 Base FX
	Mount Type	DIN Rail
	Series	105FX
	For Use With	Industrial Data Acquisition, and Ethernet I/O Applications, Control
	Minimum Operating Temperature	-40°C
	Number of RJ-45 Ports	4
	Maximum Operating Temperature	70°C
	Weight	0.27kg
	Standards/Approvals	FCC Part 15 Class A, IEEE 1613, ABS Type, EN55011, NEMA TS1/TS2, ICES-003 Class A, CE (EN61000-6-2,EN61000-3-2,3,IEC61000-4-2,3,4,5,6,11), DNV-GL, UL/cUL, EN50155
	Depth	3.6in
	Height	3.5in
	Width	3.8 cm
	Number of Ports	5
	Switch Type	Unmanaged
	Protocol Type	Ethernet
	Special Features	Extended Environmental Specs, >2 Mh MTBF, Unmanaged Operation, Hardened Metal Enclosure, Redundant Power Inputs, Plug and Play, Compact Size

	모두 선택
	브랜드 N-Tron
	Product Type Ethernet Switch
	Transmission Length 2km
	Transmission Speed 100Mbps
	Nominal Supply Voltage 10/30 V dc
	Fibre Port Type 100 Base FX
	Mount Type DIN Rail
	Series 105FX
	For Use With Industrial Data Acquisition, and Ethernet I/O Applications, Control
	Minimum Operating Temperature -40°C
	Number of RJ-45 Ports 4
	Maximum Operating Temperature 70°C
	Weight 0.27kg
	Standards/Approvals FCC Part 15 Class A, IEEE 1613, ABS Type, EN55011, NEMA TS1/TS2, ICES-003 Class A, CE (EN61000-6-2,EN61000-3-2,3,IEC61000-4-2,3,4,5,6,11), DNV-GL, UL/cUL, EN50155
	Depth 3.6in
	Height 3.5in
	Width 3.8 cm
	Number of Ports 5
	Switch Type Unmanaged
	Protocol Type Ethernet
	Special Features Extended Environmental Specs, >2 Mh MTBF, Unmanaged Operation, Hardened Metal Enclosure, Redundant Power Inputs, Plug and Play, Compact Size

Datasheet - 105FX-SC

COO (Country of Origin):: US

The Red Lion Controls Industrial Network Switch is designed to meet the most demanding industrial communications requirements while providing high throughput and minimum downtime. It provides four RJ-45 auto sensing 10/100BaseTX ports, plus a fibber based Fast Ethernet uplink port. All TX ports are full/half duplex capable, using "state of the art" Ethernet switching technology.

Compact size and small footprint

High reliability and availability

Extended environmental specifications

Hardened metal DIN rail enclosure

High performance

N-Tron 105FX Series DIN Rail Ethernet Switch, 4, 100Mbps Transmission, 10/30 V dc
