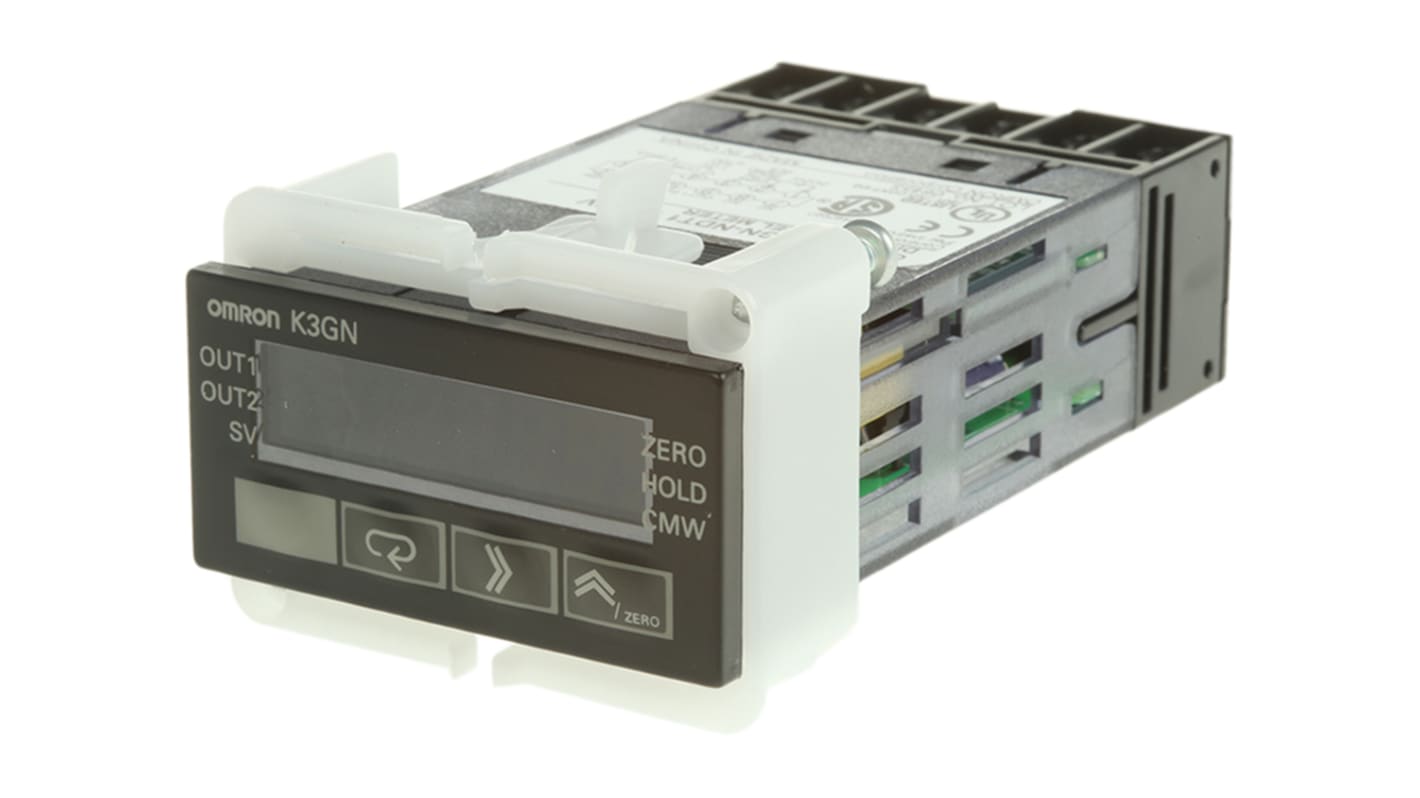

Omron LCD Digital Panel Multi-Function Meter for Current, Voltage, 22mm x 44.8mm

Back lit 7mm high 5 digit LCD display (-19999 to 99999)
Configurable analogue inputs: 4-20mA, 0-20mA, 1-5V d.c., -5 to +5V d.c. and -10 to +10V d.c., all fully scaleable so can be configured to represent a wide range of engineering inputs
Supply voltage: 24V d.c.
Non-voltage and open collector inputs suitable for sensors, encoders and pulse inputs from 0.05 to 30Hz and 0.1 to 5000Hz
All inputs are simple to scale by setting the lower and upper limits and what they are to represent which are automatically linearised to the required scale
Accuracy ±0.1% Full Scale
Front panel protected to NEMA 4 (IP66)
Programmable display changes colour when activation or de-activation of outputs
Panel cut-out: 45 x 22.2mm
Dimensions: H24mm x W48mm x D83mm; depth behind panel: 80mm
CE marked in compliance with all current European noise and emissions regulations

UL and CSA

This digital panel multi-function metre is designed for versatile voltage and current measurement applications. Featuring a compact 1/32 DIN size and a clear 7 segment LCD, it provides excellent visibility. The product is suitable for a wide range of industrial applications.

• Multi-range analogue input accommodates diverse measurement requirements
• NEMA4X/IP66 rated front panel ensures robust protection
• Programmemable outputs allow flexible configuration
• 5-digit display with colour options improves readability

• Suitable for process measurement across various industrial settings
• Ideal for RPM processing and tachometer functions
• Used for digital data display in automation systems
• Enables precise monitoring in voltage and current
• Utilised for real-time industrial measurement solutions

Yes, it features a high protection rating against dust and water.

Yes, it supports RS-485 communication for data transfer.

The device offers exceptional accuracy with ±0.1% full scale performance.

Omron K3N Series
