Name: Omron K3GN 7 Segment LCD Digital Panel Multi-Function Meter for Current, Pulse, Voltage, 22.2mm x 45mm
Brand: Omron
SKU: 883-7188
Price: 550708.40 KRW
Availability: InStock

사양

참조 문서

제정법과 컴플라이언스

제품 세부 사항

제품 정보를 선택해 유사 제품을 찾기

모두 선택	제품 정보	값
	브랜드	Omron
	Properties Measured	Current, Pulse, Voltage
	Display Type	7 Segment LCD
	Cutout Height	22.2mm
	Cutout Width	45mm
	Depth	83mm
	Number of Digits	5
	Digit Height	7 mm
	Minimum Temperature	-10°C
	Maximum Temperature	+55°C
	Measurement Range	0 → 10 V dc, 0 → 20 mA, 0 → 5 V dc, 1 → 5 V dc, 4 → 20 mA
	Series	K3GN
	Approvals	CSA C22.2, UL 508
	Meter Type	Electromechanical
	Minimum Measurement	0 V dc, 0 mA, 1 V dc, 4 mA, 5 V dc

	모두 선택
	브랜드 Omron
	Properties Measured Current, Pulse, Voltage
	Display Type 7 Segment LCD
	Cutout Height 22.2mm
	Cutout Width 45mm
	Depth 83mm
	Number of Digits 5
	Digit Height 7 mm
	Minimum Temperature -10°C
	Maximum Temperature +55°C
	Measurement Range 0 → 10 V dc, 0 → 20 mA, 0 → 5 V dc, 1 → 5 V dc, 4 → 20 mA
	Series K3GN
	Approvals CSA C22.2, UL 508
	Meter Type Electromechanical
	Minimum Measurement 0 V dc, 0 mA, 1 V dc, 4 mA, 5 V dc

로그인하여 CAD 모델 다운로드

COO (Country of Origin):: CN

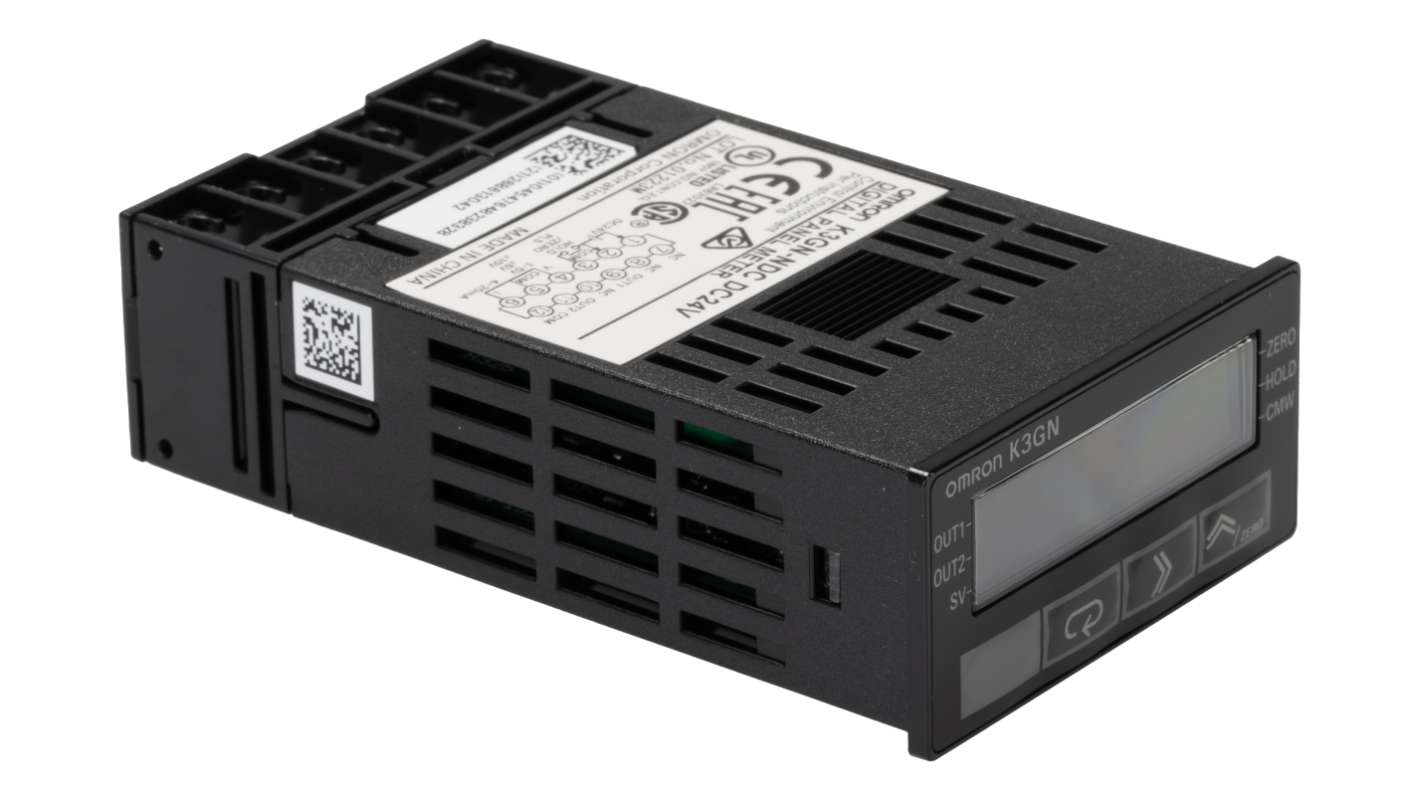

Omron K3GN Series Digital Panel Multi-Function Meter, 7-Segment LCD Display - K3GN-NDC 24 VDC

This digital panel multi-function metre is designed for accurate measurements across various industrial applications. It features a clear 7 segment LCD display for current, voltage, and pulse readings, helping users effectively monitor their systems. Operating within a temperature range of -10 to +55°C, this metre is suitable for different environments, ensuring dependability for professionals in automation and electrical fields.

Features & Benefits

• Electromechanical design enhances measurement accuracy
• Multiple measurement ranges support versatility
• Easy-to-read display allows for quick assessments
• Compact cut-out dimensions enable seamless installation
• Robust approvals confirm compliance with industry standards

Applications

• Utilised in automation systems for monitoring electrical performance
• Ideal for testing and diagnostics in electrical installations
• Employed in control panels for real-time operational data

What voltage and current ranges can be measured?

It can measure from 0 to 10V DC and 0 to 20mA.

How do I install the device in a control panel?

The device fits into a cut-out of 22.2mm height by 45mm width for easy integration.

Can it operate in extreme temperature conditions?

Yes, it operates between -10°C and +55°C, suitable for various environments.
