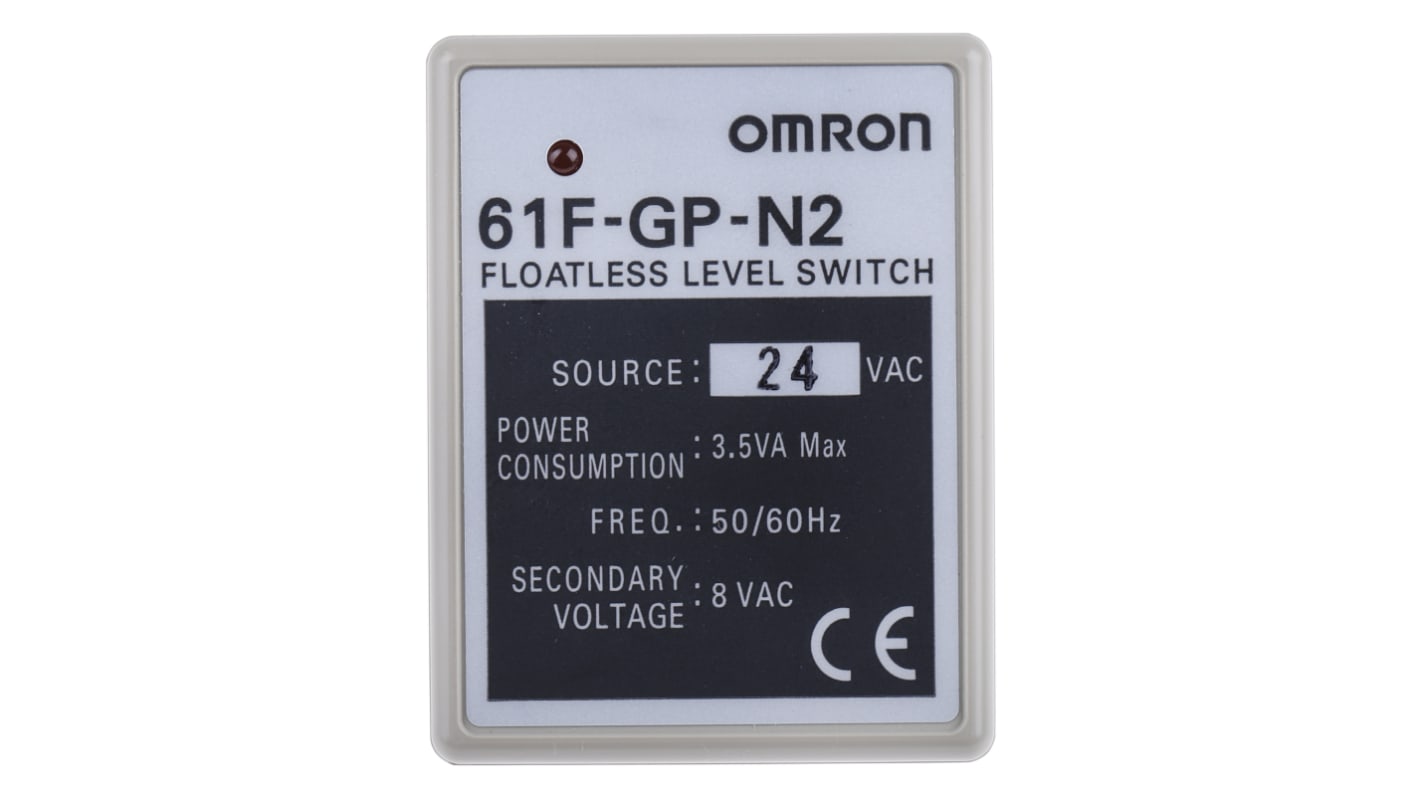

Omron Conductive Level Controller - DIN Rail, 24 V ac 1

모든 Level Controllers 열람하기
현재 비가용
RS는 이 제품을 더 이상 판매하지 않습니다.
RS 제품 번호:
818-4276
제조사 부품 번호:
61FGPN224ACCE
제조업체:
Omron
제품 정보를 선택해 유사 제품을 찾기
모두 선택

브랜드

Omron

Number of Inputs

1

Mounting Style

DIN Rail

Probe Voltage

8V ac

Supply Voltage

24 V ac

Overall Length

49.4mm

Overall Width

38mm

Overall Depth

80mm

Minimum Operating Temperature

-10°C

Maximum Operating Temperature

+55°C

Omron Level Controller


The Omron compact plug-in conductive level controller is a single input and DIN rail mount device. The single-level control is relay de-energises when the liquid level drops below the set level electrode and two-point level control is relay de-energises when the liquid level drops below the low-level electrode and energises when the level reaches the high-level electrode. It requires a 24VAC power supply. The liquid level relay reused to monitor the levels of conductive liquids and are available in Up/Down, Minimum, Maximum and Fill/Empty variations. Liquid level relays are straightforward to install and safe to use.

Features and Benefits


Inter electrode voltage is 8VAC
Power consumption approximately is 3.5VA maximum
Operating resistance is 4kohm ON
Ideal for level control of any conductive liquid
Easy installation on DIN rail
Low voltage (AC) electrodes
Full surge protection
Response time Operate: 80ms max and Release: 160ms max.

Applications


Monitoring and control of liquid levels
Protection of pumps against dry running
Ability to detect liquid leaks in a systems
Control of media mixing ratios
Control of liquid levels

Certifications


UL approved
CSA certified
