Omron 61F-LS-CP11 Series Level Controller - 3 240V ac-Rated Relay

RS 제품 번호:: 284-5948
제조사 부품 번호:: 61F-LS-CP11-SRA
제조업체:: Omron

Omron 61F-LS-CP11 Series Level Controller - 3 240V ac-Rated Relay

대량 구매 할인 기용 가능

Subtotal (1 unit)*

₩291,486.00

현재 액세스할 수 없는 재고 정보 - 나중에 다시 확인해 주세요.

수량	한팩당
1 - 2	₩291,486.00
3 - 4	₩285,655.50
5 - 9	₩281,287.50
10 +	₩276,919.50

* 참고 가격: 실제 구매가격과 다를 수 있습니다

RS 제품 번호:: 284-5948
제조사 부품 번호:: 61F-LS-CP11-SRA
제조업체:: Omron

참조 문서

제정법과 컴플라이언스

제품 세부 사항

제품 정보를 선택해 유사 제품을 찾기

모두 선택	제품 정보	값
	브랜드	Omron
	Number of Inputs	3
	Product Type	Level Controller
	Probe Voltage	5V
	Overall Length	84mm
	Overall Depth	84mm
	Minimum Operating Temperature	-10°C
	Maximum Operating Temperature	70°C
	Maximum Supply Voltage	240V ac
	Overall Width	84mm
	Standards/Approvals	RCM, CAN/CSA C22.2 No.61010-1, CE, EN61010-1, EN61326-1, UL61010-1
	Hazardous Area Certification	No
	Series	61F-LS-CP11
	Sensitivity	100kΩ
	Current Rating	5A
	Output Type	Relay

	모두 선택
	브랜드 Omron
	Number of Inputs 3
	Product Type Level Controller
	Probe Voltage 5V
	Overall Length 84mm
	Overall Depth 84mm
	Minimum Operating Temperature -10°C
	Maximum Operating Temperature 70°C
	Maximum Supply Voltage 240V ac
	Overall Width 84mm
	Standards/Approvals RCM, CAN/CSA C22.2 No.61010-1, CE, EN61010-1, EN61326-1, UL61010-1
	Hazardous Area Certification No
	Series 61F-LS-CP11
	Sensitivity 100kΩ
	Current Rating 5A
	Output Type Relay

Datasheet - 61F-LS-CP11-SRA

COO (Country of Origin):: JP

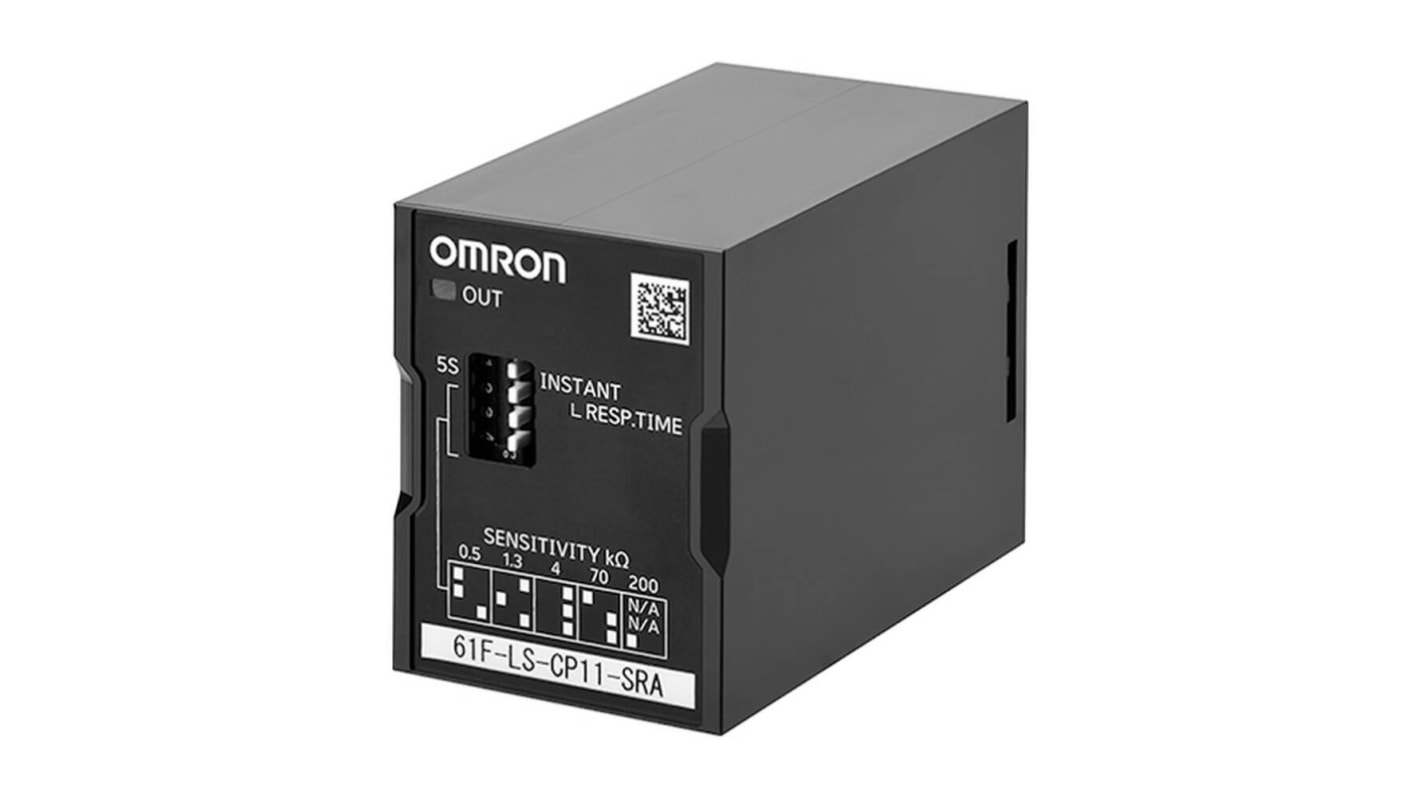

The Omron floatless level switch is suitable for high-temperature environments reaching up to 70°C. It offers easy replacement during maintenance as it is compatible with the 61F-GP-N series. Additionally, dip switches enable users to adjust the response speed and operation sensitivity, enhancing its adaptability and functionality.

Compact form allows space-saving design

Increase in number of models in which wiring of up to 4km is possible
