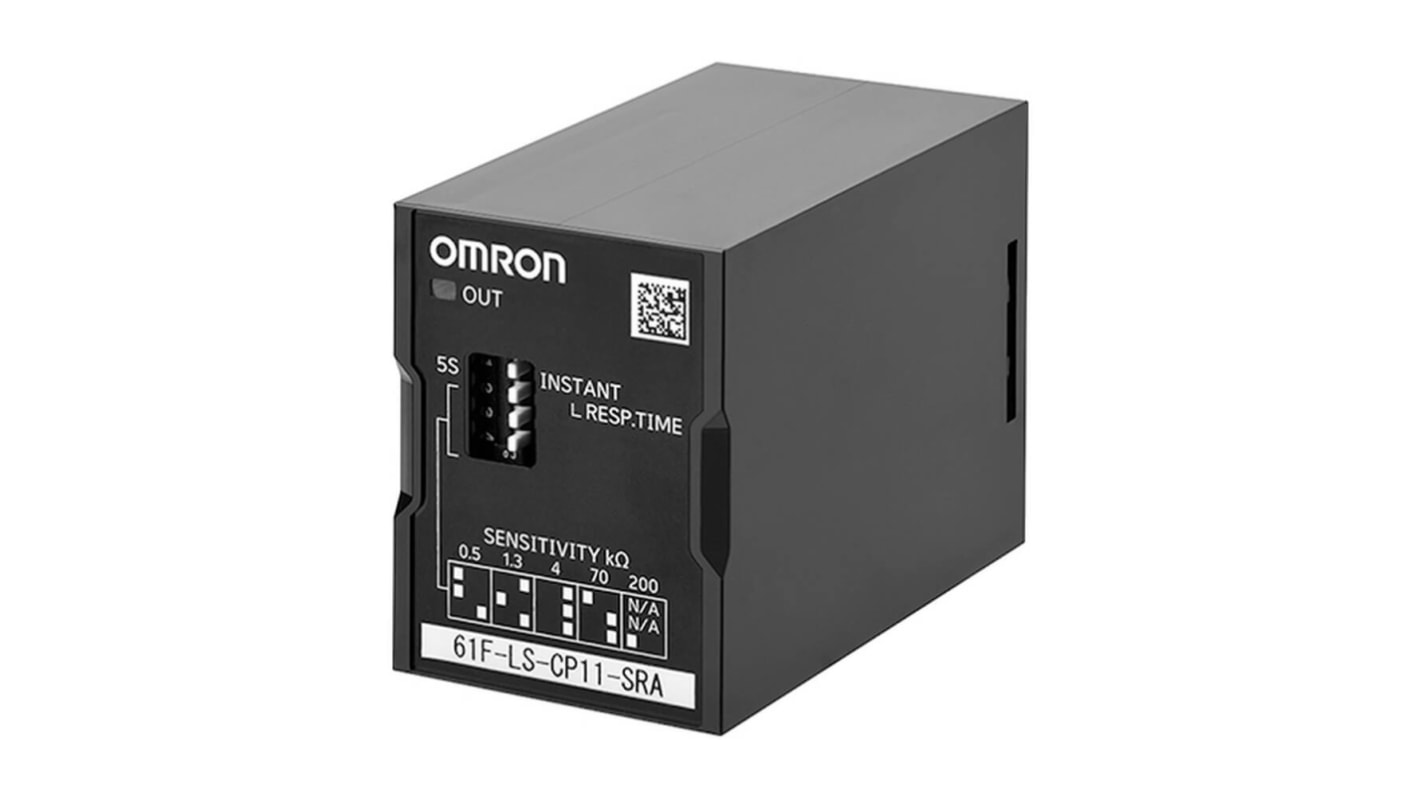

Omron 61F-LS-CP11 Series Level Controller - 3 240V ac-Rated Relay
- RS 제품 번호:
- 284-5946
- 제조사 부품 번호:
- 61F-LS-CP11-NE
- 제조업체:
- Omron
대량 구매 할인 기용 가능
Subtotal (1 unit)*
₩316,933.50
현재 액세스할 수 없는 재고 정보 - 나중에 다시 확인해 주세요.
수량 | 한팩당 |
|---|---|
| 1 - 2 | ₩316,933.50 |
| 3 - 4 | ₩310,596.00 |
| 5 - 9 | ₩305,838.00 |
| 10 + | ₩301,080.00 |
* 참고 가격: 실제 구매가격과 다를 수 있습니다
- RS 제품 번호:
- 284-5946
- 제조사 부품 번호:
- 61F-LS-CP11-NE
- 제조업체:
- Omron
사양
참조 문서
제정법과 컴플라이언스
제품 세부 사항
제품 정보를 선택해 유사 제품을 찾기
모두 선택 | 제품 정보 | 값 |
|---|---|---|
| 브랜드 | Omron | |
| Product Type | Level Controller | |
| Number of Inputs | 3 | |
| Probe Voltage | 5V | |
| Overall Length | 84mm | |
| Response Time | 80ms | |
| Overall Depth | 38mm | |
| Minimum Operating Temperature | -10°C | |
| Maximum Operating Temperature | 70°C | |
| Maximum Supply Voltage | 240V ac | |
| Standards/Approvals | EN61010-1, UL61010-1, RCM, EN61326-1, CE, CAN/CSA C22.2 No.61010-1 | |
| Overall Width | 84mm | |
| Hazardous Area Certification | No | |
| Series | 61F-LS-CP11 | |
| Current Rating | 5A | |
| Sensitivity | 100kΩ | |
| Output Type | Relay | |
| 모두 선택 | ||
|---|---|---|
브랜드 Omron | ||
Product Type Level Controller | ||
Number of Inputs 3 | ||
Probe Voltage 5V | ||
Overall Length 84mm | ||
Response Time 80ms | ||
Overall Depth 38mm | ||
Minimum Operating Temperature -10°C | ||
Maximum Operating Temperature 70°C | ||
Maximum Supply Voltage 240V ac | ||
Standards/Approvals EN61010-1, UL61010-1, RCM, EN61326-1, CE, CAN/CSA C22.2 No.61010-1 | ||
Overall Width 84mm | ||
Hazardous Area Certification No | ||
Series 61F-LS-CP11 | ||
Current Rating 5A | ||
Sensitivity 100kΩ | ||
Output Type Relay | ||
- COO (Country of Origin):
- JP
The Omron floatless level switch is suitable for high-temperature environments reaching up to 70°C. It offers easy replacement during maintenance as it is compatible with the 61F-GP-N series. Additionally, dip switches enable users to adjust the response speed and operation sensitivity, enhancing its adaptability and functionality.
Compact form allows space-saving design
Increase in number of models in which wiring of up to 4km is possible
