StarTech.com RS232 Interface Converter 1

본 제품군 열람하기

Subtotal (1 unit)*

₩100,520.00

Add to Basket
수량 선택 또는 입력
재고있음
  • 추가로 2026년 7월 13일 부터 157 개 단위 배송
더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.
수량
한팩당
1 +₩100,520.00

* 참고 가격: 실제 구매가격과 다를 수 있습니다

RS 제품 번호:
179-7973
Distrelec 제품 번호:
302-14-192
제조사 부품 번호:
ICUSB232SM3
제조업체:
StarTech.com
제품 정보를 선택해 유사 제품을 찾기
모두 선택

브랜드

StarTech.com

Bus Type

RS232

Product Type

Interface Converter

Input Port

USB Type-A (4 Pin) USB 2.0

Output Port

D Sub

Number of Ports

1

Maximum Baud Rate

921.6kbps

Desktop/Rack Mount

Desktop

Standards/Approvals

RS232, USB 1.1/2.0

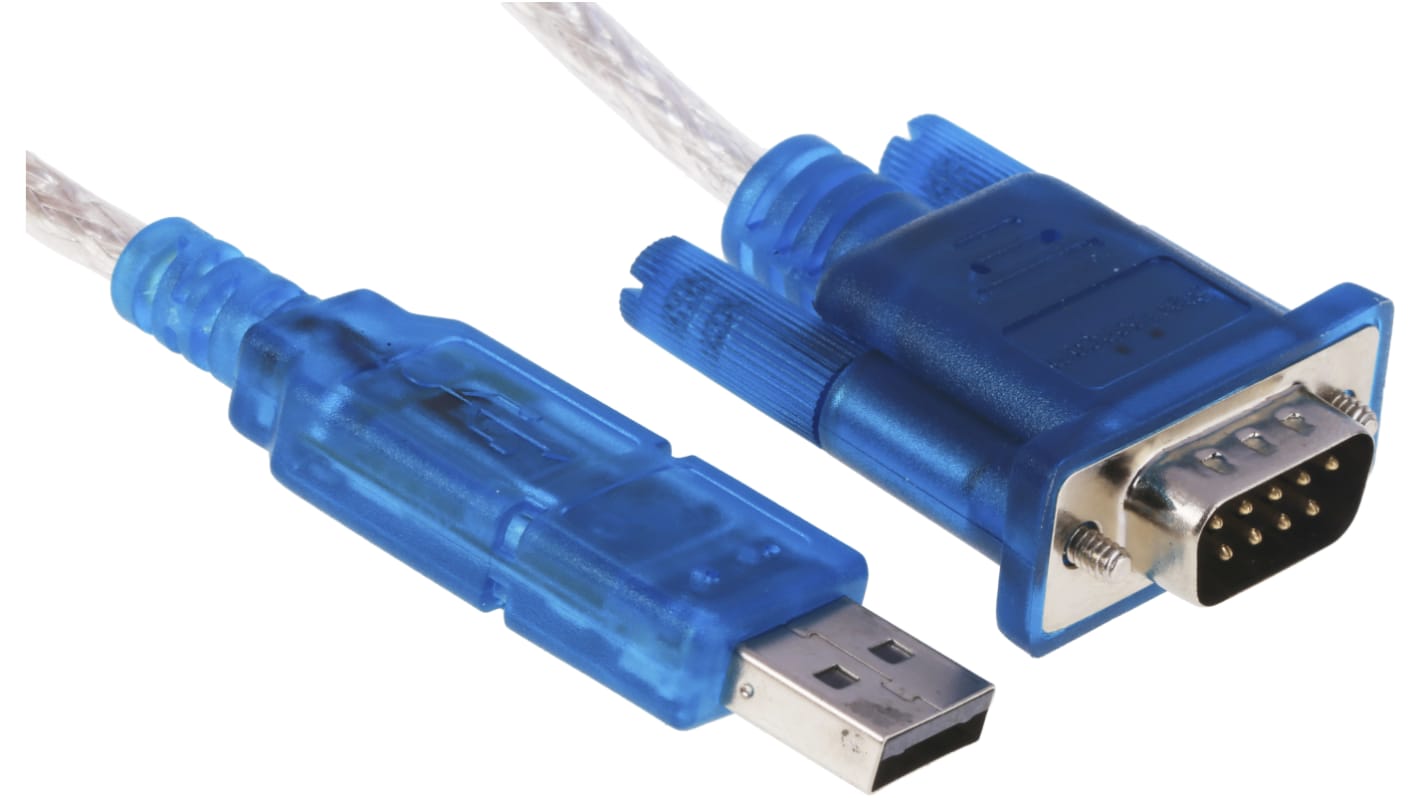

StarTech.com Interface Converter, RS232 Bus Type, USB Type-A Input Port - ICUSB232SM3


This Interface converter connects a USB host to serial RS232 equipment, enabling communication between modern PCs and legacy devices in desktop environments. It accepts a USB Type-A connection and provides a single D-sub serial output, allowing users in automation, electronics, electrical and mechanical fields to integrate serial peripherals with systems that support USB 1.1/2.0.

Features and Benefits:


• Supports 921.6kbps for high-speed serial communication • Single port design simplifies point-to-point connections • USB 2.0 input for broad host compatibility • RS232 signalling ensures direct legacy device interfacing • Desktop form factor for convenient bench use

Applications


• Suitable for configuring PLCs via serial console ports • Ideal for connecting serial sensors to USB-equipped controllers • Used with test rigs that require a single RS232 link • Can be used for programming motor controllers with serial ports • Used for data logging from legacy lab instruments

What host interfaces are supported for connectivity?


It is compatible with USB 1.1 and USB 2.0 hosts through a USB Type-A receptacle, allowing connection to a wide range of PCs and industrial controllers.

What kind of serial connector does it provide for legacy equipment?


The device outputs via a D-sub connector that implements RS232 signalling for direct connection to serial ports on industrial devices.

How many serial channels are available for integration tasks?


There is a single serial port, intended for point-to-point links where one RS232 device is required.

What baud rates can be expected for high-throughput applications?


The converter supports up to 921.6kbps, suitable for demanding serial data transfers.

Is the product intended for rack mounting in control cabinets?


The design is for desktop use, making it appropriate for bench work and workstation setups rather than rack installations.
