StarTech.com RS232 Interface Converter 2

본 제품군 열람하기

Subtotal (1 unit)*

₩140,868.00

Add to Basket
수량 선택 또는 입력
재고있음
  • 38 개 단위 배송 준비 완료
  • 추가로 2026년 6월 26일 부터 27 개 단위 배송
더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.
수량
한팩당
1 +₩140,868.00

* 참고 가격: 실제 구매가격과 다를 수 있습니다

RS 제품 번호:
179-7981
Distrelec 제품 번호:
302-52-537
제조사 부품 번호:
ICUSB2322I
제조업체:
StarTech.com
제품 정보를 선택해 유사 제품을 찾기
모두 선택

브랜드

StarTech.com

Bus Type

RS232

Product Type

Interface Converter

Input Port

1 - USB-B (4 Pin) Female

Output Port

D Sub

Number of Ports

2

Maximum Baud Rate

921.6kbps

Desktop/Rack Mount

DIN Rail

Standards/Approvals

CE/FCC

COO (Country of Origin):
TW

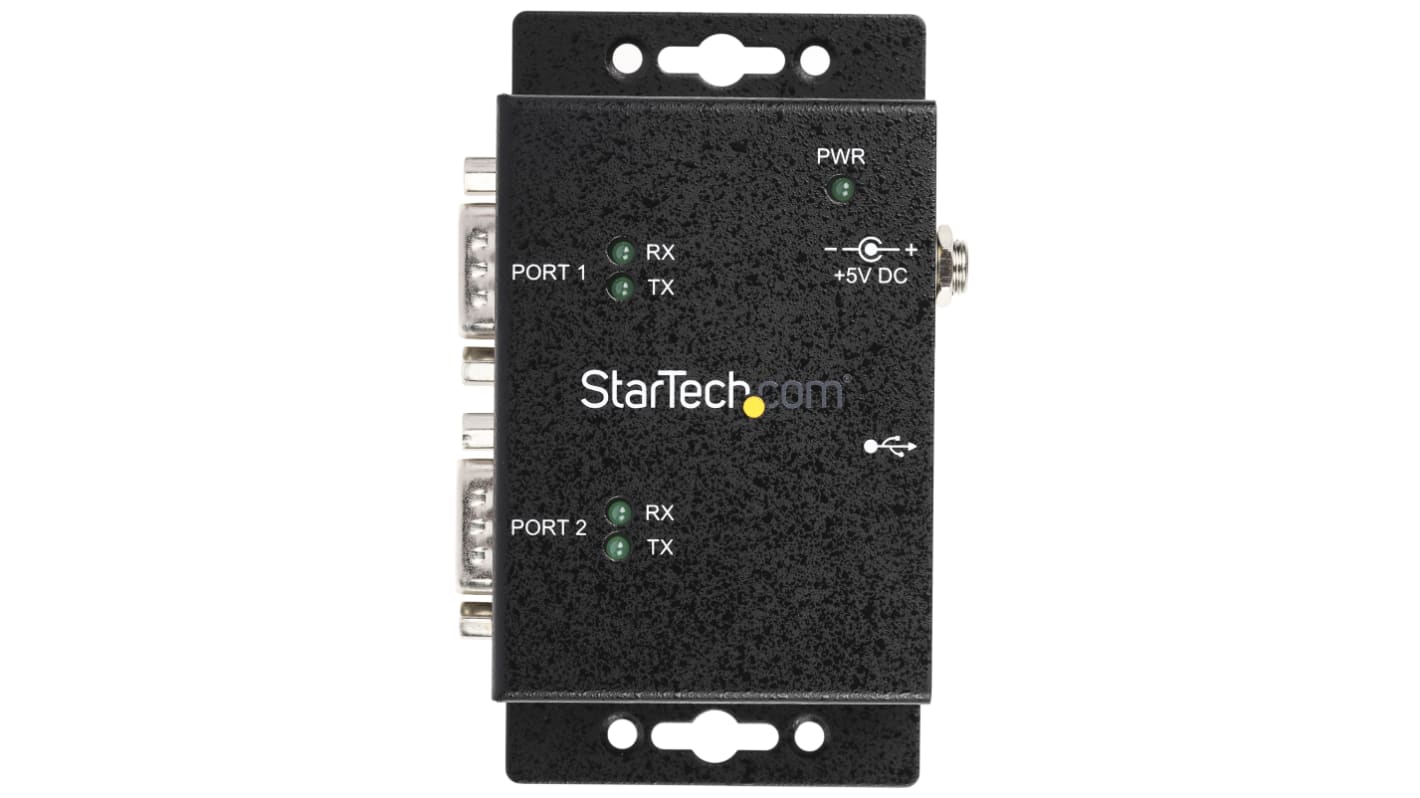

StarTech.com Interface Converter, 2 Ports, 921.6kbps Maximum Baud Rate - ICUSB2322I


This Interface converter connects USB-equipped hosts to serial RS232 devices in industrial control environments. Designed for DIN-rail mounting, it provides a Compact means to incorporate legacy serial peripherals into modern systems via a USB-B receptacle and D-Sub serial output, making integration straightforward for automation and control panels.

Features and Benefits:


• Two serial ports enabling connection of multiple devices • USB-B female input for straightforward host connection • D-Sub outputs compatible with common RS232 cabling • Supports data transfer up to 921.6 kbps for high-speed communications • DIN-rail form factor for neat panel and cabinet installation • Meets CE and FCC standards for electromagnetic performance

Applications


• Suitable for connecting PLCs to PC-based monitoring systems • Ideal for serial sensor integration in manufacturing lines • Used with SCADA I/O modules requiring a USB host Interface • Can be used for legacy instrument data collection in test rigs

How is the unit mounted inside electrical cabinets?


It is configured for DIN-rail installation, allowing secure attachment to standard 35mm rails within control cabinets.

What type of host connection does it require?


It accepts a four-pin USB-B plug from the host, providing the upstream USB Interface for serial conversion.

How many downstream serial connections are available?


There are two RS232-capable D-Sub outputs for connecting separate serial devices.

Which standards does the device comply with regarding emissions and immunity?


It conforms to CE and FCC regulatory requirements relevant to electromagnetic emissions and immunity.
