제조사부품번호

Infineon 16 kB SPI FRAM 8-Pin SOIC

RS 제품 번호:: 188-5416
제조사 부품 번호:: FM25L16B-G
제조업체:: Infineon

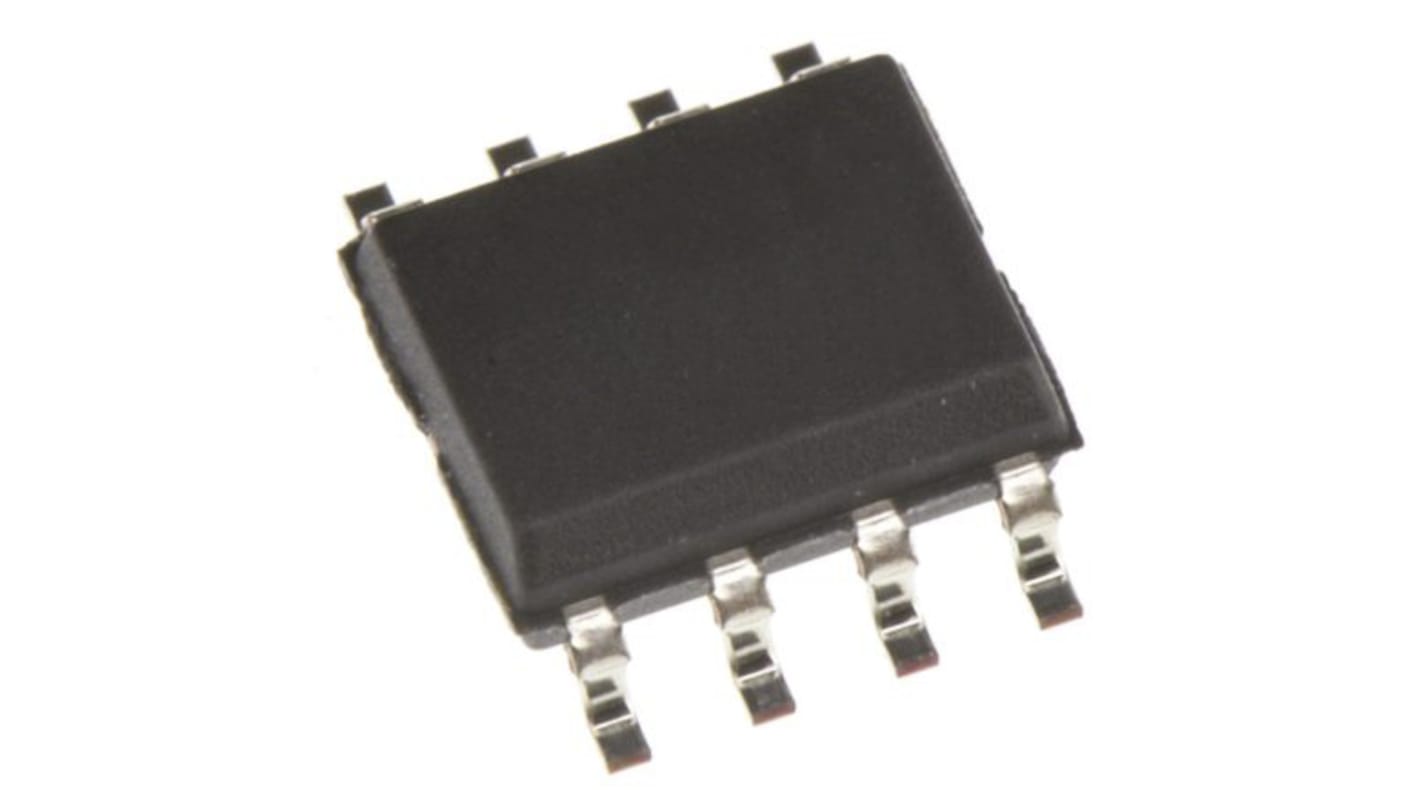

본 이미지는 참조용이오니 재확인이 필요하시면 문의해주세요.

대량 구매 할인 기용 가능

View bulk pricing options

Subtotal (1 tube of 97 units)*

₩242,306.00

291 개 단위 배송 준비 완료

더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.

수량	한팩당	Per Tube*
97 - 97	₩2,498.00	₩242,364.00
194 - 291	₩2,436.00	₩236,292.00
388 +	₩2,398.00	₩232,684.00

* 참고 가격: 실제 구매가격과 다를 수 있습니다

RS 제품 번호:: 188-5416
제조사 부품 번호:: FM25L16B-G
제조업체:: Infineon

참조 문서

제정법과 컴플라이언스

제품 세부 사항

제품 정보를 선택해 유사 제품을 찾기

모두 선택	제품 정보	값
	브랜드	Infineon
	Product Type	FRAM
	Memory Size	16kB
	Organisation	2K x 8 bit
	Interface Type	SPI
	Data Bus Width	8bit
	Maximum Random Access Time	20ns
	Mount Type	Surface
	Maximum Clock Frequency	20MHz
	Package Type	SOIC
	Pin Count	8
	Height	1.48mm
	Length	4.97mm
	Standards/Approvals	No
	Width	3.98mm
	Maximum Operating Temperature	85°C
	Maximum Supply Voltage	3.6V
	Number of Words	2k
	Automotive Standard	AEC-Q100
	Minimum Operating Temperature	-40°C
	Number of Bits per Word	8
	Minimum Supply Voltage	2.7V

	모두 선택
	브랜드 Infineon
	Product Type FRAM
	Memory Size 16kB
	Organisation 2K x 8 bit
	Interface Type SPI
	Data Bus Width 8bit
	Maximum Random Access Time 20ns
	Mount Type Surface
	Maximum Clock Frequency 20MHz
	Package Type SOIC
	Pin Count 8
	Height 1.48mm
	Length 4.97mm
	Standards/Approvals No
	Width 3.98mm
	Maximum Operating Temperature 85°C
	Maximum Supply Voltage 3.6V
	Number of Words 2k
	Automotive Standard AEC-Q100
	Minimum Operating Temperature -40°C
	Number of Bits per Word 8
	Minimum Supply Voltage 2.7V

Datasheet FM25L16B-G

COO (Country of Origin):: US

Infineon FRAM, 16kB Memory Size, 3.6V Maximum Supply Voltage - FM25L16B-G

This FRAM is a non-volatile memory device intended for serial-interface data storage in constrained electronic systems. It operates from a low-voltage supply and communicates via a serial peripheral interface, making it suitable for applications requiring rapid writes and frequent data updates in embedded and automotive environments.

Features and Benefits:

• 16 kB storage capacity enables frequent data logging
• 20 ns random access time supports rapid read operations
• 20 MHz clock rate allows fast SPI transfers
• 8-bit data bus simplifies byte-oriented interfacing
• AEC‑Q100 grading facilitates automotive system integration
• 2.7 V-3.6V operating range reduces power-supply complexity

Applications

• Suitable for automotive sensor configuration retention
• Used with microcontrollers for run-time parameter storage
• Ideal for recorder modules needing frequent writes
• Can be used for energy-harvesting data buffers
• Appropriate for industrial control non-volatile logging

What package and mounting style does it use?

It is supplied in an 8-pin SOIC package designed for surface-mount assembly on PCBs.

What environmental temperature range is supported?

It functions across an industrial temperature span from -40°C to 85°C for wide-ranging ambient conditions.

How is memory organised for software addressing?

The array is arranged as 2K words of 8 bits, allowing byte-addressable access across 2k locations.

What are the physical envelope dimensions for layout planning?

The package measures 4.97mm in length and 3.98mm in width with a maximum height of 1.48 mm.
