Infineon 16 kB SPI Serial (SPI) Automotive FRAM 8-Pin SOIC-8, FM25C160B-G

RS 제품 번호:: 273-7384
제조사 부품 번호:: FM25C160B-G
제조업체:: Infineon

Infineon 16 kB SPI Serial (SPI) Automotive FRAM 8-Pin SOIC-8, FM25C160B-G

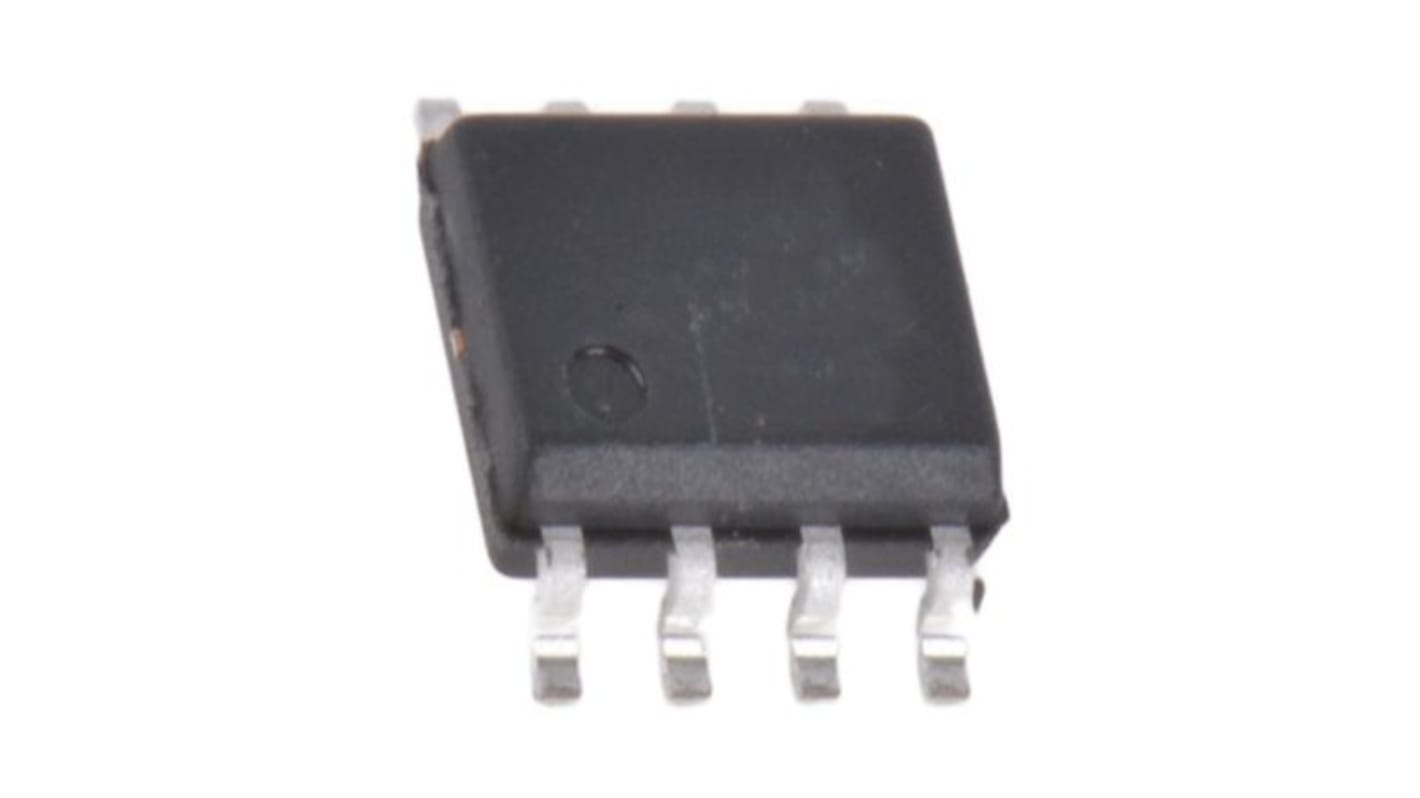

본 이미지는 참조용이오니 재확인이 필요하시면 문의해주세요.

대량 구매 할인 기용 가능

View bulk pricing options

Subtotal (1 tube of 97 units)*

₩286,732.00

1,843 개 단위 배송 준비 완료

더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.

수량	한팩당	Per Tube*
97 - 97	₩2,956.00	₩286,770.00
194 +	₩2,868.00	₩278,176.00

* 참고 가격: 실제 구매가격과 다를 수 있습니다

RS 제품 번호:: 273-7384
제조사 부품 번호:: FM25C160B-G
제조업체:: Infineon

참조 문서

제정법과 컴플라이언스

제품 세부 사항

제품 정보를 선택해 유사 제품을 찾기

모두 선택	제품 정보	값
	브랜드	Infineon
	Product Type	Serial (SPI) Automotive FRAM
	Memory Size	16kB
	Organisation	2K x 8 bit
	Interface Type	SPI
	Data Bus Width	8bit
	Maximum Clock Frequency	20MHz
	Package Type	SOIC-8
	Pin Count	8
	Standards/Approvals	RoHS
	Maximum Operating Temperature	+85°C
	Number of Words	2k
	Minimum Supply Voltage	4.5V
	Automotive Standard	AEC-Q100 Grade 1
	Maximum Supply Voltage	5.5V
	Number of Bits per Word	8
	Minimum Operating Temperature	-40°C

	모두 선택
	브랜드 Infineon
	Product Type Serial (SPI) Automotive FRAM
	Memory Size 16kB
	Organisation 2K x 8 bit
	Interface Type SPI
	Data Bus Width 8bit
	Maximum Clock Frequency 20MHz
	Package Type SOIC-8
	Pin Count 8
	Standards/Approvals RoHS
	Maximum Operating Temperature +85°C
	Number of Words 2k
	Minimum Supply Voltage 4.5V
	Automotive Standard AEC-Q100 Grade 1
	Maximum Supply Voltage 5.5V
	Number of Bits per Word 8
	Minimum Operating Temperature -40°C

Datasheet - FM25C160B-G

COO (Country of Origin):: TH

Infineon Serial (SPI) Automotive FRAM, 16 kB Memory Size, 20MHz Maximum Clock Frequency - FM25C160B-G

This serial (SPI) automotive FRAM is a non-volatile memory device designed for automotive electronic systems that require frequent writes and long-term data retention. It operates over a wide temperature range suitable for vehicle environments and connects via a serial peripheral Interface to conserve board space and wiring. The device comes in a Compact SOIC-8 package intended for mounting on standard electronic modules.

Features and Benefits:

• 20MHz clock provides fast serial transfers for quick data logging
• 4.5V to 5.5V supply range enables integration with common vehicle power rails
• -40 to +85°C tolerance maintains operation across automotive temperature extremes
• 8-bit data bus supports byte-oriented read and write transactions
• AEC‑Q100 Grade 1 qualification ensures suitability for demanding automotive roles

Applications

• Suitable for storing calibration parameters in control units
• Ideal for non-volatile data logging in telematics modules
• Used with sensor Interface circuits for fault and event records
• Can be used for configuration memory in body electronics
• Suitable for ECU backup memory requiring high write endurance

What supply voltages will operate the device?

It functions with supply voltages between 4.5V and 5.5V.

Which package should I plan for on the PCB?

The component is supplied in an SOIC-8 package compatible with standard 8-pin footprints.

How many memory words and organisation does it provide?

The memory is organised as 2K words of 8 bits each.

What approvals relate to environmental directives?

It carries RoHS approval for restricted substance compliance.
