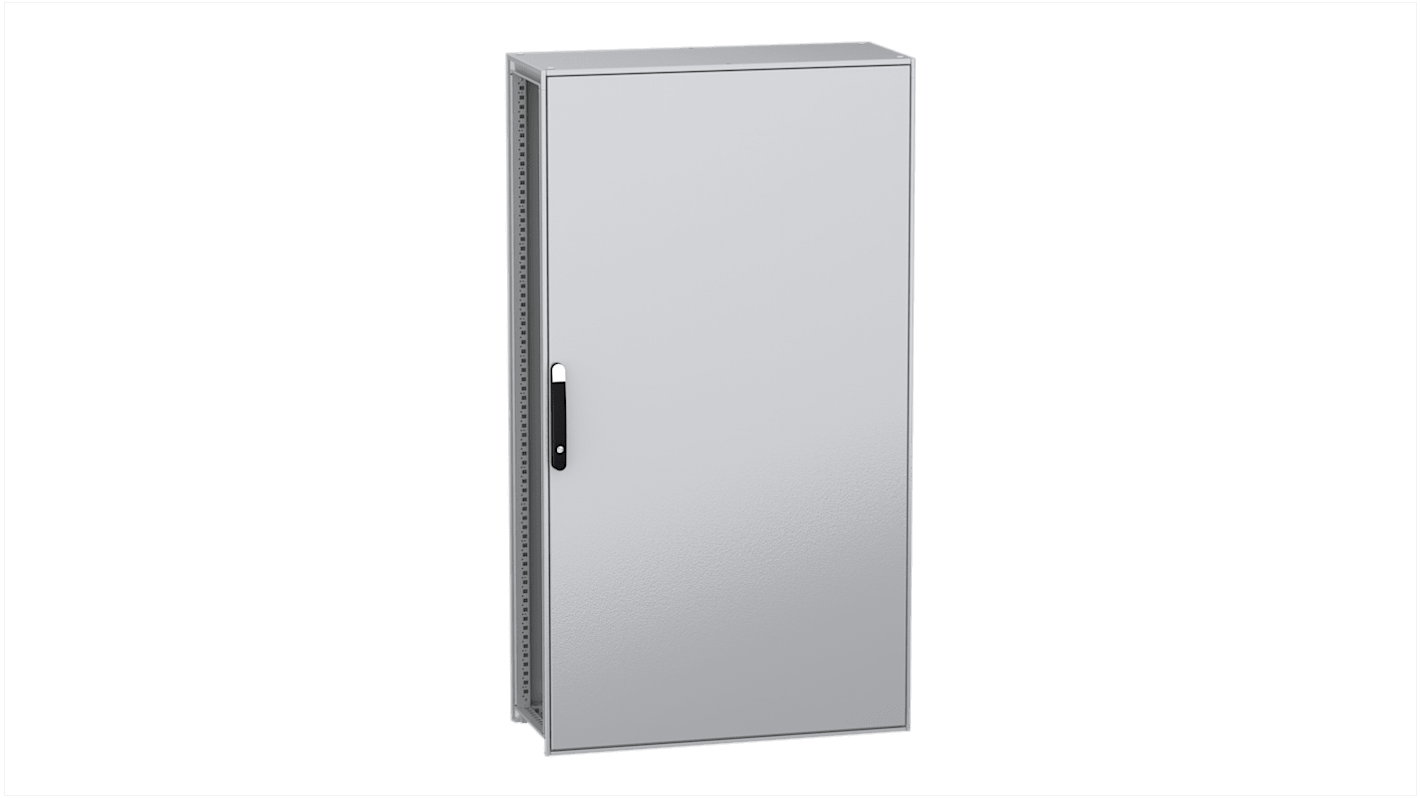

Schneider Electric PanelSeT Series Steel 1-Door Floor Standing Enclosure, Plain Door, IP55 400 mm, 1 m 1.8 m
- RS 제품 번호:
- 285-5502
- 제조사 부품 번호:
- NSYSFN181040P
- 제조업체:
- Schneider Electric
Subtotal (1 unit)*
₩8,054,306.00
제조사가 재고 비축중
- 2026년 12월 09일 부터 배송 준비 완료
더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.
수량 | 한팩당 |
|---|---|
| 1 + | ₩8,054,306.00 |
* 참고 가격: 실제 구매가격과 다를 수 있습니다
Our Better World range features products that make it easy for you to make a greener product choice you can trust.
Learn more about RS Better World products
- RS 제품 번호:
- 285-5502
- 제조사 부품 번호:
- NSYSFN181040P
- 제조업체:
- Schneider Electric
사양
참조 문서
제정법과 컴플라이언스
제품 세부 사항
제품 정보를 선택해 유사 제품을 찾기
모두 선택 | 제품 정보 | 값 |
|---|---|---|
| 브랜드 | Schneider Electric | |
| Number of Doors | 1 | |
| Product Type | Floor Standing Enclosure | |
| IP Rating | IP55 | |
| Series | PanelSeT | |
| Door Type | Plain | |
| Body Material | Steel | |
| Colour | Grey | |
| External Width | 1m | |
| External Depth | 400mm | |
| External Height | 1.8m | |
| Colour RAL | RAL 7035 | |
| Mounting plate | Yes | |
| NEMA Rating | NEMA 3R/12 | |
| Standards/Approvals | EU RoHS, RoHS, IEC 62208, REACH | |
| Better World Claim | Designed for Disassembly | |
| Better World Product | Yes | |
| IK Rating | IK10 | |
| 모두 선택 | ||
|---|---|---|
브랜드 Schneider Electric | ||
Number of Doors 1 | ||
Product Type Floor Standing Enclosure | ||
IP Rating IP55 | ||
Series PanelSeT | ||
Door Type Plain | ||
Body Material Steel | ||
Colour Grey | ||
External Width 1m | ||
External Depth 400mm | ||
External Height 1.8m | ||
Colour RAL RAL 7035 | ||
Mounting plate Yes | ||
NEMA Rating NEMA 3R/12 | ||
Standards/Approvals EU RoHS, RoHS, IEC 62208, REACH | ||
Better World Claim Designed for Disassembly | ||
Better World Product Yes | ||
IK Rating IK10 | ||
제외
- COO (Country of Origin):
- FR
The Schneider Electric floor-standing modular electrical enclosure is a versatile and durable solution for all your enclosure needs. With a height of 1800mm, width of 1000mm, and depth of 400mm, it offers ample space for your components while ensuring protection with its IP55 rating.
Constructed from decarbonized steel for durability and longevity
Perforated structure with a pitch of 25mm for efficient airflow
Comes with a mounting plate, sliding rails, and quick-fixing brackets for easy installation
Doors, panels, and roof built into the structure for added stability
Reversible door with a 4-point lock and handle for convenience and security
Complies with IEC 62208 standards and offers NEMA 3R/12 and IP55 protection
