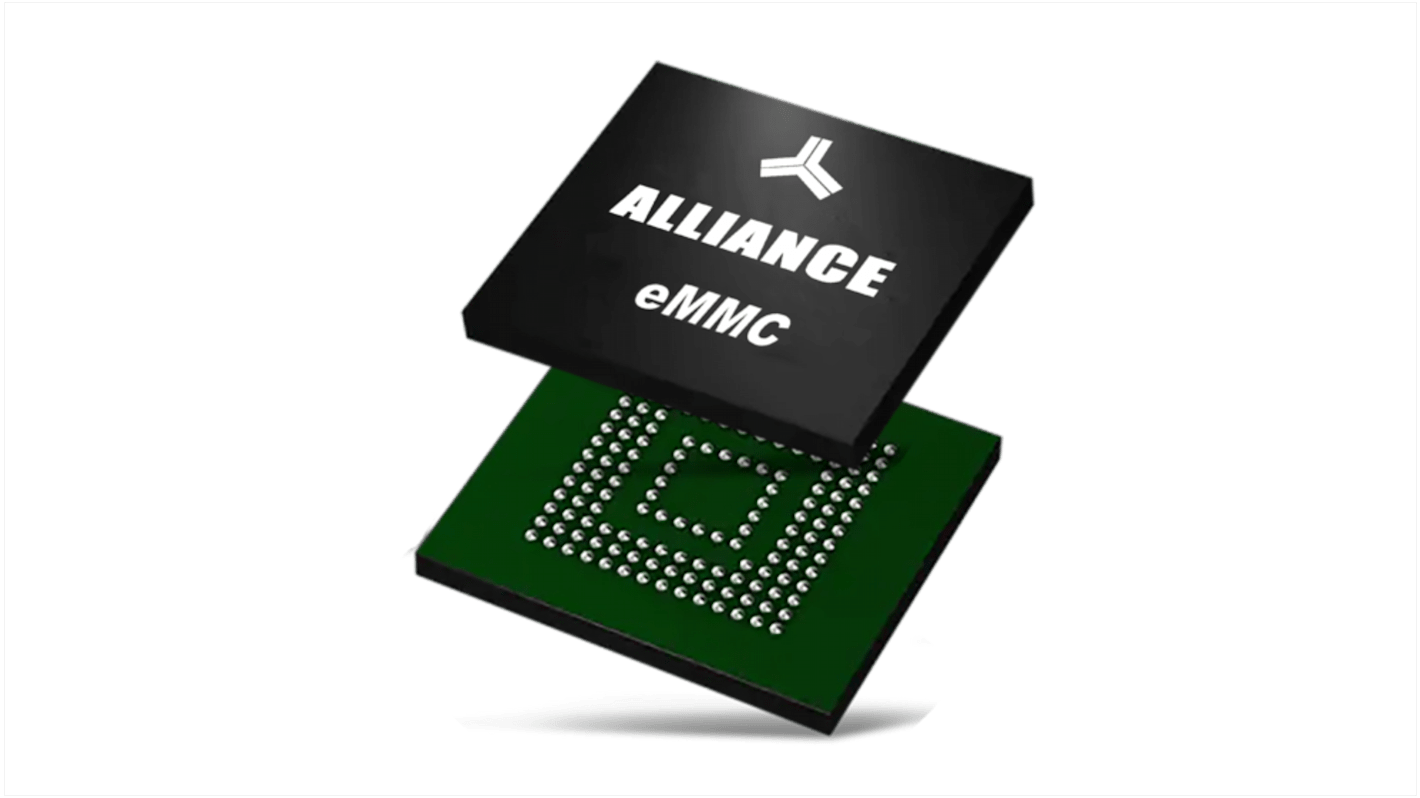

Alliance Memory NAND 16 GB EMMC Flash Memory 153-Pin FBGA

본 이미지는 참조용이오니 재확인이 필요하시면 문의해주세요.

모든 Flash Memory 열람하기
대량 구매 할인 기용 가능

Subtotal (1 unit)*

₩19,646.00

Add to Basket
수량 선택 또는 입력
마지막 RS 재고
  • 최종적인 9 개 unit(s)이 배송 준비 됨
수량
한팩당
1 - 9₩19,646.00
10 - 24₩19,063.20
25 - 49₩18,499.20
50 - 99₩18,123.20
100 +₩17,766.00

* 참고 가격: 실제 구매가격과 다를 수 있습니다

RS 제품 번호:
259-2116
제조사 부품 번호:
ASFC16G31M-51BIN
제조업체:
Alliance Memory
제품 정보를 선택해 유사 제품을 찾기
모두 선택

브랜드

Alliance Memory

Product Type

Flash Memory

Memory Size

16GB

Interface Type

EMMC

Package Type

FBGA

Pin Count

153

Organisation

2G x 8

Mount Type

Surface

Cell Type

NAND

Minimum Supply Voltage

2.7V

Maximum Supply Voltage

3.6V

Minimum Operating Temperature

-40°C

Maximum Operating Temperature

85°C

Height

1mm

Width

13 mm

Standards/Approvals

RoHS, JEDEC

Length

11.5mm

Automotive Standard

No

The Alliance Memory 16GB eMMC device (AS16FC) is a high performance embedded MMC solution designed for embedded NAND flash applications. It supports eMMC/JEDEC 5.1 industry standard and is backward compatible with eMMC 4.5 & 5.0 version.

Supports features of eMMC5.1 which are defined in JEDEC standard

Supports Enhanced Strobe feature of new eMMC standard of version 5.1

Full backward compatibility with previous eMMC 4.41/4.5/5.0 specification and multi media card system specification (1bit data bus, multi-eMMC systems)

Programmable bus width is 1bit (Default), 4bit and 8bit data bus

MMC I/F clock Frequency ranges from 0 ∼ 200MHz

MMC I/F boot Frequency ranges from 0 ∼ 52MHz

Operating temperature ranges from -40OC ∼ 85OC

Storage temperature ranges from -40OC ∼ 85OC
