Ideal Industries 85 Series RJ45 Connector Male, Clip, Cat5e Shielded 1 Port 8 Way
- RS 제품 번호:
- 205-121
- 제조사 부품 번호:
- 85-365
- 제조업체:
- Ideal Industries
대량 구매 할인 기용 가능
Subtotal (1 Box of 25 units)*
₩44,850.00
현재 액세스할 수 없는 재고 정보 - 나중에 다시 확인해 주세요.
Box(es) | Per Box | 한팩당* |
|---|---|---|
| 1 - 3 | ₩44,850.00 | ₩1,794.00 |
| 4 + | ₩41,262.00 | ₩1,649.70 |
* 참고 가격: 실제 구매가격과 다를 수 있습니다
- RS 제품 번호:
- 205-121
- 제조사 부품 번호:
- 85-365
- 제조업체:
- Ideal Industries
사양
참조 문서
제정법과 컴플라이언스
제품 세부 사항
제품 정보를 선택해 유사 제품을 찾기
모두 선택 | 제품 정보 | 값 |
|---|---|---|
| 브랜드 | Ideal Industries | |
| Ethernet Connector Type | RJ45 | |
| Product Type | RJ45 Connector | |
| LAN Category | Cat5e | |
| Number of Ports | 1 | |
| Mount Type | Clip | |
| Number of Ways | 8 | |
| Connector Type | RJ45 | |
| Connector Gender | Male | |
| Shield Type | Shielded | |
| LED | No | |
| Standards/Approvals | No | |
| Hazardous Area Certification | NO | |
| Series | 85 | |
| 모두 선택 | ||
|---|---|---|
브랜드 Ideal Industries | ||
Ethernet Connector Type RJ45 | ||
Product Type RJ45 Connector | ||
LAN Category Cat5e | ||
Number of Ports 1 | ||
Mount Type Clip | ||
Number of Ways 8 | ||
Connector Type RJ45 | ||
Connector Gender Male | ||
Shield Type Shielded | ||
LED No | ||
Standards/Approvals No | ||
Hazardous Area Certification NO | ||
Series 85 | ||
제외
- COO (Country of Origin):
- TW

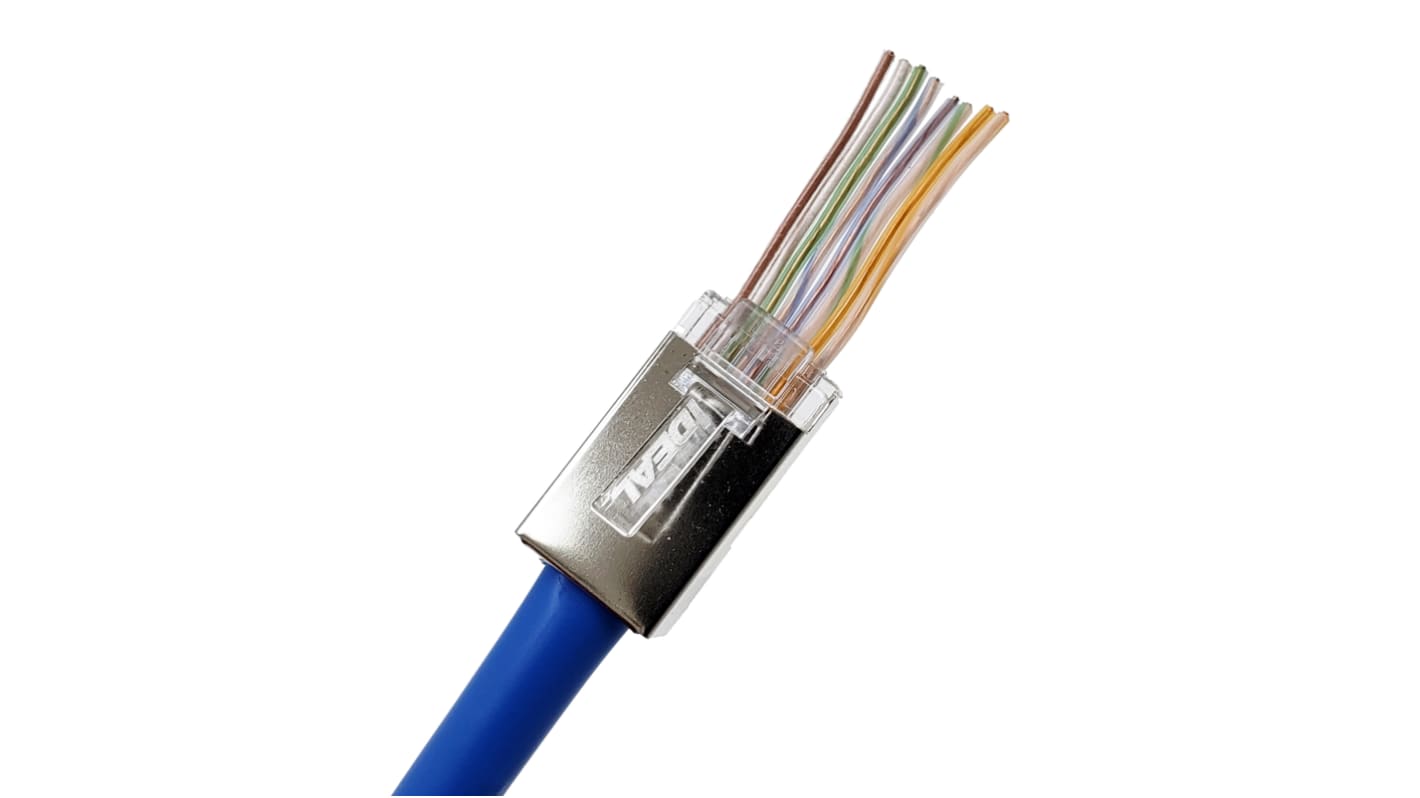

CAT5e Shielded Feed-Thru RJ45 Connectors (25/PK)
IDEAL® Shielded Feed-Thru RJ45 connectors for CAT5e cables simplify cable assembly by enabling the user to quickly verify the conductors are in the correct order before crimping the connector. Compatible with twisted pair cables with an insulated conductor range of 0.035” - 0.041” diameter. When used with the IDEAL® FT-45™ tool (30-495), the wire is precision cut flush with the modular plug’s face, thanks to its patented design that prevents accidental contact between adjacent conductors or with the mating jack. This connector features an integrated metal shell that ensures a continuous path for cable shielding, allowing it to pass through the connector and into the device’s shielded port. Trust IDEAL® Feed-Thru RJ45 connectors for accurate and reliable performance in all PoE and data applications.
Verify conductors are in the correct order prior to crimping
Feed-Thru, single-piece RJ45 connectors enable fast, simple installation with less wasted materials
Designed for best performance when used with the IDEAL® FT-45™ Crimp Tool (30-495)
Compatible with CAT5e cables with conductors up to 0.041" maximum insulated diameter
Simply fold the cable's foil back over the jacket, or wrap the drain wire, to ensure conductivity with the plug shield
50 micro-inch gold plating on contact mating area for long term reliability in connectivity, even after hundreds of mating cycles
Max cable jacket outer diameter of .270"
UL Listed
PoE, PoE+ and PoE++ compatible. IEEE 802.3af/at/bt
Pack of 25 connectors
