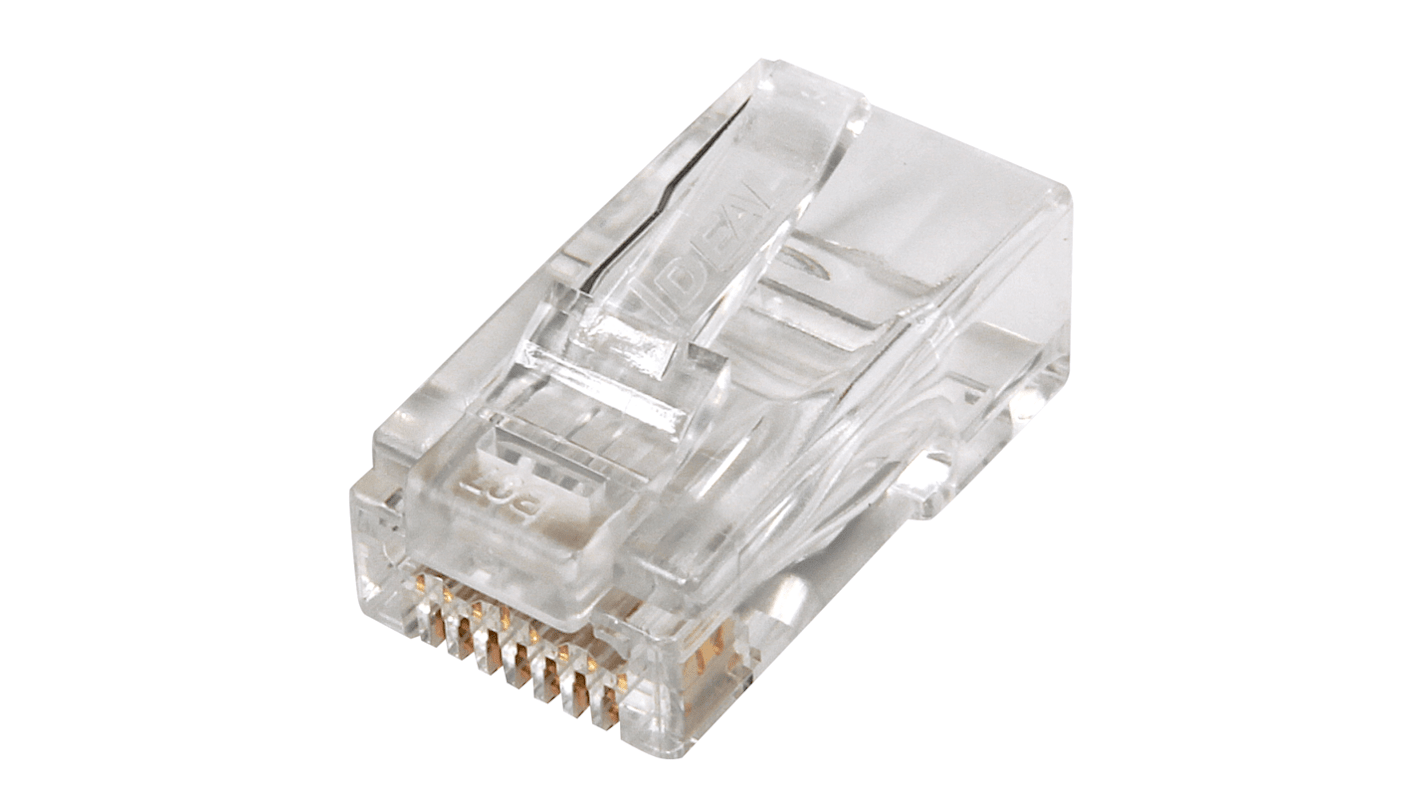

Ideal Industries 85 Series RJ45 Connector Male, Clip, Cat6a Unshielded 1 Port 8 Way
- RS 제품 번호:
- 205-128
- 제조사 부품 번호:
- 85-385
- 제조업체:
- Ideal Industries
Subtotal (1 Box of 50 units)*
₩51,675.00
현재 액세스할 수 없는 재고 정보 - 나중에 다시 확인해 주세요.
Box(es) | Per Box | 한팩당* |
|---|---|---|
| 1 + | ₩51,675.00 | ₩1,033.50 |
* 참고 가격: 실제 구매가격과 다를 수 있습니다
- RS 제품 번호:
- 205-128
- 제조사 부품 번호:
- 85-385
- 제조업체:
- Ideal Industries
사양
참조 문서
제정법과 컴플라이언스
제품 세부 사항
제품 정보를 선택해 유사 제품을 찾기
모두 선택 | 제품 정보 | 값 |
|---|---|---|
| 브랜드 | Ideal Industries | |
| Ethernet Connector Type | RJ45 | |
| Product Type | RJ45 Connector | |
| LAN Category | Cat6a | |
| Number of Ports | 1 | |
| Mount Type | Clip | |
| Number of Ways | 8 | |
| Connector Gender | Male | |
| Connector Type | RJ45 | |
| Shield Type | Unshielded | |
| LED | No | |
| Hazardous Area Certification | NO | |
| Standards/Approvals | No | |
| Series | 85 | |
| 모두 선택 | ||
|---|---|---|
브랜드 Ideal Industries | ||
Ethernet Connector Type RJ45 | ||
Product Type RJ45 Connector | ||
LAN Category Cat6a | ||
Number of Ports 1 | ||
Mount Type Clip | ||
Number of Ways 8 | ||
Connector Gender Male | ||
Connector Type RJ45 | ||
Shield Type Unshielded | ||
LED No | ||
Hazardous Area Certification NO | ||
Standards/Approvals No | ||
Series 85 | ||
제외
- COO (Country of Origin):
- TW
CAT6a/6 Feed-Thru RJ45 Connectors Large Diameter (50/JR)
IDEAL® Large Diameter Feed-Thru RJ45 connectors for CAT6 and CAT6A cables simplify cable assembly by enabling the user to quickly verify the conductors are in the correct order before crimping the connector. Compatible with twisted pair cables with an insulated conductor range of 0.040” - 0.048” diameter. When used with the IDEAL® FT-45™ tool (30-495), the wire is precision cut flush with the modular plug’s face, thanks to its patented design that prevents accidental contact between adjacent conductors or with the mating jack. A staggered wire and pin configuration reduce crosstalk and simplify assembly. Trust IDEAL® Feed-Thru RJ45 connectors for accurate and reliable performance in all PoE and data applications.
Staggered conductor and pin design to accommodate large diameter cables
For twisted pair cables with insulated conductors 0.040” to 0.048 ” in diameter
Feed-Thru, single-piece RJ45 connectors enable fast, simple installation and conductor order verification with less wasted materials
Designed for best performance when used with the IDEAL® FT-45™ Crimp Tool (30-495)
50 micro-inch gold plating on contact mating area for long term reliability in connectivity, even after hundreds of mating cycles
Feed-Thru design minimizes untwisting of pairs inside the connector body to 1/4"
Max cable jacket outer diameter of .320"
UL Listed
PoE, PoE+ and PoE++ compatible. IEEE 802.3af/at/bt
Pack of 50 connectors
