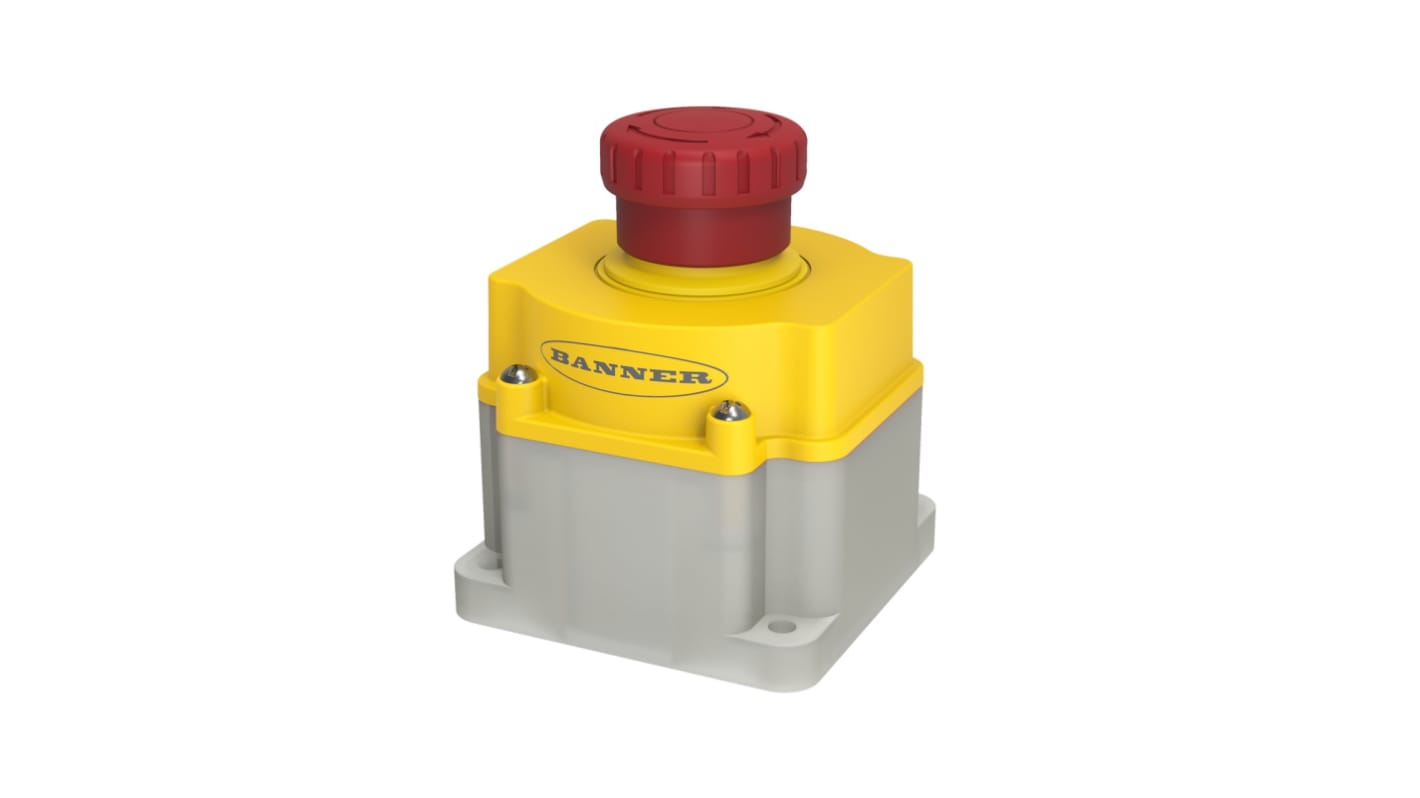

Banner SSA-EB Series Twist Release Emergency Stop Push Button, Surface Mount, 1 NC, IP65
- RS 제품 번호:
- 232-5270
- 제조사 부품 번호:
- SSA-EB1PL-12ED1Q8
- 제조업체:
- Banner
Subtotal (1 unit)*
₩402,220.00
제조사가 재고 비축중
- 2026년 11월 04일 부터 배송 준비 완료
더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.
수량 | 한팩당 |
|---|---|
| 1 + | ₩402,220.00 |
* 참고 가격: 실제 구매가격과 다를 수 있습니다
- RS 제품 번호:
- 232-5270
- 제조사 부품 번호:
- SSA-EB1PL-12ED1Q8
- 제조업체:
- Banner
사양
참조 문서
제정법과 컴플라이언스
제품 세부 사항
제품 정보를 선택해 유사 제품을 찾기
모두 선택 | 제품 정보 | 값 |
|---|---|---|
| 브랜드 | Banner | |
| Product Type | Emergency Stop Push Button | |
| Mount Type | Surface Mount | |
| Contact Configuration | 1 NC | |
| Housing Material | Polycarbonate, Polyamide, Aluminium | |
| Push Button Actuation | Twist Release | |
| Series | SSA-EB | |
| Illuminated | No | |
| IP Rating | IP65 | |
| Terminal Type | M12 Connector | |
| Contact DC Voltage | 75V dc | |
| Contact AC Voltage | 60V ac | |
| Number of Auxiliary Contacts | 1 | |
| Head Style | Square | |
| Contact Current | 2A | |
| Switch Configuration | Latch | |
| Standards/Approvals | ANSI B11.19, NFPA 79, IEC/EN 60204-1 | |
| Hazardous Area Certification | No | |
| Safety Contacts | 2 | |
| 모두 선택 | ||
|---|---|---|
브랜드 Banner | ||
Product Type Emergency Stop Push Button | ||
Mount Type Surface Mount | ||
Contact Configuration 1 NC | ||
Housing Material Polycarbonate, Polyamide, Aluminium | ||
Push Button Actuation Twist Release | ||
Series SSA-EB | ||
Illuminated No | ||
IP Rating IP65 | ||
Terminal Type M12 Connector | ||
Contact DC Voltage 75V dc | ||
Contact AC Voltage 60V ac | ||
Number of Auxiliary Contacts 1 | ||
Head Style Square | ||
Contact Current 2A | ||
Switch Configuration Latch | ||
Standards/Approvals ANSI B11.19, NFPA 79, IEC/EN 60204-1 | ||
Hazardous Area Certification No | ||
Safety Contacts 2 | ||
- COO (Country of Origin):
- US
The Banner mushroom-style electro-mechanical emergency stop push buttons are rugged design, easy installation with no assembly or individual wiring required. “Safe Break Action” ensures normally closed (NC) contacts will open if the contact block is separated from the actuator. It has a flat mounting base for ease of mounting without requiring an additional enclosure.
Quick disconnect
Contact rating 2 A @ 24 V dc
Contact quantity 2 NC, 1 NO
The EZ-LIGHT® illumination logic allows for easy identification of a pushed/actuated button. An armed button will light a steady yellow or green illumination or off (depending on model), a pushed/actuated button is indicated by a red illumination flashing
