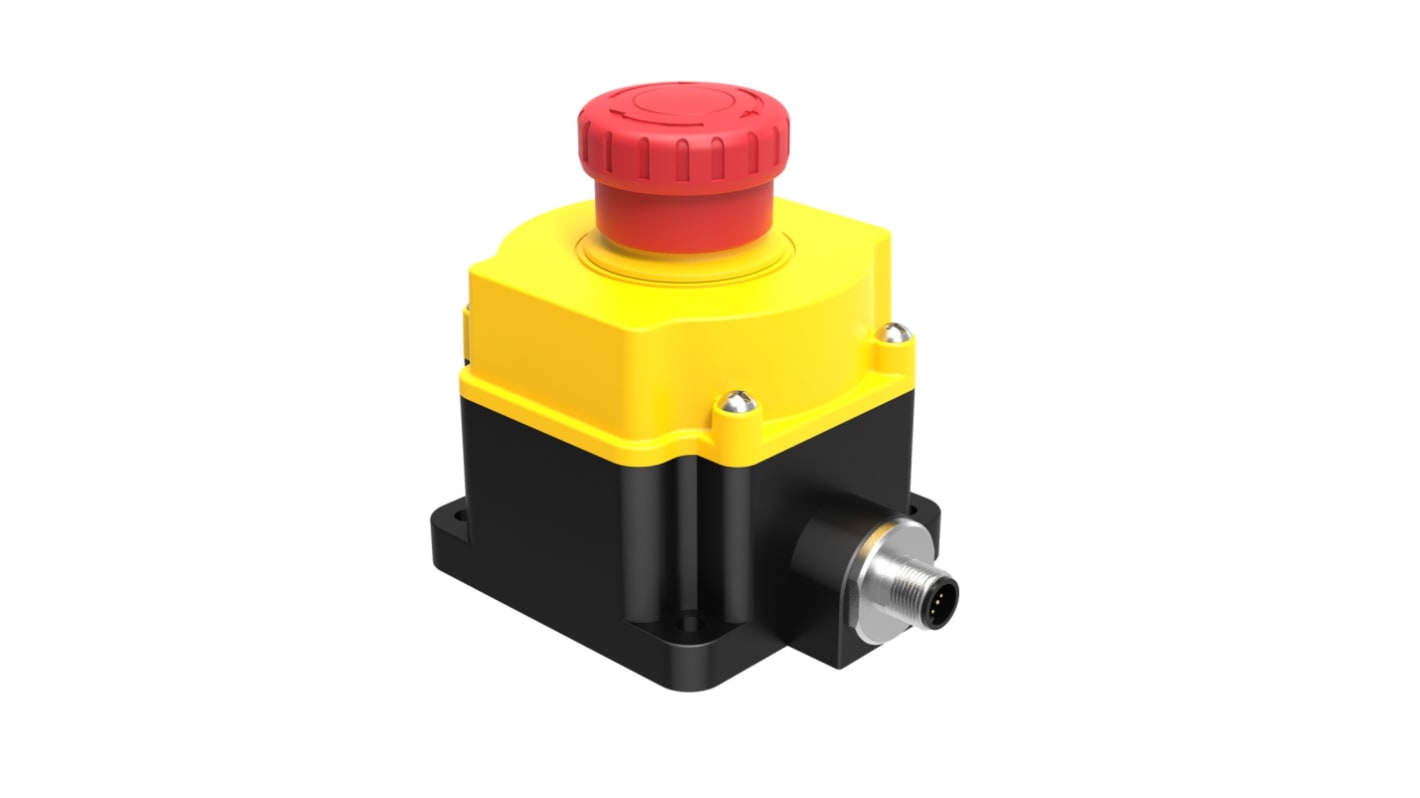

Banner SSA-EB Series Twist Release Emergency Stop Push Button, Surface Mount, 30 mm Cutout, 2 NO/2 NC, IP65
- RS 제품 번호:
- 232-5267
- 제조사 부품 번호:
- SSA-EB1P-22ED1Q8
- 제조업체:
- Banner
Subtotal (1 unit)*
₩310,800.00
제조사가 재고 비축중
- 2026년 11월 02일 부터 배송 준비 완료
더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.
수량 | 한팩당 |
|---|---|
| 1 + | ₩310,800.00 |
* 참고 가격: 실제 구매가격과 다를 수 있습니다
- RS 제품 번호:
- 232-5267
- 제조사 부품 번호:
- SSA-EB1P-22ED1Q8
- 제조업체:
- Banner
사양
참조 문서
제정법과 컴플라이언스
제품 세부 사항
제품 정보를 선택해 유사 제품을 찾기
모두 선택 | 제품 정보 | 값 |
|---|---|---|
| 브랜드 | Banner | |
| Mount Type | Surface Mount | |
| Product Type | Emergency Stop Push Button | |
| Cutout Diameter | 30mm | |
| Contact Configuration | 2 NO/2 NC | |
| Push Button Actuation | Twist Release | |
| Housing Material | Polycarbonate | |
| Series | SSA-EB | |
| Illuminated | No | |
| IP Rating | IP65 | |
| Colour | Red | |
| Head Style | Square | |
| Number of Auxiliary Contacts | 2 | |
| Depth | 109.5mm | |
| Length | 102.1mm | |
| Hazardous Area Certification | No | |
| Standards/Approvals | ANSI B11.19, CE, ISO 13850, IEC/EN 60204-1, EN 60497-1 / -5-1, cULus, ANSI NFPA79 | |
| Width | 80.3mm | |
| Push Button Material | Polyamide | |
| Safety Contacts | 2 | |
| 모두 선택 | ||
|---|---|---|
브랜드 Banner | ||
Mount Type Surface Mount | ||
Product Type Emergency Stop Push Button | ||
Cutout Diameter 30mm | ||
Contact Configuration 2 NO/2 NC | ||
Push Button Actuation Twist Release | ||
Housing Material Polycarbonate | ||
Series SSA-EB | ||
Illuminated No | ||
IP Rating IP65 | ||
Colour Red | ||
Head Style Square | ||
Number of Auxiliary Contacts 2 | ||
Depth 109.5mm | ||
Length 102.1mm | ||
Hazardous Area Certification No | ||
Standards/Approvals ANSI B11.19, CE, ISO 13850, IEC/EN 60204-1, EN 60497-1 / -5-1, cULus, ANSI NFPA79 | ||
Width 80.3mm | ||
Push Button Material Polyamide | ||
Safety Contacts 2 | ||
- COO (Country of Origin):
- JP
The Banner emergency stop push button has rugged design, easy installation with no assembly or individual wiring required. "Safe Break Action” ensures N.C. contacts will open if the contact block is separated from the actuator. This model designed to interface with Safety BUS nodes/gateways.
Contact rating 2 A @ 24 V dc
Contact quantity 2 NC, 2 NO
