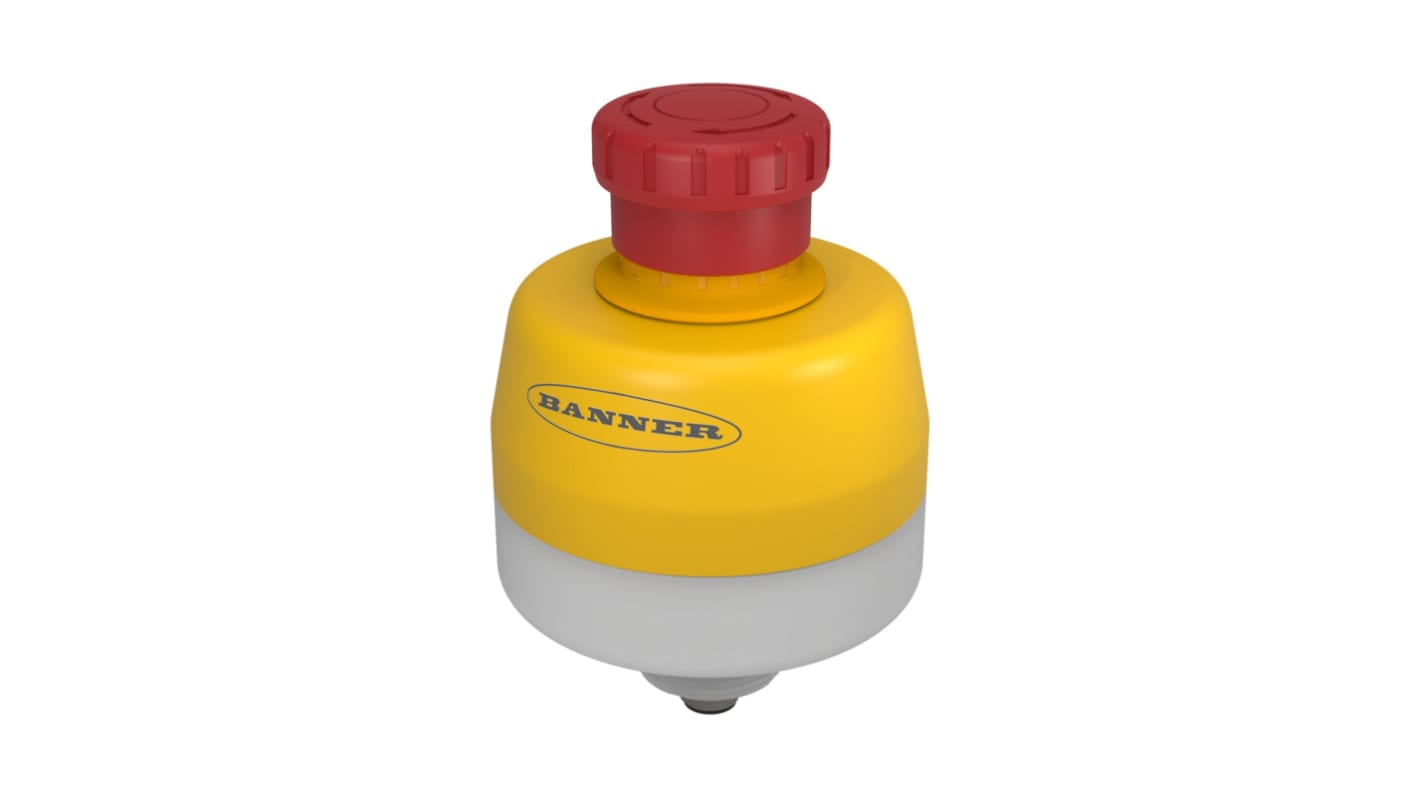

Banner SSA-EB Series Twist Release Emergency Stop Push Button, Panel Mount, 30 mm Cutout, NC, IP65, IP69, IP67
- RS 제품 번호:
- 232-5269
- 제조사 부품 번호:
- SSA-EB1PL-12ECQ8
- 제조업체:
- Banner
Subtotal (1 unit)*
₩396,940.00
일시적 품절
- 2026년 10월 30일 부터 배송
더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.
수량 | 한팩당 |
|---|---|
| 1 + | ₩396,940.00 |
* 참고 가격: 실제 구매가격과 다를 수 있습니다
- RS 제품 번호:
- 232-5269
- 제조사 부품 번호:
- SSA-EB1PL-12ECQ8
- 제조업체:
- Banner
사양
참조 문서
제정법과 컴플라이언스
제품 세부 사항
제품 정보를 선택해 유사 제품을 찾기
모두 선택 | 제품 정보 | 값 |
|---|---|---|
| 브랜드 | Banner | |
| Mount Type | Panel Mount | |
| Product Type | Emergency Stop Push Button | |
| Cutout Diameter | 30mm | |
| Contact Configuration | NC | |
| Push Button Actuation | Twist Release | |
| Housing Material | Polyamide, Polycarbonate | |
| Illuminated | No | |
| Series | SSA-EB | |
| IP Rating | IP65, IP69, IP67 | |
| Colour | Red | |
| Terminal Type | M12 Connector | |
| Contact DC Voltage | 75V dc | |
| Head Style | Round | |
| Number of Auxiliary Contacts | 1 | |
| Contact Current | 2A | |
| Switch Configuration | Latch | |
| Hazardous Area Certification | No | |
| Standards/Approvals | IEC/EN 60204-1, ANSI NFPA79, ISO 13850, EN 60497-1/-5-1, ANSI B11.19 | |
| Head Diameter | 60mm | |
| Safety Contacts | 2 | |
| 모두 선택 | ||
|---|---|---|
브랜드 Banner | ||
Mount Type Panel Mount | ||
Product Type Emergency Stop Push Button | ||
Cutout Diameter 30mm | ||
Contact Configuration NC | ||
Push Button Actuation Twist Release | ||
Housing Material Polyamide, Polycarbonate | ||
Illuminated No | ||
Series SSA-EB | ||
IP Rating IP65, IP69, IP67 | ||
Colour Red | ||
Terminal Type M12 Connector | ||
Contact DC Voltage 75V dc | ||
Head Style Round | ||
Number of Auxiliary Contacts 1 | ||
Contact Current 2A | ||
Switch Configuration Latch | ||
Hazardous Area Certification No | ||
Standards/Approvals IEC/EN 60204-1, ANSI NFPA79, ISO 13850, EN 60497-1/-5-1, ANSI B11.19 | ||
Head Diameter 60mm | ||
Safety Contacts 2 | ||
- COO (Country of Origin):
- US
The Banner emergency stop push button has rugged design, easy installation with no assembly or individual wiring required. “Safe Break Action” ensures normally closed (NC) contacts will open if the contact block is separated from the actuator. FDA-grade silicone cover withstands high pressure, high temperature washdown, and increases the product rating to IP69, the cover is ECOLAB® certified to withstand aggressive cleaning procedures with chemicals used in the food processing industry.
Contact rating 2 A @ 30 V dc
Contact quantity 2 NC, 1 NO
Illumination logic OFF armed, RED solid, PUSH
This series has a 30 mm mounting base similar to Banner’s OTB, VTB, and STB Optical Touch Buttons for ease of mounting without requiring an additional enclosure. The EZ-LIGHT® illumination logic allows for easy identification of a pushed/actuated button.
