Infineon TLE9461ESXUMA1, Power Switch IC 5 Mbps, 24-Pin TSDSO

RS 제품 번호:: 223-8610
제조사 부품 번호:: TLE9461ESXUMA1
제조업체:: Infineon

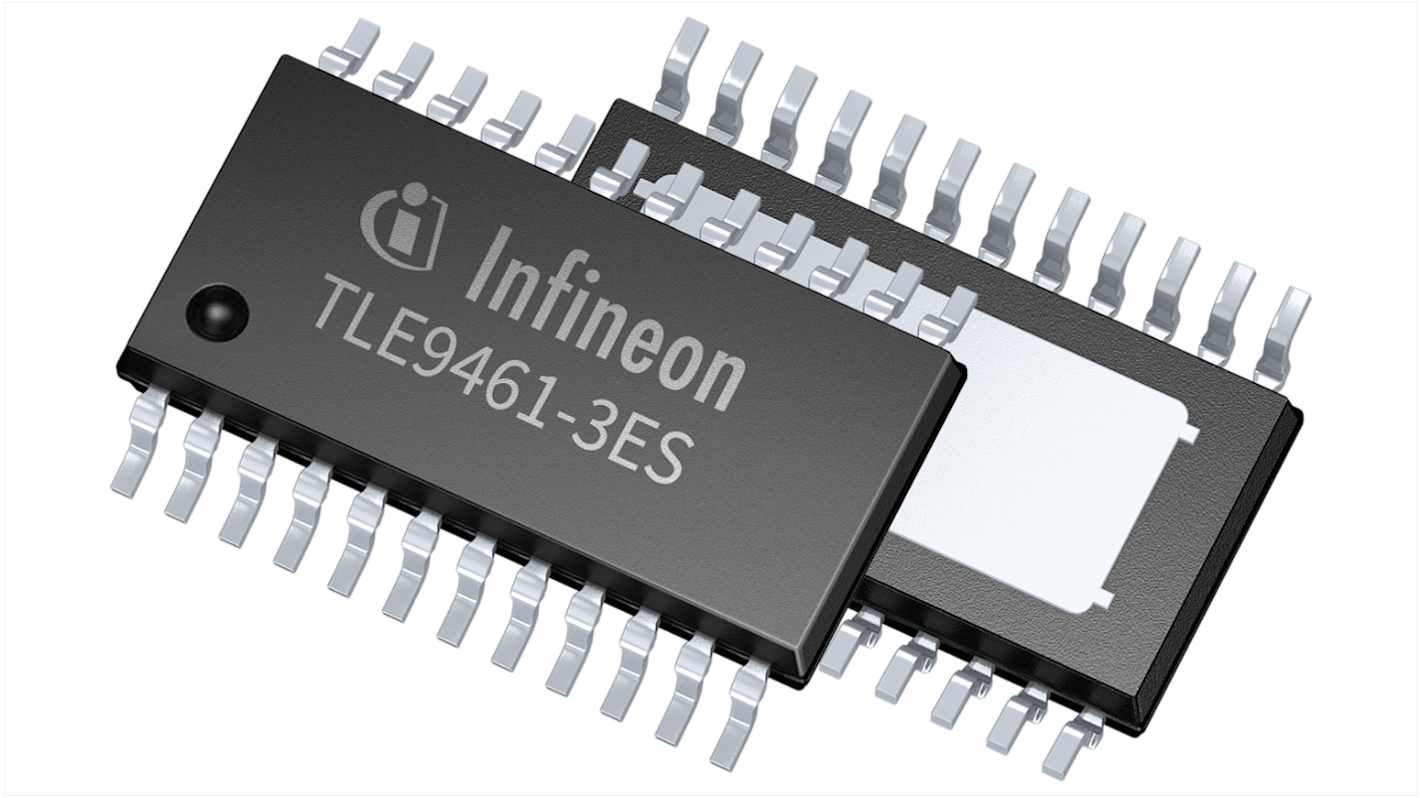

Infineon TLE9461ESXUMA1, Power Switch IC 5 Mbps, 24-Pin TSDSO

본 이미지는 참조용이오니 재확인이 필요하시면 문의해주세요.

대량 구매 할인 기용 가능

View bulk pricing options

Subtotal (5 units, in packs of 5)*

₩23,040.00

2,940 개 단위 배송 준비 완료

더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.

수량	한팩당	한팩당*
5 - 5	₩4,608.00	₩23,040.00
10 - 95	₩4,492.00	₩22,460.00
100 - 245	₩4,380.00	₩21,900.00
250 - 495	₩4,268.00	₩21,340.00
500 +	₩4,164.00	₩20,820.00

* 참고 가격: 실제 구매가격과 다를 수 있습니다

RS 제품 번호:: 223-8610
제조사 부품 번호:: TLE9461ESXUMA1
제조업체:: Infineon

참조 문서

제정법과 컴플라이언스

제품 세부 사항

제품 정보를 선택해 유사 제품을 찾기

모두 선택	제품 정보	값
	브랜드	Infineon
	Maximum Data Rate	5Mbps
	Product Type	Power Switch IC
	Number of Transceivers	1
	Sub Type	CAN Transceiver
	Power Down Mode	Standby, Sleep
	Supply Current	3mA
	Interface Type	ISO 11898
	Package Type	TSDSO
	Pin Count	24
	Minimum Supply Voltage	4.75V
	Maximum Supply Voltage	28V
	ESD Protection	Yes
	Minimum Operating Temperature	-40°C
	Maximum Operating Temperature	150°C
	Series	TLE9461ES
	Standards/Approvals	No
	Automotive Standard	AEC-Q101, AEC-Q100

	모두 선택
	브랜드 Infineon
	Maximum Data Rate 5Mbps
	Product Type Power Switch IC
	Number of Transceivers 1
	Sub Type CAN Transceiver
	Power Down Mode Standby, Sleep
	Supply Current 3mA
	Interface Type ISO 11898
	Package Type TSDSO
	Pin Count 24
	Minimum Supply Voltage 4.75V
	Maximum Supply Voltage 28V
	ESD Protection Yes
	Minimum Operating Temperature -40°C
	Maximum Operating Temperature 150°C
	Series TLE9461ES
	Standards/Approvals No
	Automotive Standard AEC-Q101, AEC-Q100

Datasheet - TLE9461ESXUMA1

Infineon TLE9461ES Series Power Switch IC, 5Mbps Maximum Data Rate, 28V Maximum Supply Voltage - TLE9461ESXUMA1

This power switch IC provides a CAN transceiver Interface for automotive environments, enabling serial data exchange over ISO11898 networks while managing supply and power-down states. It operates across a wide supply range and withstands extreme ambient temperatures, making it suitable for vehicle electronics where controlled node communication and low quiescent consumption are required.

Features and Benefits:

• Supports CAN communication at up to 5 Mbps for high-speed data transfer
• Operates from 4.75 V to 28 V to accommodate varied vehicle supplies
• Draws just 3 mA supply current to reduce standby power loss
• Tolerates ambient temperatures to 150 °C for harsh environments
• Includes ESD protection to enhance Interface robustness
• Available in a 24-pin TSDSO package for Compact mounting

Applications

• Suitable for gateway modules requiring high-rate CAN links
• Ideal for body control units with low quiescent demand
• Used for sensor hubs operating across variable vehicle voltages
• Can be used in power-management nodes with sleep modes
• Suitable for automotive modules needing robust ESD protection

What supply voltage extremes can it accept?

It functions correctly across a nominal range from 4.75 V up to 28 V.

How does it handle periods of inactivity to save power?

It provides both standby and sleep power-down modes to reduce consumption during inactive intervals.

What environmental conditions can it withstand for under-bonnet use?

It is specified to operate at temperatures down to −40 °C and up to 150 °C.

Which physical package should designers plan for on their board?

It is supplied in a 24-pin TSDSO package suitable for surface mounting.

What Interface standard does it implement for network compatibility?

It implements the ISO11898 Interface for CAN network interoperability.
