Infineon TLE9461ESV33XUMA1, CAN Transceiver 5 Mbps, 24-Pin TSDSO

RS 제품 번호:: 218-6361
제조사 부품 번호:: TLE9461ESV33XUMA1
제조업체:: Infineon

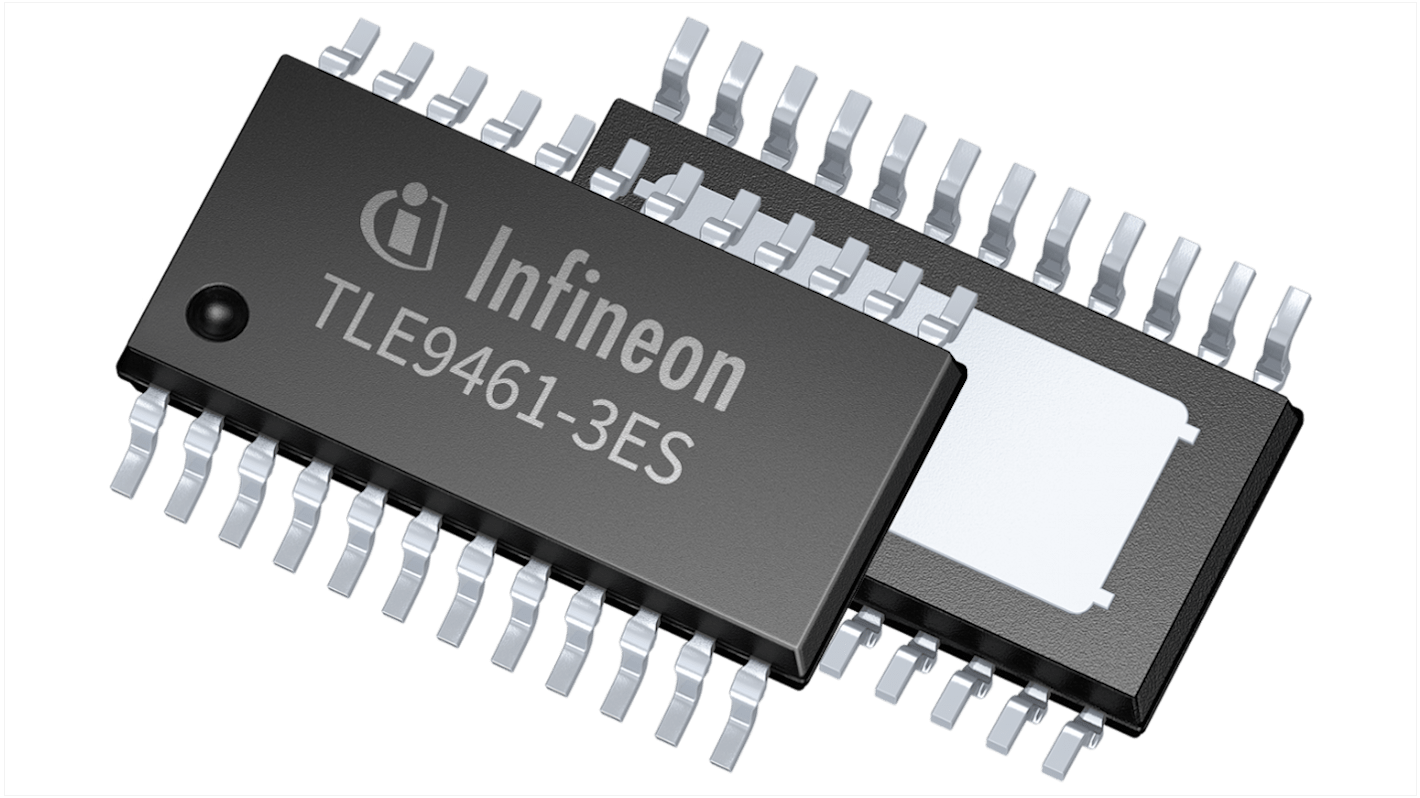

Infineon TLE9461ESV33XUMA1, CAN Transceiver 5 Mbps, 24-Pin TSDSO

본 이미지는 참조용이오니 재확인이 필요하시면 문의해주세요.

대량 구매 할인 기용 가능

View bulk pricing options

Subtotal (5 units, in packs of 5)*

₩18,200.00

6,000 개 단위 배송 준비 완료

더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.

수량	한팩당	한팩당*
5 - 745	₩3,640.00	₩18,200.00
750 - 1495	₩3,564.00	₩17,820.00
1500 +	₩3,488.00	₩17,440.00

* 참고 가격: 실제 구매가격과 다를 수 있습니다

RS 제품 번호:: 218-6361
제조사 부품 번호:: TLE9461ESV33XUMA1
제조업체:: Infineon

참조 문서

제정법과 컴플라이언스

제품 세부 사항

제품 정보를 선택해 유사 제품을 찾기

모두 선택	제품 정보	값
	브랜드	Infineon
	Maximum Data Rate	5Mbps
	Product Type	CAN Transceiver
	Number of Transceivers	1
	Sub Type	CAN Interface
	Power Down Mode	Sleep, Normal, Restart
	Supply Current	6.5mA
	Package Type	TSDSO
	Interface Type	CAN
	Pin Count	24
	Minimum Supply Voltage	4.75V
	Maximum Supply Voltage	28V
	ESD Protection	Yes
	Minimum Operating Temperature	-40°C
	Maximum Operating Temperature	150°C
	Standards/Approvals	No
	Series	TLE9461ES V33
	Automotive Standard	AEC-Q100, AEC-Q101

	모두 선택
	브랜드 Infineon
	Maximum Data Rate 5Mbps
	Product Type CAN Transceiver
	Number of Transceivers 1
	Sub Type CAN Interface
	Power Down Mode Sleep, Normal, Restart
	Supply Current 6.5mA
	Package Type TSDSO
	Interface Type CAN
	Pin Count 24
	Minimum Supply Voltage 4.75V
	Maximum Supply Voltage 28V
	ESD Protection Yes
	Minimum Operating Temperature -40°C
	Maximum Operating Temperature 150°C
	Standards/Approvals No
	Series TLE9461ES V33
	Automotive Standard AEC-Q100, AEC-Q101

Datasheet - TLE9461ESV33XUMA1

Infineon TLE9461ES V33 Series CAN Transceiver, 5Mbps Maximum Data Rate, 4.75V Minimum Supply Voltage - TLE9461ESV33XUMA1

This CAN transceiver provides a single-channel Interface for Controller Area Network communication in automotive and industrial environments. It accepts a wide supply range and supports high-speed CAN signalling while offering temperature resilience and electrostatic protection for demanding operational contexts.

Features and Benefits:

• Supports data rates up to 5 Mbps for fast network communication
• Operates from 4.75 V to 28 V for flexible power systems
• Draws 6.5 mA supply current to minimise power consumption
• Withstands temperatures from −40 °C to 150 °C for harsh environments
• Includes ESD protection to reduce susceptibility to electrostatic events
• Available in a 24-pin TSDSO package for Compact board integration

Applications

• Suitable for vehicle network gateway modules requiring high throughput
• Ideal for powertrain modules operating across wide temperature ranges
• Used with diagnostic tools communicating over high-speed CAN
• Can be used for body electronics interfacing in automotive systems
• Appropriate for industrial controllers needing single-channel CAN connectivity

What operating modes are available to manage power states?

It provides sleep, normal and restart modes to control power consumption and network behaviour.

What standards cover its suitability for automotive use?

It meets automotive-grade qualification standards for component stress and reliability.

How many transceivers are provided per device and how is the Interface presented?

There is one transceiver and it implements a CAN electrical Interface for bus connection.

Which package type should be expected for layout planning?

The device is supplied in a TSDSO package requiring an appropriate footprint design.
