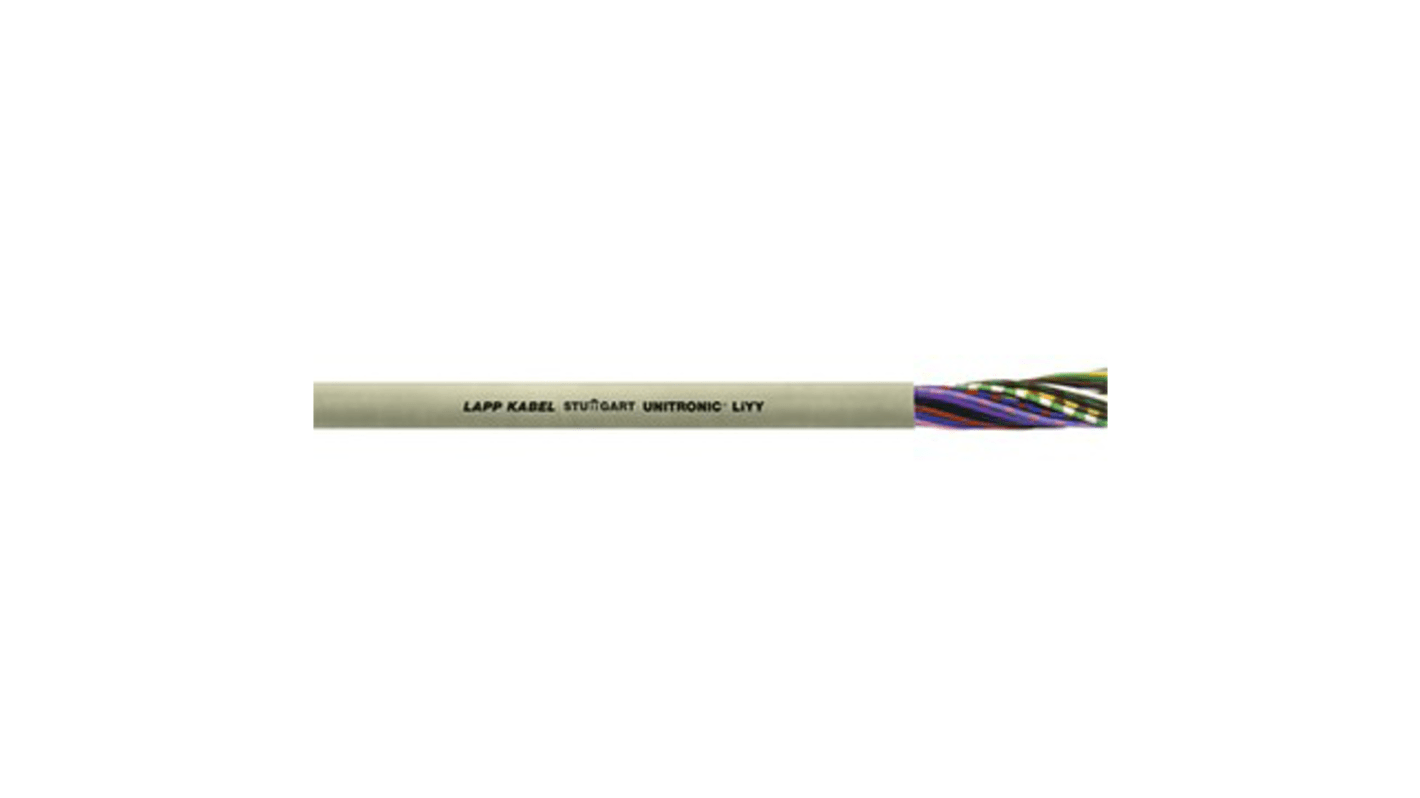

Lapp UNITRONIC LiYY Series Data Cable, 25 Pairs, 0.14 mm², 50 m, Grey Sheath Polyvinyl Chloride

본 제품군 열람하기

Subtotal (1 reel of 50 metres)*

₩186,834.40

Add to Basket
수량 선택 또는 입력
재고있음
  • 4 개 단위 배송 준비 완료
  • 추가로 2026년 3월 27일 부터 6 개 단위 배송
더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.
릴당
릴당
미터당*
1 +₩186,834.40₩3,737.44

* 참고 가격: 실제 구매가격과 다를 수 있습니다

RS 제품 번호:
491-8753
제조사 부품 번호:
0028225
제조업체:
Lapp
제품 정보를 선택해 유사 제품을 찾기
모두 선택

브랜드

Lapp

Number of Pairs

25

Product Type

Data Cable

Cross Sectional Area

0.14 mm²

Cable Length

50m

Jacket Colour

Grey

Outside Diameter

7.8 mm

Conductor Type

Extra Fine

Jacket Material

Polyvinyl Chloride

Minimum Operating Temperature

-40°C

Maximum Operating Temperature

80°C

Standards/Approvals

RoHS

Fire Behaviour

Flame Retardant

Conductor Material

Bare Copper

Series

UNITRONIC LiYY

Core Strands

18

Voltage

350 V

COO (Country of Origin):
DE

Unitronic® LiYY data cable


From Lapp, Unitronic series LiYY data cables have been developed from tried and tested VDE 0812 cables. LiYY designated cables are designed for multi-functional use, and are commonly used in signal and data transmission applications.

The multi-core cable is comprised of fine-wire bare copper strands, with a PVC core insulation and sheath.

This Unitronic low-frequency data cable has a small outer diameter for space-saving installations, and is also flame retardant. It can be used in dry or damp indoor environments, and is suitable for occasional flexing.

Features and Benefits

• Space-saving installation

• DIN colour code

• Transparent outer sheath made from special PVC-based mixture

• Flame-retardant in accordance with VDE 0472, part 804, test type B (IEC 332.1)

• Operating temperature with occasional flexing: -5°C to +70°C

• Operating temperature in fixed installation: -40°C to +80°C

Applications

The Lapp Unitronic LiYY cable is suitable for many control and signal applications, and is commonly found in industrial computers. It can also be used in;

• Process and control equipment

• Office machines

• Measuring equipment

Accessories

Unitronic LiYY cable should be use din conjunction with accessories that match its capabilities, such as Lapp cable glands, such as the easy-to-install Skintop range.

• 361-9994 is an M12 IP68 Skintop ST-M Cable Gland

• 365-8422 is an M16 IP68 Skintop ST-M Cable Gland

• 365-8438 is an M20 IP68 Skintop ST-M Cable Gland

• 365-8444 is an M25 IP68 Skintop ST-M Cable Gland

• 362-0001 is an M32 IP68 Skintop ST-M Cable Gland

• 362-0017 is an M40 IP68 Skintop ST-M Cable Gland

• 362-0023 is an M50 IP68 Skintop ST-M Cable Gland

Note

YY cable is not suitable for fixed wiring applications requiring compliance with the requirements set out in BS7671.

Standards

VDE 0482, VDE 0472, IEC 332.1 and DIN 4700 colour code
