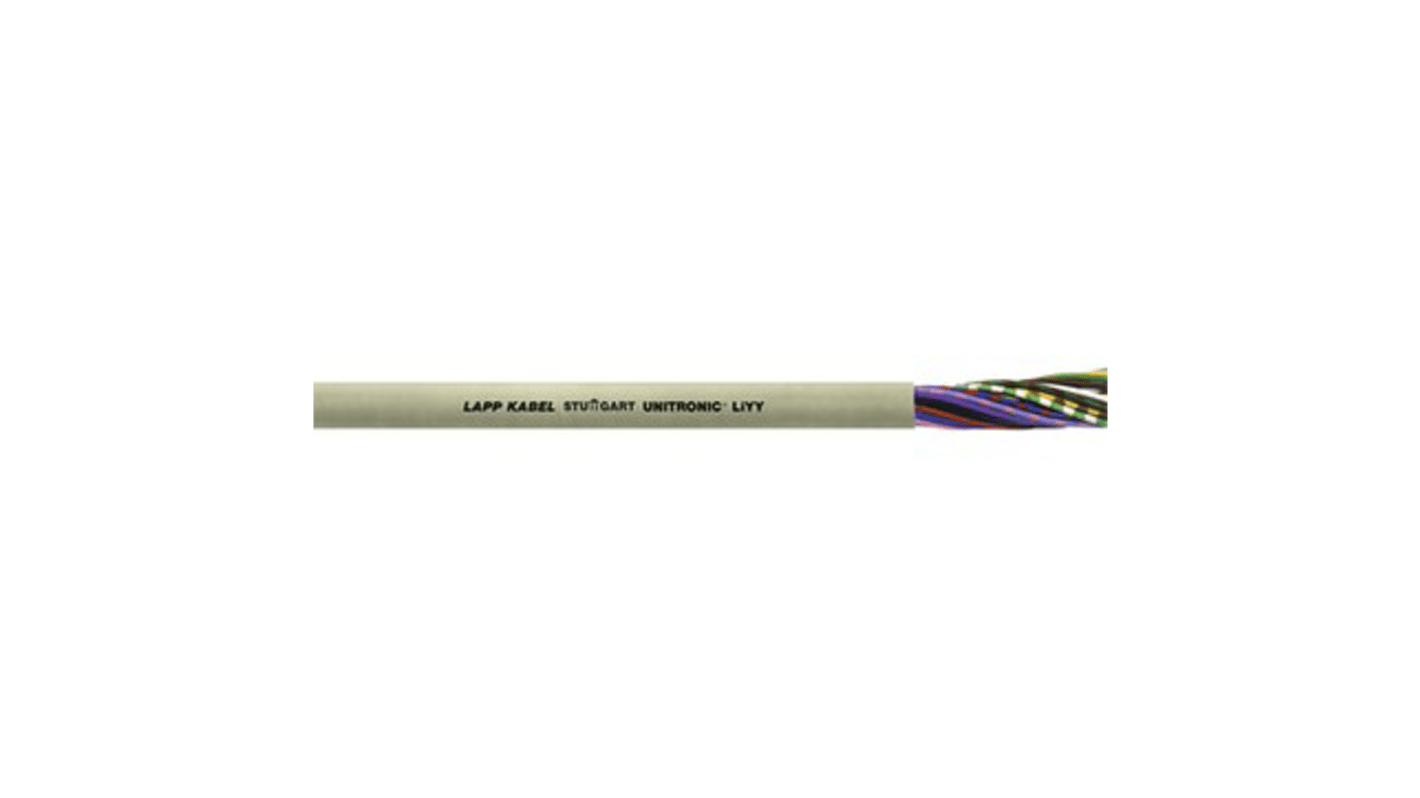

Lapp UNITRONIC LiYY Series Data Cable, 12 Cores, 0.25 mm², Unscreened, 24 AWG, 100m, LiYY Cable
- RS 제품 번호:
- 491-9009
- Distrelec 제품 번호:
- 304-33-430
- 제조사 부품 번호:
- 0028312
- 제조업체:
- Lapp
대량 구매 할인 기용 가능
Subtotal (1 reel of 100 metres)*
₩262,918.00
재고있음
- 4 개 단위 배송 준비 완료
- 추가로 2026년 2월 06일 부터 5 개 단위 배송
더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.
릴당 | 릴당 | 미터당* |
|---|---|---|
| 1 - 10 | ₩262,918.00 | ₩2,628.24 |
| 11 + | ₩250,228.00 | ₩2,502.28 |
* 참고 가격: 실제 구매가격과 다를 수 있습니다
- RS 제품 번호:
- 491-9009
- Distrelec 제품 번호:
- 304-33-430
- 제조사 부품 번호:
- 0028312
- 제조업체:
- Lapp
사양
참조 문서
제정법과 컴플라이언스
제품 세부 사항
제품 정보를 선택해 유사 제품을 찾기
모두 선택 | 제품 정보 | 값 |
|---|---|---|
| 브랜드 | Lapp | |
| Cross Sectional Area | 0.25 mm² | |
| Number of Cores | 12 | |
| American Wire Gauge | 24 AWG | |
| Screened/Unscreened | Unscreened | |
| Length | 100m | |
| CPR Certification | Eca | |
| Sheath Colour | Grey | |
| Cable Type | LiYY | |
| Outer Diameter | 7mm | |
| Outer Sheath Material | PVC | |
| Cable Shape | Multicore | |
| Minimum Operating Temperature | -40°C | |
| Fire Behaviour | Flame Retardant | |
| Core Strands | 14/0.14 mm | |
| Series | UNITRONIC LiYY | |
| Maximum Operating Temperature | +80°C | |
| Voltage Rating | 500 V | |
| Shielded/Unshielded | Unshielded | |
| 모두 선택 | ||
|---|---|---|
브랜드 Lapp | ||
Cross Sectional Area 0.25 mm² | ||
Number of Cores 12 | ||
American Wire Gauge 24 AWG | ||
Screened/Unscreened Unscreened | ||
Length 100m | ||
CPR Certification Eca | ||
Sheath Colour Grey | ||
Cable Type LiYY | ||
Outer Diameter 7mm | ||
Outer Sheath Material PVC | ||
Cable Shape Multicore | ||
Minimum Operating Temperature -40°C | ||
Fire Behaviour Flame Retardant | ||
Core Strands 14/0.14 mm | ||
Series UNITRONIC LiYY | ||
Maximum Operating Temperature +80°C | ||
Voltage Rating 500 V | ||
Shielded/Unshielded Unshielded | ||
- COO (Country of Origin):
- DE
LAPP Control Cable, 500V Voltage Rating, 4.5A Current Rating - UNITRONIC Series - 0028312
Looking for a reliable way to link up sensors and actuators to your equipment? Use this control cable from LAPP. As it's a LiYY-type cable, its cores and outer sheath are insulated by impact-resistant PVC. This protects users from electric shocks during handling to boost workplace safety. A 12-core configuration enables this cable to conveniently transmit multiple signals at once, helping to reduce clutter and saving space in your setup.
Features & Benefits
• Compact outer diameter of 7mm to suit small enclosures
• Length of 100m be used in a single run or cut to size
• Copper conductors deliver high conductivity and a reliable connection
• Length of 100m be used in a single run or cut to size
• Copper conductors deliver high conductivity and a reliable connection
Applications
• Robotics and automation systems
• Computer networks
• Computer networks
What's the current rating of this cable?
This cable has a current rating of 4.5A, so it’s energy-efficient and emits low heat.
Note
YY cable is not suitable for fixed wiring applications requiring compliance with the requirements set out in BS7671.
