Lapp UNITRONIC LiYY Series Data Cable 4 Pairs 4 Cores 0.25 mm² 100 m Grey Sheath Polyvinyl Chloride
- RS 제품 번호:
- 491-8983
- Distrelec 제품 번호:
- 304-01-027
- 제조사 부품 번호:
- 0028304
- 제조업체:
- Lapp
대량 구매 할인 기용 가능
View bulk pricing optionsSubtotal (1 reel of 100 metres)*
₩109,880.00
재고있음
- 3 개 단위 배송 준비 완료
- 추가로 2026년 10월 20일 부터 56 개 단위 배송
- 추가로 2026년 11월 24일 부터 23 개 단위 배송
더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.
릴당 | 릴당 | 미터당* |
|---|---|---|
| 1 - 25 | ₩109,880.00 | ₩1,098.00 |
| 26 + | ₩104,480.00 | ₩1,044.00 |
* 참고 가격: 실제 구매가격과 다를 수 있습니다
- RS 제품 번호:
- 491-8983
- Distrelec 제품 번호:
- 304-01-027
- 제조사 부품 번호:
- 0028304
- 제조업체:
- Lapp
사양
참조 문서
제정법과 컴플라이언스
제품 세부 사항
제품 정보를 선택해 유사 제품을 찾기
모두 선택 | 제품 정보 | 값 |
|---|---|---|
| 브랜드 | Lapp | |
| Product Type | Data Cable | |
| Number of Pairs | 4 | |
| Cross Sectional Area | 0.25mm² | |
| Number of Cores | 4 | |
| Cable Length | 100m | |
| Jacket Colour | Grey | |
| Outside Diameter | 4.3mm | |
| Conductor Type | Extra Fine | |
| Jacket Material | Polyvinyl Chloride | |
| Minimum Operating Temperature | -40°C | |
| Maximum Operating Temperature | 80°C | |
| Standards/Approvals | CE | |
| Conductor Material | Bare Copper | |
| Series | UNITRONIC LiYY | |
| Voltage | 500V | |
| Fire Behaviour | Flame Retardant | |
| Core Strands | 14 x 140 μm | |
| Size of Strands | 140μm | |
| Number of Strands | 14 | |
| 모두 선택 | ||
|---|---|---|
브랜드 Lapp | ||
Product Type Data Cable | ||
Number of Pairs 4 | ||
Cross Sectional Area 0.25mm² | ||
Number of Cores 4 | ||
Cable Length 100m | ||
Jacket Colour Grey | ||
Outside Diameter 4.3mm | ||
Conductor Type Extra Fine | ||
Jacket Material Polyvinyl Chloride | ||
Minimum Operating Temperature -40°C | ||
Maximum Operating Temperature 80°C | ||
Standards/Approvals CE | ||
Conductor Material Bare Copper | ||
Series UNITRONIC LiYY | ||
Voltage 500V | ||
Fire Behaviour Flame Retardant | ||
Core Strands 14 x 140 μm | ||
Size of Strands 140μm | ||
Number of Strands 14 | ||
- COO (Country of Origin):
- DE

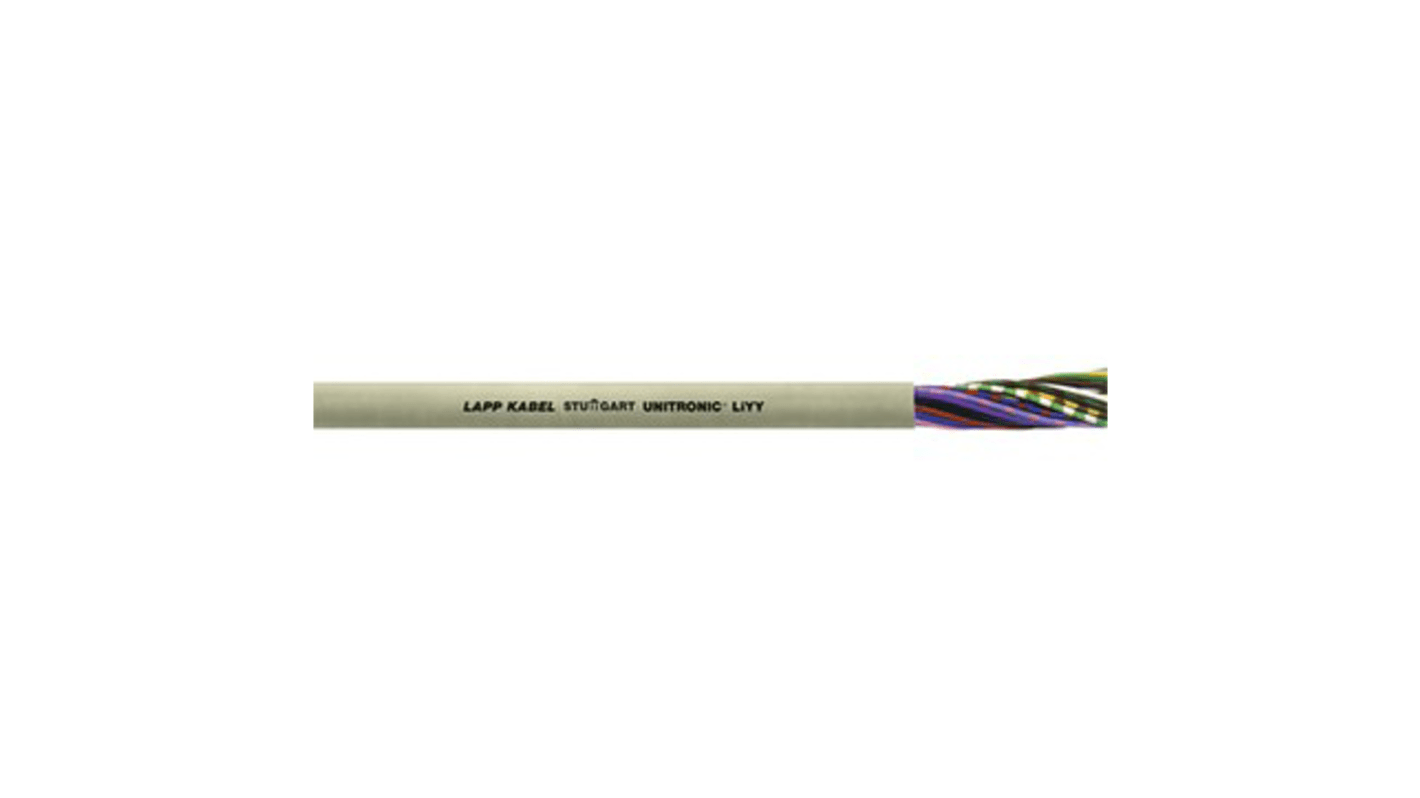

LAPP Grey Unscreened Control Cable, 24AWG, 100m Length - UNITRONIC Series - 0028304
Send instructions across your industrial equipment with this control cable from LAPP. Its highly conductive copper cores reliably transfer data to maintain system efficiency. As it's designed with stranded conductor cores, the cable is flexible enough to fit into complex setups. A slim diameter of 4.3mm means it takes up minimal space, optimising your wiring density. Flame-retardant PVC insulation means the internal wires are protected against fire damage.
Features & Benefits
• 4.5A current rating suits many commercial and light-industrial applications
• Non-wicking filler material protects your connection against corrosion in damp settings
• 0.25mm² conductor cross-section for easy compatibility
• -40°C to +80°C operating temperature range for use in demanding environments
Applications
• Bottling plants
• Automated assembly lines
• Manufacturing industry
• Outdoor electrical installations
Why should I use an unscreened cable?
Screening protects against EMI. If interference isn't a problem in your equipment, you can use unscreened cables like this one, which tend to be more flexible.
