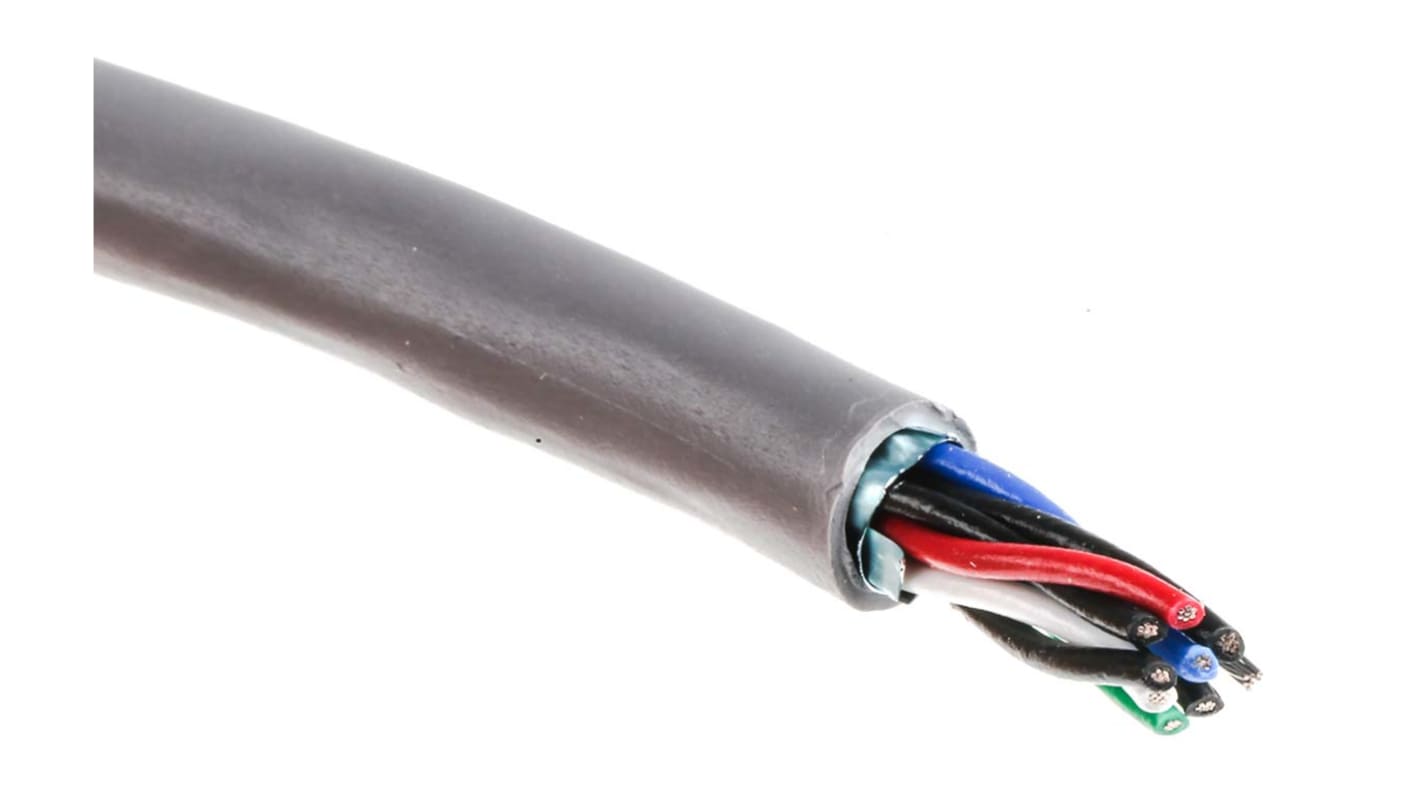

Alpha Wire Alpha Essentials Communication & Control Series Data Cable, 4 Pairs, 8 Cores, 0.23 mm², Screened, 24 AWG,
- RS 제품 번호:
- 111-8972
- Distrelec 제품 번호:
- 301-34-052
- 제조사 부품 번호:
- 5474C SL005
- 제조업체:
- Alpha Wire
대량 구매 할인 기용 가능
Subtotal (1 reel of 30 metres)*
₩267,411.20
재고있음
- 추가로 2025년 12월 22일 부터 17 개 단위 배송
- 추가로 2026년 2월 10일 부터 12 개 단위 배송
더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.
릴당 | 릴당 | 미터당* |
|---|---|---|
| 1 - 14 | ₩267,411.20 | ₩8,913.08 |
| 15 + | ₩254,025.60 | ₩8,467.52 |
* 참고 가격: 실제 구매가격과 다를 수 있습니다
- RS 제품 번호:
- 111-8972
- Distrelec 제품 번호:
- 301-34-052
- 제조사 부품 번호:
- 5474C SL005
- 제조업체:
- Alpha Wire
사양
참조 문서
제정법과 컴플라이언스
제품 세부 사항
제품 정보를 선택해 유사 제품을 찾기
모두 선택 | 제품 정보 | 값 |
|---|---|---|
| 브랜드 | Alpha Wire | |
| Number of Pairs | 4 | |
| Cross Sectional Area | 0.23 mm² | |
| Number of Cores | 8 | |
| American Wire Gauge | 24 AWG | |
| Screened/Unscreened | Screened | |
| Length | 30m | |
| Shield Type | F/UTP | |
| Sheath Colour | Grey | |
| Cable Type | Shielded Twistd Pair | |
| Outer Diameter | 6.17mm | |
| Outer Sheath Material | PVC | |
| Cable Shape | Twisted Pair | |
| Characteristic Impedance | 76 Ω | |
| Voltage Rating | 300 V | |
| Maximum Operating Temperature | +80°C | |
| Minimum Operating Temperature | -20°C | |
| Core Strands | 7/0.2 mm | |
| Shielded/Unshielded | Shielded | |
| Series | Alpha Essentials Communication & Control | |
| Fire Behaviour | Flame Retardant | |
| Standards Met | CE | |
| 모두 선택 | ||
|---|---|---|
브랜드 Alpha Wire | ||
Number of Pairs 4 | ||
Cross Sectional Area 0.23 mm² | ||
Number of Cores 8 | ||
American Wire Gauge 24 AWG | ||
Screened/Unscreened Screened | ||
Length 30m | ||
Shield Type F/UTP | ||
Sheath Colour Grey | ||
Cable Type Shielded Twistd Pair | ||
Outer Diameter 6.17mm | ||
Outer Sheath Material PVC | ||
Cable Shape Twisted Pair | ||
Characteristic Impedance 76 Ω | ||
Voltage Rating 300 V | ||
Maximum Operating Temperature +80°C | ||
Minimum Operating Temperature -20°C | ||
Core Strands 7/0.2 mm | ||
Shielded/Unshielded Shielded | ||
Series Alpha Essentials Communication & Control | ||
Fire Behaviour Flame Retardant | ||
Standards Met CE | ||
Belden Alpha Essentials Communication & Control Series Control Cable, 0.23mm² Cross Sectional Area - 5474C SL001
This control cable is designed for reliable performance in various automation and control applications. With a flat construction featuring four twisted pairs and a cross-sectional area of 0.23mm², it provides robust connectivity. The cable's outer diameter measures 6.17mm, and it is crafted from high-quality PVC sheath material, ensuring durability and protection. Suitable for both indoor and outdoor environments, it operates effectively in temperatures ranging from -20°C to +80°C.
Features & Benefits
• Screened design reduces electromagnetic interference for clearer signals
• Flame retardant properties enhance safety in critical applications
• Twisted pair construction minimises crosstalk between conductors
• 24 AWG size offers excellent flexibility and ease of installation
• PVC sheath protects against abrasions and environmental stress
• High voltage rating of 300V ensures compatibility with demanding systems
• Flame retardant properties enhance safety in critical applications
• Twisted pair construction minimises crosstalk between conductors
• 24 AWG size offers excellent flexibility and ease of installation
• PVC sheath protects against abrasions and environmental stress
• High voltage rating of 300V ensures compatibility with demanding systems
Applications
• Used in automation systems for precise control functionality
• Ideal for installation in industrial machinery requiring reliable signal transmission
• Employed in electronic devices that demand stable power and control connections
• Utilised in electrical panels for effective communication between components
• Ideal for installation in industrial machinery requiring reliable signal transmission
• Employed in electronic devices that demand stable power and control connections
• Utilised in electrical panels for effective communication between components
How does the screened design enhance the performance of this cable?
The screened design effectively shields the inner conductors from external electromagnetic interference, allowing for clearer signal transmission and reducing the risk of data loss or corruption.
What considerations should be made for installation in outdoor environments?
When installing the cable outdoors, ensure it is protected from direct sunlight and moisture, as it is designed primarily for indoor use, although it can withstand variable temperature ranges.
What impact does the twisted pair construction have on signal integrity?
Twisted pair construction significantly reduces electromagnetic interference and crosstalk between the pairs, thus maintaining signal integrity even over extended distances.
Can this cable be used in high-temperature environments?
Yes, it can operate safely within a temperature range of -20°C to +80°C, making it suitable for various high-temperature applications in industrial settings.
Approvals
UL2464 Type CM
