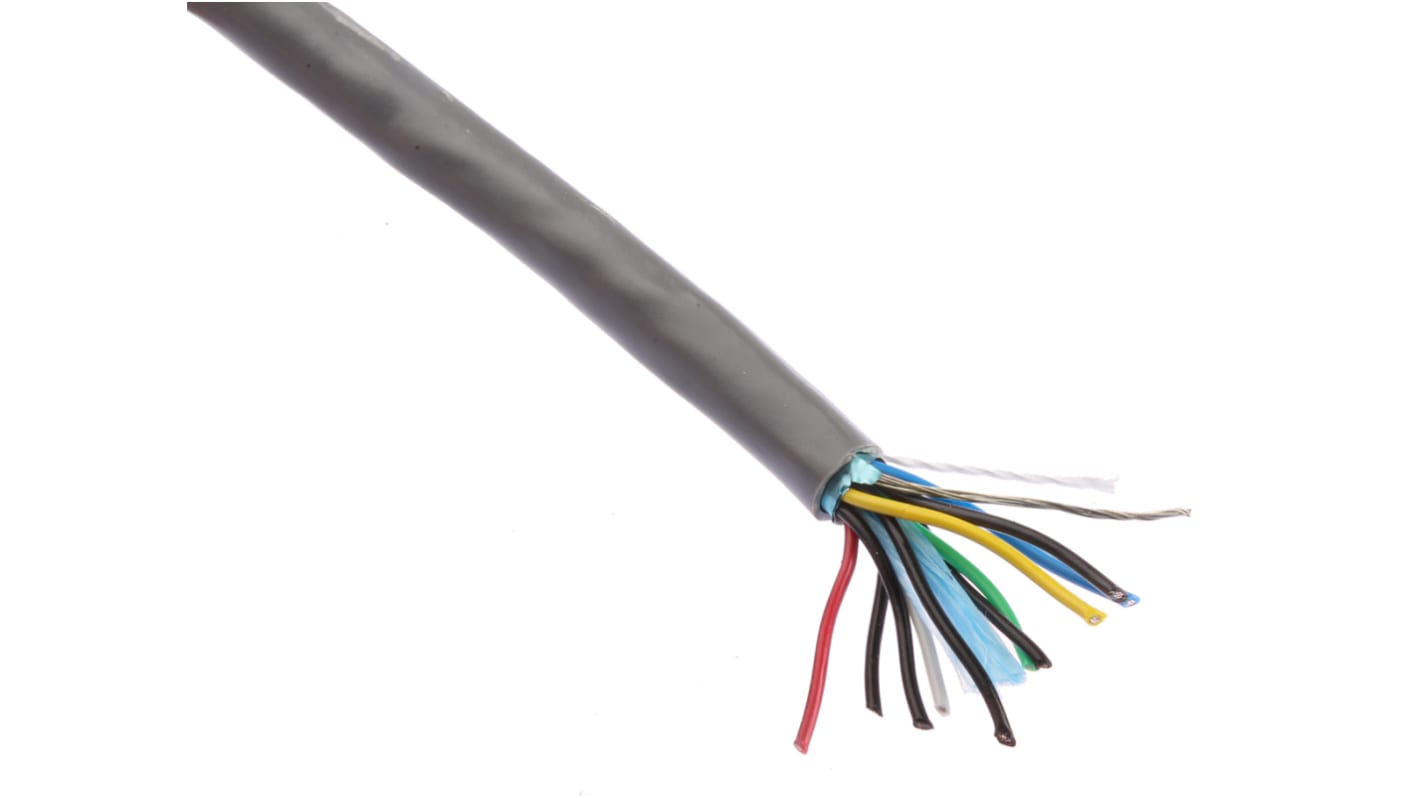

Alpha Wire Alpha Essentials Communication & Control Series Data Cable, 5 Pairs, 10 Cores, 0.23 mm², Screened, 24 AWG,

RS 제품 번호:: 111-8988
Distrelec 제품 번호:: 301-34-053
제조사 부품 번호:: 5475C SL005
제조업체:: Alpha Wire

Alpha Wire Alpha Essentials Communication & Control Series Data Cable, 5 Pairs, 10 Cores, 0.23 mm², Screened, 24 AWG,

대량 구매 할인 기용 가능

Subtotal (1 reel of 30 metres)*

₩245,020.40

재고있음

추가로 2025년 12월 22일 부터 12 개 단위 배송
추가로 2026년 2월 17일 부터 6 개 단위 배송
추가로 2026년 2월 27일 부터 1 개 단위 배송

더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.

릴당	릴당	미터당*
1 - 14	₩245,020.40	₩8,166.72
15 +	₩238,910.40	₩7,963.68

* 참고 가격: 실제 구매가격과 다를 수 있습니다

RS 제품 번호:: 111-8988
Distrelec 제품 번호:: 301-34-053
제조사 부품 번호:: 5475C SL005
제조업체:: Alpha Wire

참조 문서

제정법과 컴플라이언스

제품 세부 사항

제품 정보를 선택해 유사 제품을 찾기

모두 선택	제품 정보	값
	브랜드	Alpha Wire
	Number of Pairs	5
	Cross Sectional Area	0.23 mm²
	Number of Cores	10
	American Wire Gauge	24 AWG
	Screened/Unscreened	Screened
	Length	30m
	Shield Type	F/UTP
	Sheath Colour	Grey
	Outer Diameter	6.86mm
	Outer Sheath Material	PVC
	Cable Shape	Twisted Pair
	Characteristic Impedance	76 Ω
	Voltage Rating	300 V
	Standards Met	CE
	Fire Behaviour	Flame Retardant
	Series	Alpha Essentials Communication & Control
	Core Strands	7/0.2 mm
	Shielded/Unshielded	Shielded

	모두 선택
	브랜드 Alpha Wire
	Number of Pairs 5
	Cross Sectional Area 0.23 mm²
	Number of Cores 10
	American Wire Gauge 24 AWG
	Screened/Unscreened Screened
	Length 30m
	Shield Type F/UTP
	Sheath Colour Grey
	Outer Diameter 6.86mm
	Outer Sheath Material PVC
	Cable Shape Twisted Pair
	Characteristic Impedance 76 Ω
	Voltage Rating 300 V
	Standards Met CE
	Fire Behaviour Flame Retardant
	Series Alpha Essentials Communication & Control
	Core Strands 7/0.2 mm
	Shielded/Unshielded Shielded

Belden Alpha Essentials Communication & Control Series Control Cable, 304m Length - 5475C SL001

This control cable is a screened type designed for reliable communication and control in automation and electronics applications. With an outer diameter of 6.86mm and a length of 304m, this 5 pair control cable is made of high-quality materials ensuring optimal performance. It features a PVC sheath in a grey colour, providing durability and resistance against environmental factors.

Features & Benefits

• Screened design reduces electromagnetic interference for stable performance
• 24 AWG control cable ensures efficient conductivity
• Flame retardant properties for enhanced safety in installations
• F/UTP cable construction offers improved shielding against noise
• Rated for 300V for a wide range of industrial applications
• Suitable for temperature ranges from -20°C to +80°C

Applications

• Ideal for control circuits in industrial automation
• Used for signal transmission in electronic devices
• Suitable for connecting components in electrical machinery
• Employed in various communications systems within buildings

What kind of insulation is used for protecting the conductors?

The cable is insulated with a semi-rigid PVC material, providing robustness and protection against environmental hazards.

How does the cable's screening benefit its performance?

The aluminium/mylar tape shield with a minimum overlap effectively reduces noise interference, ensuring reliable signal transmission in sensitive applications.

What is the significance of the specified twists per foot in this cable?

The cable features 9.6 twists per foot for pairs and 4.4 twists per foot for the entire assembly, helping to maintain signal integrity by minimising crosstalk between pairs.

Is this cable suitable for outdoor use?

While it is designed for durability, the operating temperature range suggests it is ideal for indoor installations or controlled environments.

How does this cable comply with environmental regulations?

The cable complies with CE, CSA, and UL standards, ensuring it meets safety requirements without using restricted hazardous substances as per RoHS directives.

Approvals

UL2464 Type CM
