Alpha Wire Alpha Essentials LSZH Communication & Control Series Data Cable, 4 Pairs, 8 Cores, 0.22 mm², Screened, 24

RS 제품 번호:: 673-3201
제조사 부품 번호:: 5474L SL005
제조업체:: Alpha Wire

Alpha Wire Alpha Essentials LSZH Communication & Control Series Data Cable, 4 Pairs, 8 Cores, 0.22 mm², Screened, 24

Subtotal (1 reel of 30 metres)*

₩275,156.80

재고있음

추가로 2025년 12월 22일 부터 9 개 단위 배송
추가로 2026년 2월 17일 부터 12 개 단위 배송
추가로 2026년 6월 02일 부터 3 개 단위 배송

더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.

릴당	릴당	미터당*
1 +	₩275,156.80	₩9,172.52

* 참고 가격: 실제 구매가격과 다를 수 있습니다

RS 제품 번호:: 673-3201
제조사 부품 번호:: 5474L SL005
제조업체:: Alpha Wire

참조 문서

제정법과 컴플라이언스

제품 세부 사항

제품 정보를 선택해 유사 제품을 찾기

모두 선택	제품 정보	값
	브랜드	Alpha Wire
	Number of Pairs	4
	Cross Sectional Area	0.22 mm²
	Number of Cores	8
	American Wire Gauge	24 AWG
	Screened/Unscreened	Screened
	Length	30m
	Shield Type	F/UTP
	Sheath Colour	Grey
	Cable Type	Control
	Outer Diameter	6.1mm
	Outer Sheath Material	LSZH
	Cable Shape	Twisted Pair
	Characteristic Impedance	72 Ω
	Standards Met	CE
	Minimum Operating Temperature	-20°C
	Fire Behaviour	IEC 60332-1
	Shielded/Unshielded	Shielded
	Maximum Operating Temperature	+75°C
	Voltage Rating	300 V
	Core Strands	7/0.2 mm
	Series	Alpha Essentials LSZH Communication & Control

	모두 선택
	브랜드 Alpha Wire
	Number of Pairs 4
	Cross Sectional Area 0.22 mm²
	Number of Cores 8
	American Wire Gauge 24 AWG
	Screened/Unscreened Screened
	Length 30m
	Shield Type F/UTP
	Sheath Colour Grey
	Cable Type Control
	Outer Diameter 6.1mm
	Outer Sheath Material LSZH
	Cable Shape Twisted Pair
	Characteristic Impedance 72 Ω
	Standards Met CE
	Minimum Operating Temperature -20°C
	Fire Behaviour IEC 60332-1
	Shielded/Unshielded Shielded
	Maximum Operating Temperature +75°C
	Voltage Rating 300 V
	Core Strands 7/0.2 mm
	Series Alpha Essentials LSZH Communication & Control

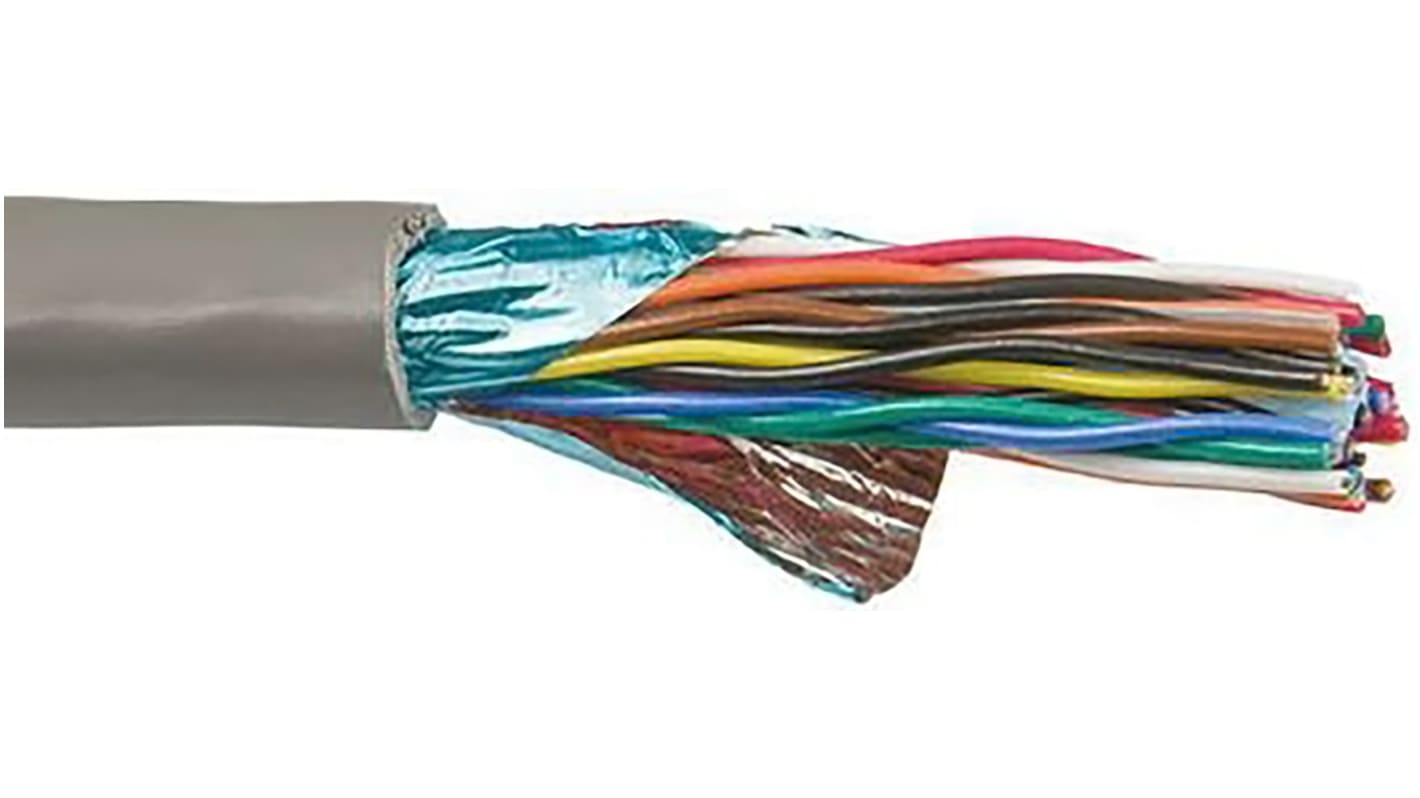

Alpha Wire Data Cable, Twisted Pairs, 8 Cores - 5474L SL005

This high-quality data cable by Alpha Wire is designed with precise technical specifications for optimal performance. With a unique combination of features, including a twisted pair design, LSZH outer sheath, and a high impedance rating, this cable is the ideal choice for various industrial applications. It offers reliable data transmission and meets CE compliance standards.

Features & Benefits

• Twisted pair design for reduced crosstalk and interference
• LSZH outer sheath ensures low smoke and zero halogen emissions
• High impedance data cable for enhanced signal quality
• Screened construction for added protection against external interference
• CE compliant for meeting European quality standards

Applications

• Ideal for use in automation systems
• Suitable for data transmission in electrical and mechanical industries

Can this data cable withstand high temperatures?

Yes, the LSZH outer sheath material ensures durability and can withstand a wide temperature range.

Is this cable suitable for outdoor installations?

The screened design makes it suitable for outdoor use, providing protection against environmental factors.

Will this cable work with standard connectors?

Yes, the high-quality construction of this data cable ensures compatibility with standard connectors for easy installation.
