ROHM VS3V3BC1HST15R Bi-Directional TVS Diode, 70 W SOD-962-2
- RS 제품 번호:
- 244-0141
- 제조사 부품 번호:
- VS3V3BC1HST15R
- 제조업체:
- ROHM

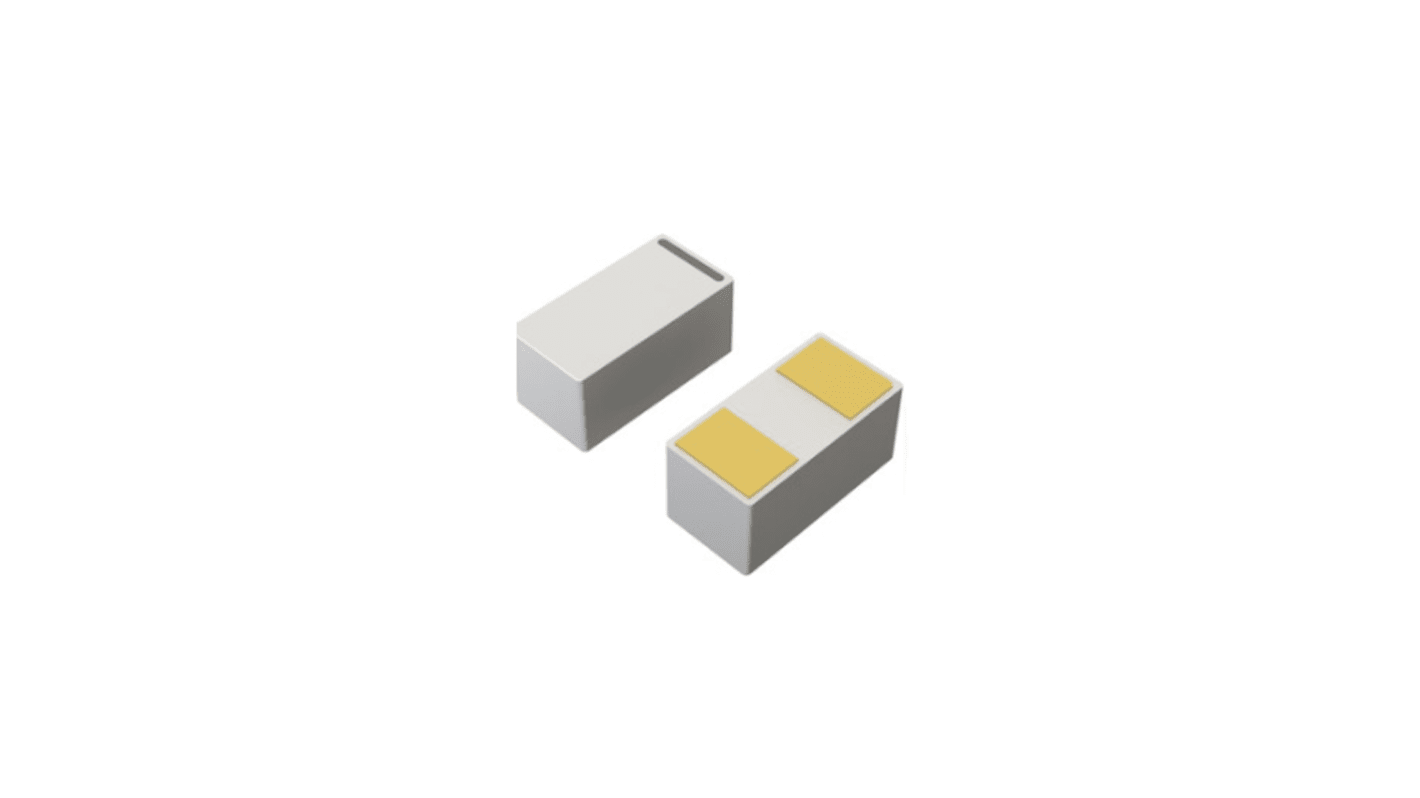

본 이미지는 참조용이오니 재확인이 필요하시면 문의해주세요.
현재 비가용
RS는 이 제품을 더 이상 판매하지 않습니다.
- RS 제품 번호:
- 244-0141
- 제조사 부품 번호:
- VS3V3BC1HST15R
- 제조업체:
- ROHM
사양
참조 문서
제정법과 컴플라이언스
제품 세부 사항
제품 정보를 선택해 유사 제품을 찾기
모두 선택 | 제품 정보 | 값 |
|---|---|---|
| 브랜드 | ROHM | |
| Direction Type | Bi-Directional | |
| Diode Configuration | Single | |
| Product Type | TVS Diode | |
| Minimum Breakdown Voltage Vbr | 4V | |
| Mount Type | Surface | |
| Package Type | SOD-962-2 | |
| Maximum Reverse Stand-off Voltage Vwm | 3.3V | |
| Peak Pulse Power Dissipation Pppm | 70W | |
| ESD Protection | Yes | |
| Minimum Operating Temperature | -55°C | |
| Clamping Voltage VC | 7.3V | |
| Maximum Peak Pulse Current Ippm | 8.2A | |
| Maximum Operating Temperature | 150°C | |
| Standards/Approvals | RoHS, IEC61000-4-2 | |
| Maximum Reverse Leakage Current | 100nA | |
| Automotive Standard | AEC-Q101 | |
| 모두 선택 | ||
|---|---|---|
브랜드 ROHM | ||
Direction Type Bi-Directional | ||
Diode Configuration Single | ||
Product Type TVS Diode | ||
Minimum Breakdown Voltage Vbr 4V | ||
Mount Type Surface | ||
Package Type SOD-962-2 | ||
Maximum Reverse Stand-off Voltage Vwm 3.3V | ||
Peak Pulse Power Dissipation Pppm 70W | ||
ESD Protection Yes | ||
Minimum Operating Temperature -55°C | ||
Clamping Voltage VC 7.3V | ||
Maximum Peak Pulse Current Ippm 8.2A | ||
Maximum Operating Temperature 150°C | ||
Standards/Approvals RoHS, IEC61000-4-2 | ||
Maximum Reverse Leakage Current 100nA | ||
Automotive Standard AEC-Q101 | ||
The Rohm TVS diode is ideal for I/F protection in electronic devices and it comes with 0201(0603) package size. Low clamping voltage and high surge resistance provide superior protection.
High reliability
WL-CSP
Bi-directional ESD protection
ESD protection level ±8kV (IEC61000-4-2 Contact)
Dimension tolerance ±10um
