RS PRO DIN Rail Timer Relay, 1-Contact, 24 V dc 110V ac, 24 V ac, 0.3 s to 30 h, 1-Function, SPDT Switch Configuration
- RS 제품 번호:
- 896-6829
- 제조업체:
- RS PRO
대량 구매 할인 기용 가능
View bulk pricing optionsSubtotal (1 unit)*
₩53,860.00
재고있음
- 203 개 단위 배송 준비 완료
- 추가로 2026년 10월 28일 부터 100 개 단위 배송
더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.
수량 | 한팩당 |
|---|---|
| 1 - 4 | ₩53,860.00 |
| 5 - 24 | ₩51,680.00 |
| 25 + | ₩49,120.00 |
* 참고 가격: 실제 구매가격과 다를 수 있습니다
- RS 제품 번호:
- 896-6829
- 제조업체:
- RS PRO
사양
참조 문서
제정법과 컴플라이언스
제품 세부 사항
제품 정보를 선택해 유사 제품을 찾기
모두 선택 | 제품 정보 | 값 |
|---|---|---|
| 브랜드 | RS PRO | |
| Product Type | Timer Relay | |
| Function | Offset Double Ring End, Valve, Timer, Signal Off Delay | |
| Mount Type | DIN Rail | |
| Time Range | 0.3 s to 30 h | |
| Number of Contacts | 1 | |
| Number of Timer Functions | 1 | |
| Contact Configuration | SPDT | |
| Minimum Operating Temperature | -10°C | |
| Supply DC Voltage | 24 V dc | |
| Supply AC Voltage | 110, 24V ac | |
| Mode | OFF Delay | |
| Maximum Operating Temperature | 55°C | |
| Terminal Type | Screw | |
| Width | 90mm | |
| Length | 17.5mm | |
| Height | 58.5mm | |
| Standards/Approvals | RoHS | |
| Series | RS PRO | |
| 모두 선택 | ||
|---|---|---|
브랜드 RS PRO | ||
Product Type Timer Relay | ||
Function Offset Double Ring End, Valve, Timer, Signal Off Delay | ||
Mount Type DIN Rail | ||
Time Range 0.3 s to 30 h | ||
Number of Contacts 1 | ||
Number of Timer Functions 1 | ||
Contact Configuration SPDT | ||
Minimum Operating Temperature -10°C | ||
Supply DC Voltage 24 V dc | ||
Supply AC Voltage 110, 24V ac | ||
Mode OFF Delay | ||
Maximum Operating Temperature 55°C | ||
Terminal Type Screw | ||
Width 90mm | ||
Length 17.5mm | ||
Height 58.5mm | ||
Standards/Approvals RoHS | ||
Series RS PRO | ||
- COO (Country of Origin):
- IN

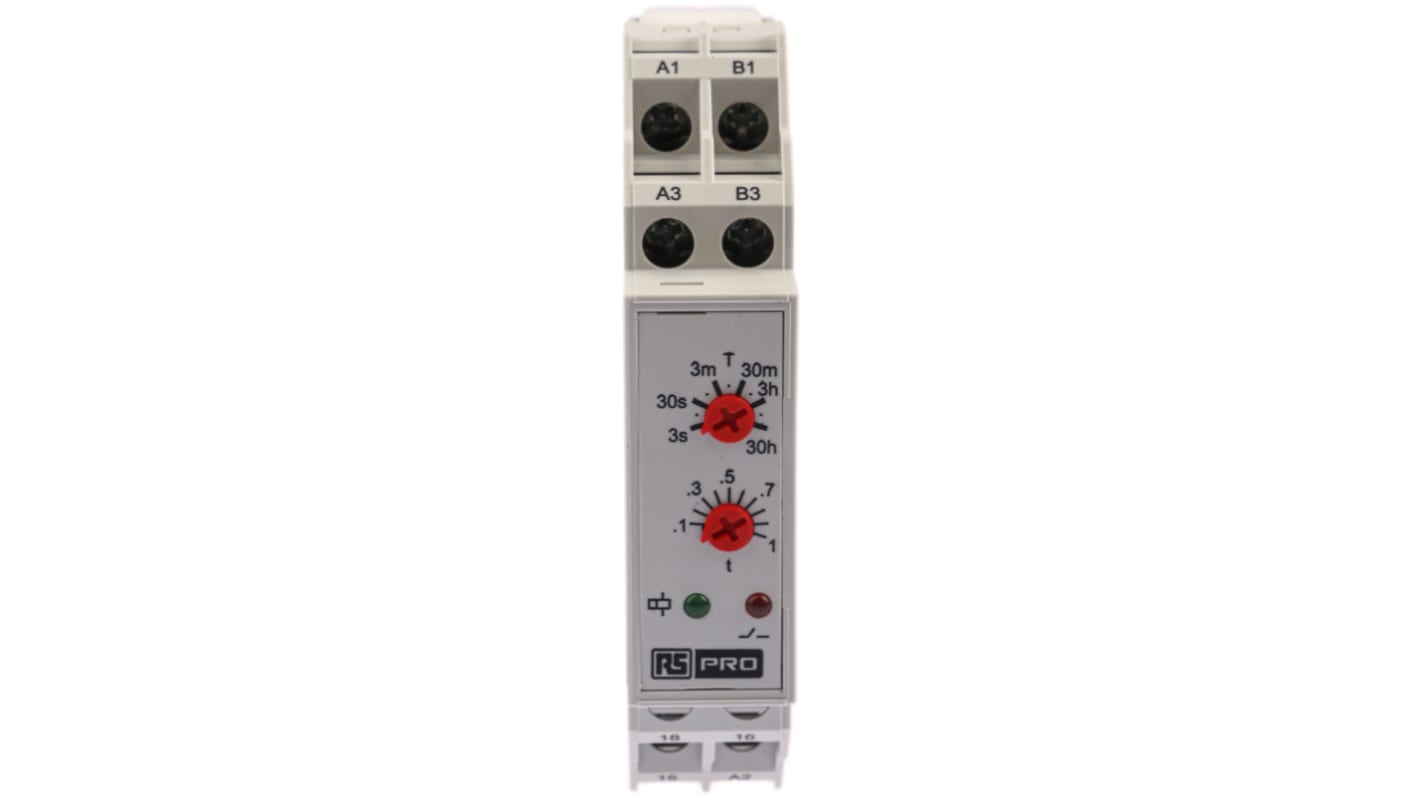

RS PRO Off Delay Time Delay Relay- 17.5 mm
RS PRO Off delay time delay relay is a dual voltage, single function timer that is compact in size and suitable for DIN Rail mounting.
Features and Benefits
• 17.5 mm width
• DIN Rail mounting
• Off delay timing function
• Integrated dual voltage
• LED indications for power and relay status
• Wide supply voltage range
• IP20 (terminals), IP40 (enclosure) protection;• Offers a “one stop solution” for your power management system
• The two LED status indicators indicate status at a glance
• The Green LED is on when power is applied to the input terminals. The Red LED blinks during time-out and is ON when the output is energized
• Colour and appearance designed for high visibility in all environments
• Only 17.5 mm wide making it ideal for tight spaces
• Engineering availability allows for customized relay solutions
RS PRO
RS PRO is our own brand range and brings you a wide range of high-quality, great value products offering you more choice. Trusted by engineers all over the world, every part of every RS PRO product has been rigorously tested against demanding industry standards; they’re only given the RS PRO Seal of Approval if we’re confident of their exceptional quality, which means you can be confident too.
Warning
Remove power before adjusting the settings. If this is not done then the changes are not registered by the unit
