RS PRO DIN Rail Mount Timer Relay, 24V ac, 1-Contact, 0.3 s → 30h, 1-Function, SPDT
- RS 제품 번호:
- 896-6822
- 제조업체:
- RS PRO
- RS 제품 번호:
- 896-6822
- 제조업체:
- RS PRO
제정법과 컴플라이언스
- COO (Country of Origin):
- IN
제품 세부 사항

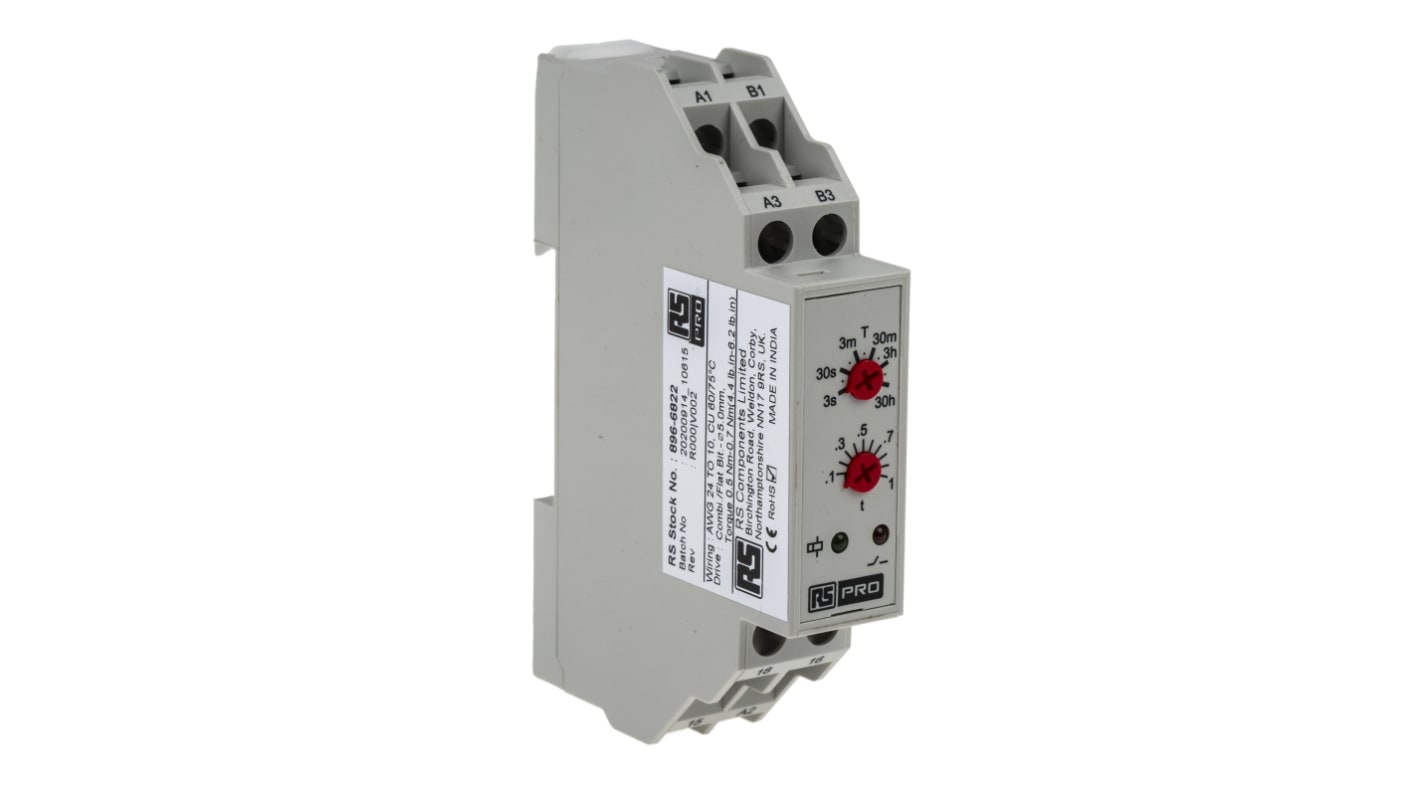

RS PRO Off Delay Time Delay Relay- 17.5 mm
RS PRO Off delay time delay relay is a dual voltage, single function timer that is compact in size and suitable for DIN Rail mounting.
Features and Benefits
• 17.5 mm width
• DIN Rail mounting
• Off delay timing function
• Integrated dual voltage
• LED indications for power and relay status
• Wide supply voltage range
• IP20 (terminals), IP40 (enclosure) protection
• DIN Rail mounting
• Off delay timing function
• Integrated dual voltage
• LED indications for power and relay status
• Wide supply voltage range
• IP20 (terminals), IP40 (enclosure) protection
• Offers a “one stop solution” for your power management system
• The two LED status indicators indicate status at a glance
• The Green LED is on when power is applied to the input terminals. The Red LED blinks during time-out and is ON when the output is energized
• Colour and appearance designed for high visibility in all environments
• Only 17.5 mm wide making it ideal for tight spaces
• Engineering availability allows for customized relay solutions
• The two LED status indicators indicate status at a glance
• The Green LED is on when power is applied to the input terminals. The Red LED blinks during time-out and is ON when the output is energized
• Colour and appearance designed for high visibility in all environments
• Only 17.5 mm wide making it ideal for tight spaces
• Engineering availability allows for customized relay solutions
RS PRO
RS PRO is our own brand range and brings you a wide range of high-quality, great value products offering you more choice. Trusted by engineers all over the world, every part of every RS PRO product has been rigorously tested against demanding industry standards; they’re only given the RS PRO Seal of Approval if we’re confident of their exceptional quality, which means you can be confident too.
Warning
Remove power before adjusting the settings. If this is not done then the changes are not registered by the unit
사양
속성 | 값 |
|---|---|
| Supply Voltage | 24 V ac/dc, 240V ac |
| Mounting Type | DIN Rail |
| Mode of Operation | OFF Delay |
| Time Range | 0.3 s → 30h |
| Number of Contacts | 1 |
| Number of Timer Functions | Single |
| Contact Configuration | SPDT |
| Time Increment | Seconds |
| Maximum Current | 5A |
| Maximum Voltage | 24 V ac/dc, 240V ac |
| Switch Configuration | SPCO |
| Terminal Type | Screw |
| Width | 90mm |
| Power Supply | External |
| Minimum Current | 0.1A |
| Maximum Operating Temperature | +55°C |
| Length | 17.5mm |
| Depth | 58.5mm |
| Time Delay | 100ms |
| Minimum Operating Temperature | -10°C |
