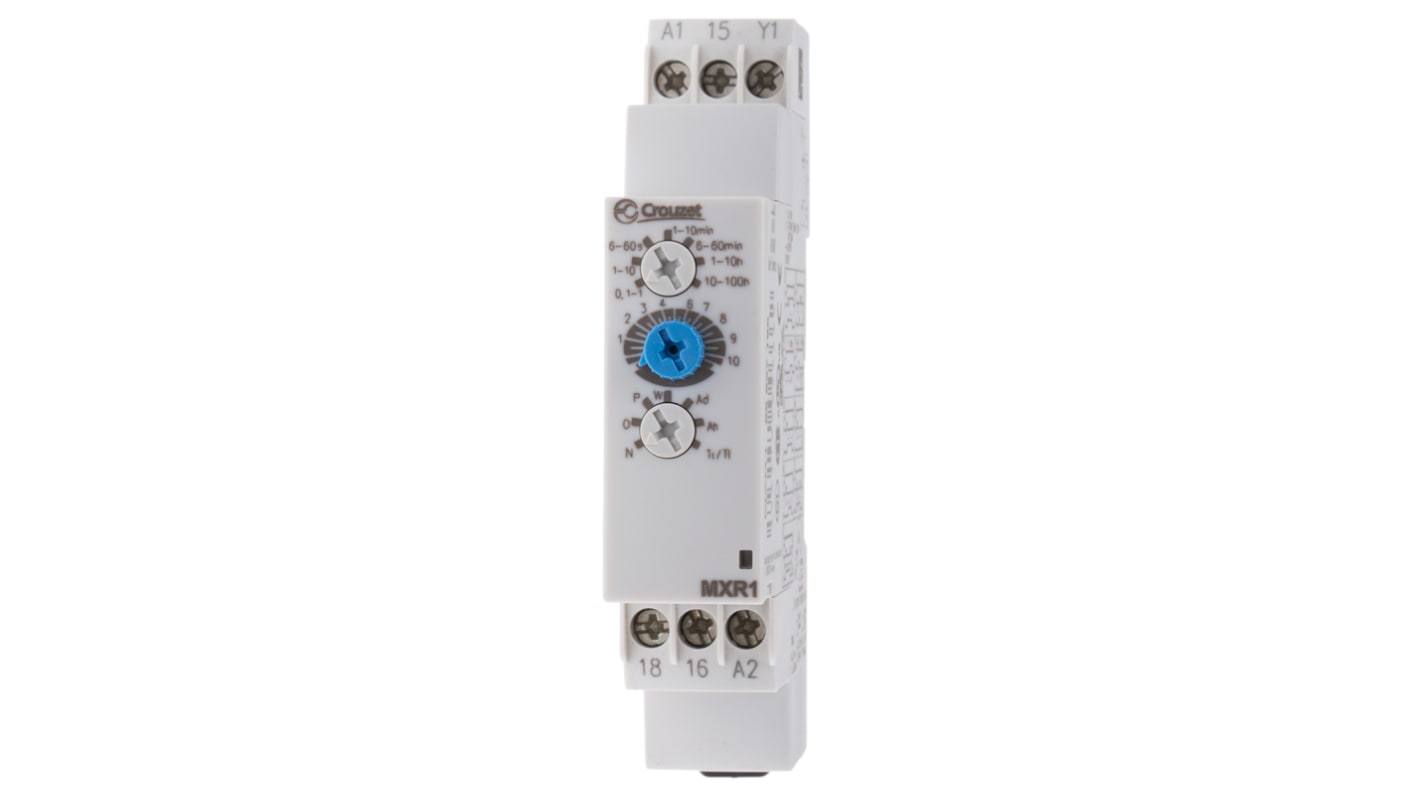

Crouzet DIN Rail Mount Timer Relay, 24 → 240 V ac, 24V dc, 1-Contact, 0.1 s → 100h, SPDT
- RS 제품 번호:
- 774-0332
- Distrelec 제품 번호:
- 304-00-059
- 제조사 부품 번호:
- 88827185
- 제조업체:
- Crouzet
대량 구매 할인 기용 가능
Subtotal (1 unit)*
₩141,733.20
재고있음
- 77 개 단위 배송 준비 완료
더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.
수량 | 한팩당 |
|---|---|
| 1 - 24 | ₩141,733.20 |
| 25 - 49 | ₩137,766.40 |
| 50 + | ₩132,107.60 |
* 참고 가격: 실제 구매가격과 다를 수 있습니다
- RS 제품 번호:
- 774-0332
- Distrelec 제품 번호:
- 304-00-059
- 제조사 부품 번호:
- 88827185
- 제조업체:
- Crouzet
사양
참조 문서
제정법과 컴플라이언스
제품 세부 사항
제품 정보를 선택해 유사 제품을 찾기
모두 선택 | 제품 정보 | 값 |
|---|---|---|
| 브랜드 | Crouzet | |
| Supply Voltage | 24 → 240 V ac, 24V dc | |
| Mounting Type | DIN Rail | |
| Mode of Operation | Flip Flop, Impulse Counter, ON Delay, Safe Guard, Timed Impulse Relay | |
| Time Range | 0.1 s → 100h | |
| Number of Contacts | 1 | |
| Number of Timer Functions | Multi Function | |
| Contact Configuration | SPDT | |
| Time Increment | Hours, Minutes, Seconds | |
| Maximum Current | 8A | |
| Switch Configuration | SPDT | |
| Terminal Type | Screw | |
| Power Supply | External | |
| Width | 17.5mm | |
| Length | 90mm | |
| Maximum Operating Temperature | +60°C | |
| Minimum Current | 10mA | |
| Depth | 60mm | |
| Contact Material | Silver Nickel | |
| Minimum Operating Temperature | -20°C | |
| Time Delay | 30ms | |
| 모두 선택 | ||
|---|---|---|
브랜드 Crouzet | ||
Supply Voltage 24 → 240 V ac, 24V dc | ||
Mounting Type DIN Rail | ||
Mode of Operation Flip Flop, Impulse Counter, ON Delay, Safe Guard, Timed Impulse Relay | ||
Time Range 0.1 s → 100h | ||
Number of Contacts 1 | ||
Number of Timer Functions Multi Function | ||
Contact Configuration SPDT | ||
Time Increment Hours, Minutes, Seconds | ||
Maximum Current 8A | ||
Switch Configuration SPDT | ||
Terminal Type Screw | ||
Power Supply External | ||
Width 17.5mm | ||
Length 90mm | ||
Maximum Operating Temperature +60°C | ||
Minimum Current 10mA | ||
Depth 60mm | ||
Contact Material Silver Nickel | ||
Minimum Operating Temperature -20°C | ||
Time Delay 30ms | ||
- COO (Country of Origin):
- ID
Chronos 2 Multi function Timers
Chronos 2 time delay relays from Crouzet are supplied with Relay or Solid-State output and have the option of connecting an external power supply to the control input.
Features and Benefits
• Multi function or mono-function
• Multi-range
• Multi-voltage
• Screw or spring terminals
• LED status indicator (relay version)
• Possibility of external load connection in parallel to the control input
• Three wire PNP sensor compatible
• Multi-range
• Multi-voltage
• Screw or spring terminals
• LED status indicator (relay version)
• Possibility of external load connection in parallel to the control input
• Three wire PNP sensor compatible
Crouzet Multi-Function Timer Relay
The Crouzet multi-function timer relay is a compact device with a solid-state output and an option of connecting an external power supply to the control input. It performs the function of providing a delay in flip flop, impulse counter, on delay, safeguard and timed impulse relay form ranging between 0.1 second and 100 hours.
Features and Benefits
Multiple timing ranging between 1 second to 10 second, 10 second to 1 minute, 1 minute to 10 minutes, 10 minutes to 1 hour, 1 hour to 10 hours, 10 hours to 100 hours
1 changeover relay output of 8A
Multi-voltage supply options ranging between 24VAC to 240VAC and 24VDC
Screw or spring terminals
SPDT contact configuration
LED status indicator (relay version)
Possibility of external load connection in parallel to the control input
Three wire PNP sensor compatible
Self-extinguishing case
AgNi contact material
1 changeover relay output of 8A
Multi-voltage supply options ranging between 24VAC to 240VAC and 24VDC
Screw or spring terminals
SPDT contact configuration
LED status indicator (relay version)
Possibility of external load connection in parallel to the control input
Three wire PNP sensor compatible
Self-extinguishing case
AgNi contact material
Applications
Textiles
Chemical industries
Mining
Irrigation
Raw material handling
Food and beverages
Industrial process control
Chemical industries
Mining
Irrigation
Raw material handling
Food and beverages
Industrial process control
Certifications
IP20 rated
IP40 rated
IP50 rated
IEC/EN 61812-1
IEC/EN 61000-6-1
IEC/EN 61000-6-2
IEC/EN 61000-6-3
IEC/EN 61000-6-4
CE certified
UL approved
cUL certified
CSA certified
GL certified
IP40 rated
IP50 rated
IEC/EN 61812-1
IEC/EN 61000-6-1
IEC/EN 61000-6-2
IEC/EN 61000-6-3
IEC/EN 61000-6-4
CE certified
UL approved
cUL certified
CSA certified
GL certified
