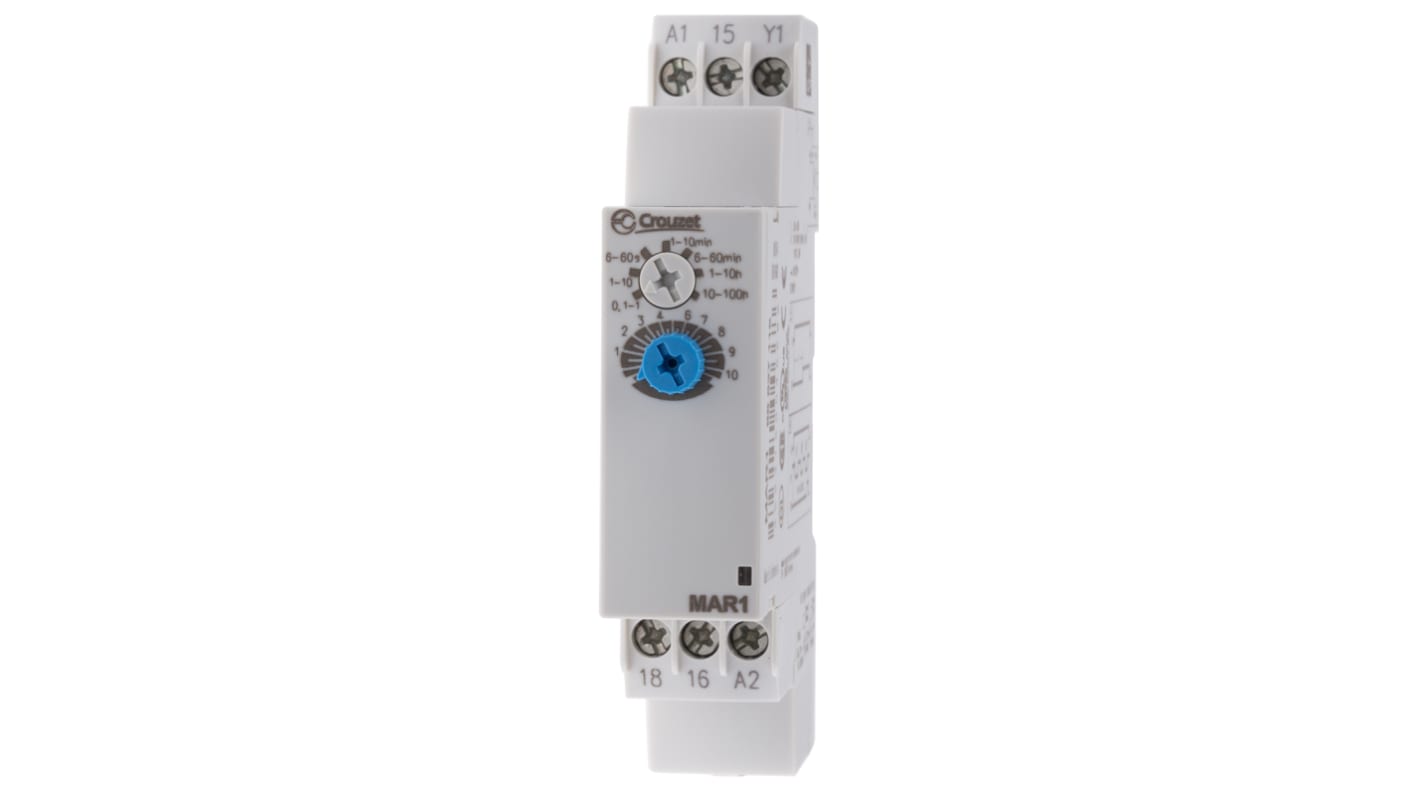

Crouzet MAR1 Series DIN Rail Timer Relay, 1-Contact, 24 V dc 24 to 240 V ac, 0.1 s to 100 h, 1-Function, SPDT Switch
- RS 제품 번호:
- 774-0308
- Distrelec 제품 번호:
- 137-53-621
- 제조사 부품 번호:
- 88827115
- 제조업체:
- Crouzet
대량 구매 할인 기용 가능
Subtotal (1 unit)*
₩103,042.80
재고있음
- 추가로 2026년 3월 23일 부터 292 개 단위 배송
더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.
수량 | 한팩당 |
|---|---|
| 1 - 24 | ₩103,042.80 |
| 25 - 49 | ₩100,486.00 |
| 50 + | ₩98,869.20 |
* 참고 가격: 실제 구매가격과 다를 수 있습니다
- RS 제품 번호:
- 774-0308
- Distrelec 제품 번호:
- 137-53-621
- 제조사 부품 번호:
- 88827115
- 제조업체:
- Crouzet
사양
참조 문서
제정법과 컴플라이언스
제품 세부 사항
제품 정보를 선택해 유사 제품을 찾기
모두 선택 | 제품 정보 | 값 |
|---|---|---|
| 브랜드 | Crouzet | |
| Product Type | Timer Relay | |
| Mount Type | DIN Rail | |
| Time Range | 0.1 s to 100 h | |
| Number of Contacts | 1 | |
| Number of Timer Functions | 1 | |
| Switching Voltage | 250 V ac | |
| Contact Configuration | SPDT | |
| IP Rating | IP20 | |
| Supply AC Voltage | 24 to 240 V ac | |
| Contact Current | 8A | |
| Minimum Operating Temperature | -20°C | |
| Supply DC Voltage | 24 V dc | |
| Terminal Type | Screw | |
| Maximum Operating Temperature | 60°C | |
| Height | 60mm | |
| Length | 90mm | |
| Width | 17.5 mm | |
| Standards/Approvals | IEC/EN 61812-1, IEC/EN 61000-6-3, IEC/EN 61000-6-4, IEC/EN 61000-6-2, GL, CSA, UL, CE, cUL, IEC/EN 61000-6-1 | |
| Series | MAR1 | |
| 모두 선택 | ||
|---|---|---|
브랜드 Crouzet | ||
Product Type Timer Relay | ||
Mount Type DIN Rail | ||
Time Range 0.1 s to 100 h | ||
Number of Contacts 1 | ||
Number of Timer Functions 1 | ||
Switching Voltage 250 V ac | ||
Contact Configuration SPDT | ||
IP Rating IP20 | ||
Supply AC Voltage 24 to 240 V ac | ||
Contact Current 8A | ||
Minimum Operating Temperature -20°C | ||
Supply DC Voltage 24 V dc | ||
Terminal Type Screw | ||
Maximum Operating Temperature 60°C | ||
Height 60mm | ||
Length 90mm | ||
Width 17.5 mm | ||
Standards/Approvals IEC/EN 61812-1, IEC/EN 61000-6-3, IEC/EN 61000-6-4, IEC/EN 61000-6-2, GL, CSA, UL, CE, cUL, IEC/EN 61000-6-1 | ||
Series MAR1 | ||
- COO (Country of Origin):
- ID
Crouzet Single-Function Timer Relay
The Crouzet single-function timer relay is a compact device with a solid-state output and an option of connecting an external power supply to the control input. It performs the function of providing one-shot delay ranging between 0.1 second and 100 hours.
Features and Benefits
Mono-function
Multiple timing ranging between1 second to 10 seconds, 10 second to 1 minute, 1 minute to 10 minutes, 10 minutes to 1 hour, 1 hour to 10 hours, 10 hours to 100 hours
1 changeover relay output of 8A
SPDT contact configuration
Multi-voltage supply options ranging between 24VAC to 240VAC and 24VDC
Screw or spring terminals
LED status indicator (relay version)
Possibility of external load connection in parallel to the control input
Three wire PNP sensor compatible
Self-extinguishing case
AgNi contact material
Applications
Textiles
Chemical industry
Mining
Irrigation
Raw material handling
Food and beverages
Industrial process control
Certifications
IP20 rated
IP40 rated
IP50 rated
IEC/EN 61812-1
IEC/EN 61000-6-1
IEC/EN 61000-6-2
IEC/EN 61000-6-3
IEC/EN 61000-6-4
CE certified
UL approved
cUL certified
CSA certified
GL certified
