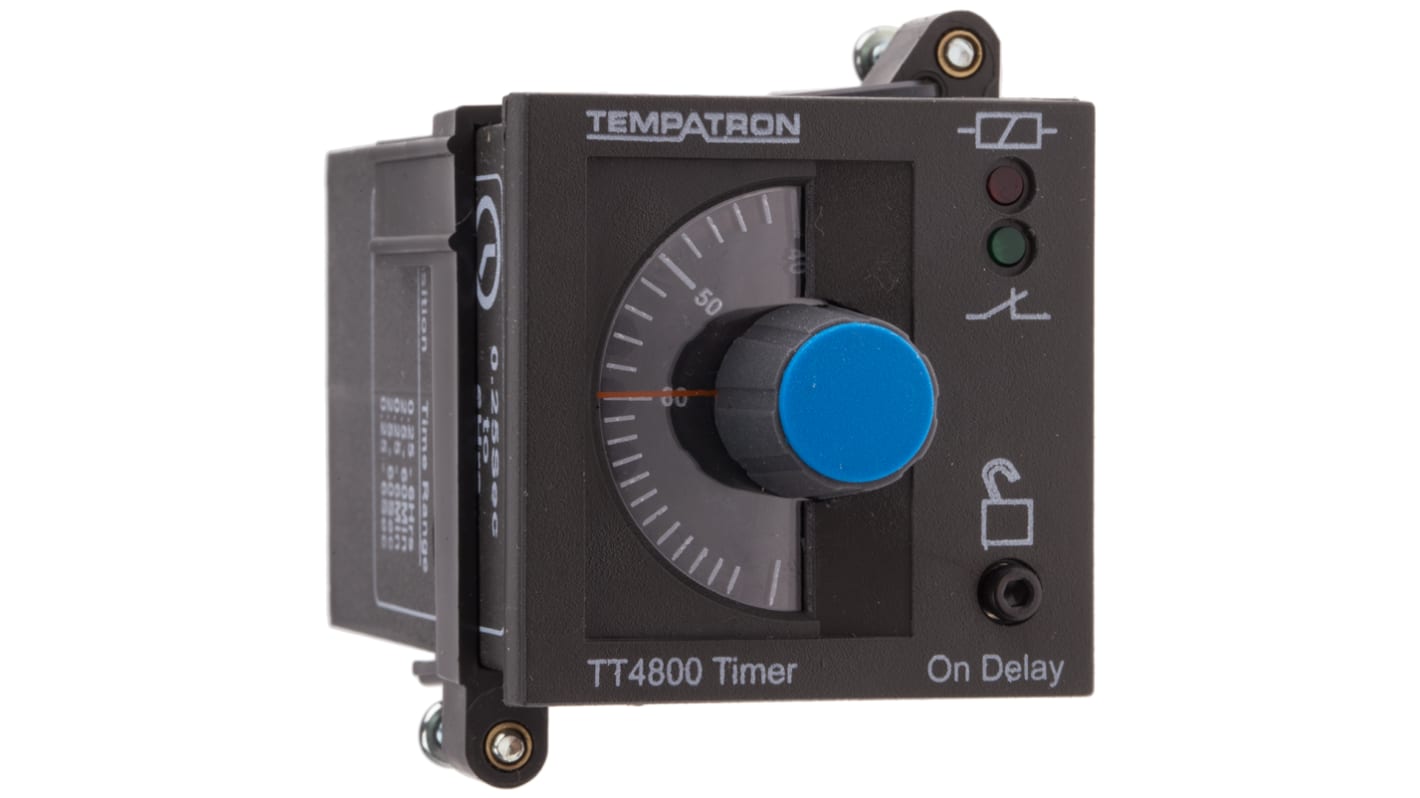

Tempatron TT4801 Series DIN Rail Timer Relay, 2-Contact 230V ac, 6s to 6 h, 1-Function, DPDT Switch Configuration
- RS 제품 번호:
- 217-1340
- 제조업체:
- Tempatron
대량 구매 할인 기용 가능
Subtotal (1 unit)*
₩149,350.50
일시적 품절
- 2026년 6월 16일 부터 10 개 단위 배송
더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.
수량 | 한팩당 |
|---|---|
| 1 - 24 | ₩149,350.50 |
| 25 - 49 | ₩143,383.50 |
| 50 + | ₩137,397.00 |
* 참고 가격: 실제 구매가격과 다를 수 있습니다
- RS 제품 번호:
- 217-1340
- 제조업체:
- Tempatron
사양
참조 문서
제정법과 컴플라이언스
제품 세부 사항
제품 정보를 선택해 유사 제품을 찾기
모두 선택 | 제품 정보 | 값 |
|---|---|---|
| 브랜드 | Tempatron | |
| Product Type | Timer Relay | |
| Mount Type | DIN Rail | |
| Function | ON Delay | |
| Time Range | 6s to 6 h | |
| Number of Contacts | 2 | |
| Number of Timer Functions | 1 | |
| Contact Configuration | DPDT | |
| IP Rating | IP40 | |
| Minimum Operating Temperature | -10°C | |
| Contact Current | 5A | |
| Supply AC Voltage | 230V ac | |
| Timing Adjustment | Knob | |
| Maximum Operating Temperature | 60°C | |
| Terminal Type | 11-Pin | |
| Width | 48mm | |
| Standards/Approvals | EN/IEC | |
| Length | 48mm | |
| Height | 106mm | |
| Series | TT4801 | |
| 모두 선택 | ||
|---|---|---|
브랜드 Tempatron | ||
Product Type Timer Relay | ||
Mount Type DIN Rail | ||
Function ON Delay | ||
Time Range 6s to 6 h | ||
Number of Contacts 2 | ||
Number of Timer Functions 1 | ||
Contact Configuration DPDT | ||
IP Rating IP40 | ||
Minimum Operating Temperature -10°C | ||
Contact Current 5A | ||
Supply AC Voltage 230V ac | ||
Timing Adjustment Knob | ||
Maximum Operating Temperature 60°C | ||
Terminal Type 11-Pin | ||
Width 48mm | ||
Standards/Approvals EN/IEC | ||
Length 48mm | ||
Height 106mm | ||
Series TT4801 | ||
- COO (Country of Origin):
- GB
Electronic
Function 111
11 pin
Time range selectable by screwdriver from a rotary switch on the side of the module
Lockable dial to prevent tampering
Suitable for plug-in or panel mounting applications
AgCdo contact material
45 x 45mm panel cutout
Standards
EN 50081-1, EN 50082-1, EN 61010-1.
