Tempatron TT33 Series Panel Timer Relay, 2-Contact, 24 V dc 24V ac, 0.01 to 99.99 s, Multifunction-Function, SPST Switch
- RS 제품 번호:
- 217-6248
- 제조사 부품 번호:
- TT33ML
- 제조업체:
- Tempatron
Subtotal (1 unit)*
₩326,742.00
재고있음
- 6 개 단위 배송 준비 완료
- 추가로 2026년 6월 02일 부터 10 개 단위 배송
더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.
수량 | 한팩당 |
|---|---|
| 1 + | ₩326,742.00 |
* 참고 가격: 실제 구매가격과 다를 수 있습니다
- RS 제품 번호:
- 217-6248
- 제조사 부품 번호:
- TT33ML
- 제조업체:
- Tempatron
사양
참조 문서
제정법과 컴플라이언스
제품 세부 사항
제품 정보를 선택해 유사 제품을 찾기
모두 선택 | 제품 정보 | 값 |
|---|---|---|
| 브랜드 | Tempatron | |
| Product Type | Timer Relay | |
| Function | Multifunction | |
| Mount Type | Panel | |
| Time Range | 0.01 to 99.99 s | |
| Number of Contacts | 2 | |
| Number of Timer Functions | Multifunction | |
| Contact Configuration | SPST | |
| IP Rating | IP65 | |
| Supply DC Voltage | 24 V dc | |
| Supply AC Voltage | 24V ac | |
| Minimum Operating Temperature | 0°C | |
| Terminal Type | Plug-In | |
| Maximum Operating Temperature | 50°C | |
| Width | 78mm | |
| Standards/Approvals | RoHS | |
| Height | 35mm | |
| Length | 64mm | |
| Series | TT33 | |
| 모두 선택 | ||
|---|---|---|
브랜드 Tempatron | ||
Product Type Timer Relay | ||
Function Multifunction | ||
Mount Type Panel | ||
Time Range 0.01 to 99.99 s | ||
Number of Contacts 2 | ||
Number of Timer Functions Multifunction | ||
Contact Configuration SPST | ||
IP Rating IP65 | ||
Supply DC Voltage 24 V dc | ||
Supply AC Voltage 24V ac | ||
Minimum Operating Temperature 0°C | ||
Terminal Type Plug-In | ||
Maximum Operating Temperature 50°C | ||
Width 78mm | ||
Standards/Approvals RoHS | ||
Height 35mm | ||
Length 64mm | ||
Series TT33 | ||
- COO (Country of Origin):
- GB

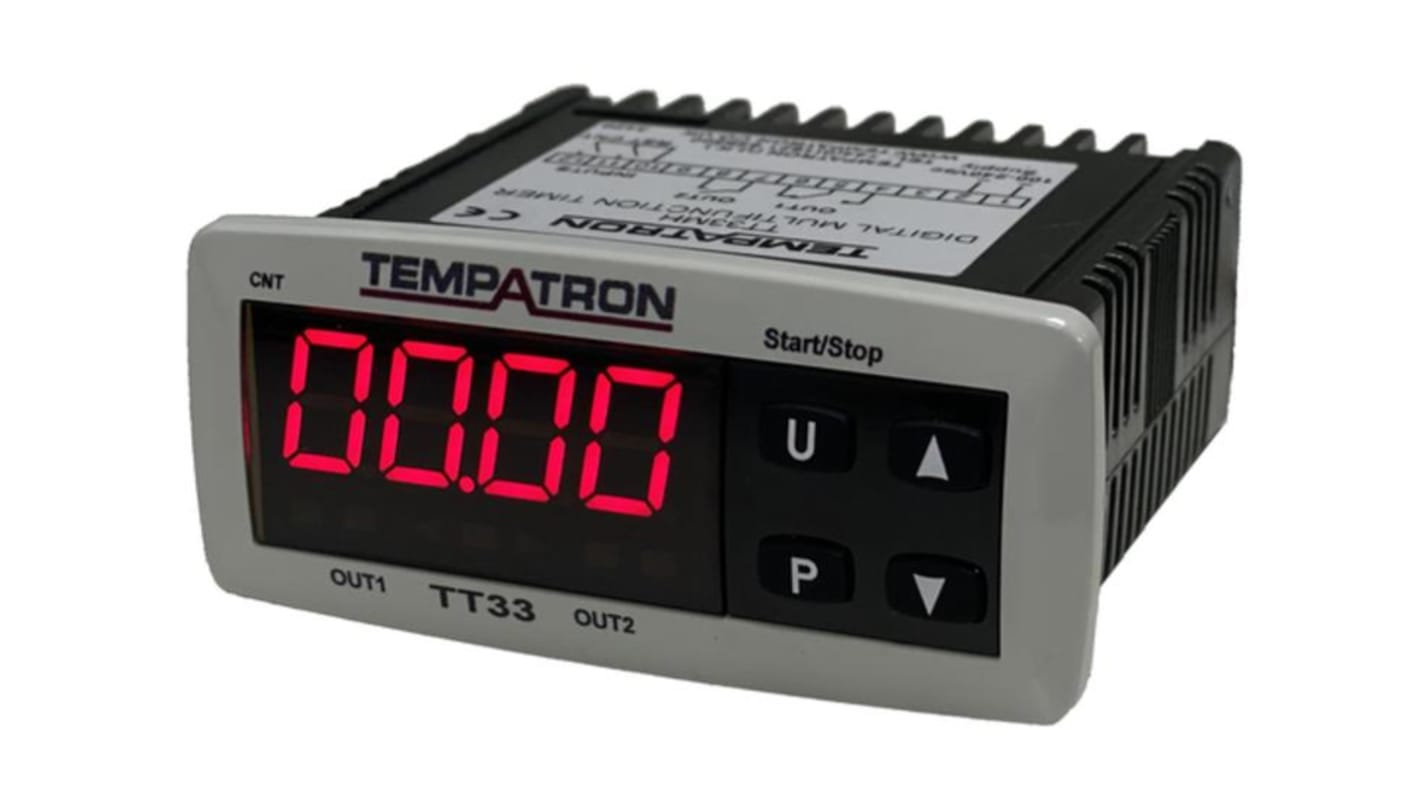

Tempatron Multi Function Digital Timer, Panel Mounting, 24Vac/dc
The Tempatron TT33ML dual 4 digit digital timer is a multifunction multi-time range digital timer suitable for controlling operation of equipment, machinery, systems or processes in a wide range of industrial applications.
Programmable start and reset
IP65 enclosure code
Security passcode
Panel mounting
